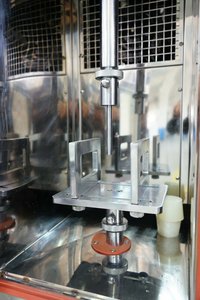

High Low Temperature Tensile Strength Tester
High Low Temperature Tensile Strength Tester High Low Temperature Tensile Strength Tester High Low Temperature Tensile Strength Tester High Low Temperature Tensile Strength Tester

High Low Temperature Tensile Strength Tester

6800.00 - 16800.00 USD ($)

Product Details:

X

Price And Quantity

  • 6800.00 - 16800.00 USD ($)
  • 1 Set

Trade Information

  • Per Month
  • 1 Week

Product Description

Description

High low temperature tensile strength tester leathertape film  and other kind of materials with high low temperature environment






This tensile test equipment Applicationstensile testing




  • Load under defined deformation Test load under defined deformation of tested sample
  • Software can issue report with results for max force elongation tensile strength peel strength tear strength compression strength etc
  • This machine can do different test as per customer requirement such as peel test tear test compression test bend test with different clamps



Design Standardinculding but not limited to




  • ASTM D882 ASTM D 638  ISO 52712
  • Bend Test ISO178  ASTM D 790
  • Tear Test ASTM D 624
  • Peel Test  ASTM D 3330
  • Compression Test  ASTM D 659
  • others





Specification:
Tensile Parts Standard Features:



Item


Description


Max. Force

50KN

Load cell

Germany brand load cell for high accuracy

Control system

PC with windows 7 system

Motor

Panasonic servo motor w DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Stoke

1300mm including fixture

Load cell Resolution

1 100,000

Load Precision

within  0.5%

Test speed

0.01 300mm/min (adjustable)

Software

TM 2101

Curves display

Load  elongation, Elongation time, Time elongation, Stress strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N mm, N mm2) etc

Safety features

E Stop

Over load protection

Upper and lower limit switches

Load sensor with automatic retreat


HD609604

2000 kg 20KNMax Force   for Tape rubber plastic textile waterproof material wire and cable net rope wire metal rod fiber metal chain metal plate and other materials

HD611

10T 100KN Max Force  for  waterproof material wire and cable net rope wire metal rod fiber metal chain metal plate and other materials

HD615

5000 kg 50KN Max Force  for textile waterproof material wire and cable net rope wire metal rod fiber metal chain metal plate and other materials

HDB616

20KN1000KN Hydraulic load range  for waterproof material wire and cable net rope wire metal rod fiber metal chain metal plate and other materials



Tensile  Software

software is designed purposely for computer controlled electronic universal testing machine  used for tension compress bend shear tearing and peel test With the personal computer and interface plate it could collect save process and print test result Further it can calculate multiple parameters ie maximum force yield strength average peel force maximum deformation yielding point and elastic modulus this system is featured in curve process multisensor support image interface flexible data process and powerful system function




Chamber Standard Features

Specification


Internal dimension

(W*D*H) 400*700*400mm

Temperature range

-40 +150

Temperature Accuracy

1

Humidity accuracy

3 R.H

Cooling speed

1/min in average (without loading)

Heating speed

2/min in average (without loading)

Internal chamber material

SUS 304 stainless steel, mirror finished

External chamber material

Stainless steel with paint spray

Cooling method

Air cooling

Controller

Korea TEMI 880 controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material

50mm high density rigid Polyurethane foam

Heater

Explosion proof type SUS 304 stainless steel fins radiator pipe heater

Compressor

France Tecumseh compressor

Lighting

Heat resistance

Temperature sensor

PT 100 dry and wet bulb sensor

Observation window

Tempered glass

Testing hole

Diameter 50mm, for cable outing

Safety protection device

Protection for leakage

Over temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage




Applicationsenvironment testing


  • To simulate test environment with different temperature
  • Cyclic test includes climatic conditions holding test coolingoff test heatingup test
  • Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
  • Uncover test unit weakness in a shortterm test with accelerated time effect
  • Chamber Design Features

High performance and quiet operation 68 dBA
  • Spacesaving designed for flush installation to wall
  •  Full thermal break around doorframe
  • One 50mm diameter cable port  left with flexible silicone plug
  •  Direct water supply connection for continuous operation
  •  Accurate wetdrybulb humidity measurement system for easy maintain


Programmable Controller


  • 1PIC controller for test chamber
  • Step types include ramp soak jump autostart and end
  • RS232 interface to connect computer for output
