Shoes Test Equipment

• Equipment Type

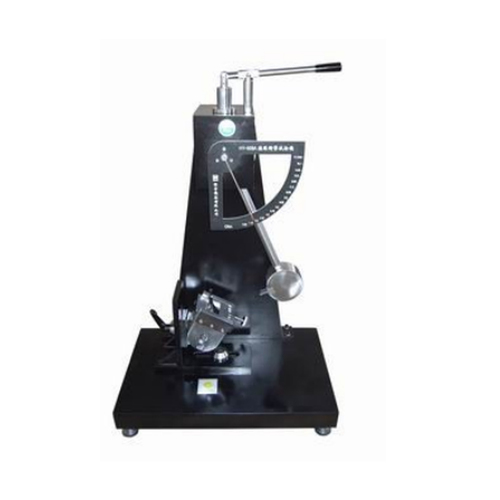

• Shoe Heel Impact Test Machine

• Accuracy
• 1 cycle

• Application
• Shoe heel impact resistance test

• Automation Grade
• Semi-automatic

• Capacity
• Up to mens size 14

• Control Mode
• Digital control, touch panel

• Display Type
• Digital LCD

• Features
• Auto stop, emergency shutoff, data memory

• Frequency
• 50 Hz

• Gas Pressure
• 0.5 MPa (Max)

• Hardness
• Impact head 58 HRC

• Humidity
• 20% ~ 80% RH

• Interface Type
• RS232

• Machine Weight
• 85 kg

• Max Height
• 450 mm

• Measuring Range
• 0-50 mm stroke

• Mounting Type
• Floor standing

• Number of Specimens
• 1

• Operating Voltage
• 230V AC

• Port Size
• 6 mm pneumatic

• Power Supply
• 230V AC, 50Hz

• Resolution
• 0.1 mm

• Response Time
• Instantaneous

• Specimen Size
• Standard shoe heel sizes

• Temperature
• Room temp. 10C ~ 35C

• Test Range
• 0 ~ 99,999 times

• Test Speed
• 30 times/minute

• Test Stroke
• 50 mm

• Test Width
• Up to 120 mm

• Usage
• Laboratory, Footwear manufacturing

• Equipment Type
• Bench-top Mechanical Tester

• Accuracy
• 1% F.S.

• Application
• Footwear Sole and Upper Peeling Strength Testing

• Automation Grade
• Semi-automatic

• Capacity
• 500 N

• Control Mode
• Manual & Digital Control

• Display Type
• Digital LCD Display

• Features
• Compact Structure, High Precision, Adjustable Speed, Simple Operation

• Frequency
• 50 Hz

• Gas Pressure
• 0.6 MPa 0.8 MPa

• Hardness
• Applicable to wide variety of shoe materials

• Humidity
• <85% RH

• Interface Type
• RS232 Data Output

• Machine Weight
• 80 kg

• Max Height
• 450 mm

• Measuring Range
• 0 500 N

• Mounting Type
• Table Top

• Number of Specimens
• 2 (Simultaneous Testing)

• Operating Voltage
• 220V

• Port Size
• 1/4 inch

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1 N

• Response Time
• <2 seconds

• Specimen Size
• 180 mm 30 mm

• Temperature
• 10C 40C

• Test Range
• 0 500 N

• Test Speed
• 100 mm/min (Adjustable)

• Test Stroke
• 100 mm

• Test Width
• 30 mm

• Usage
• Shoe and Footwear Lab Testing

• Equipment Type
• Shoe Flexing Machine

• Accuracy
• 1 cycle

• Application
• Footwear sole and upper flex resistance testing

• Automation Grade
• Semi-automatic

• Capacity
• Simultaneous flex testing of 4 samples

• Control Mode
• Digital Timer Control

• Display Type
• Digital LCD

• Features
• Automatic stop, digital cycle counter, easy specimen mounting, safety guard

• Frequency
• 50 Hz

• Gas Pressure
• 0.6 MPa

• Hardness
• N/A (not directly applicable for machine)

• Humidity
• 30% - 80% RH (non-condensing)

• Interface Type
• Panel control system

• Machine Weight
• Approx. 70 kg

• Max Height
• 350 mm

• Measuring Range
• 0 - 50 mm stroke

• Mounting Type
• Table-top

• Number of Specimens
• 2 pairs (4 samples)

• Operating Voltage
• 220V AC

• Port Size
• 6 mm air inlet

• Power Supply
• 220V AC, 50Hz

• Resolution
• 1 cycle

• Response Time
• <1 second

• Specimen Size
• Standard adult shoe size (customizable)

• Temperature
• 10C - 40C

• Test Range
• 1 - 999,999 cycles

• Test Speed
• 60-300 cycles/min (adjustable)

• Test Stroke
• 25-50 mm (adjustable)

• Test Width
• Standard 60 mm (customizable)

• Usage
• Footwear material flex durability testing

• Equipment Type
• Compression and puncture resistance tester

• Accuracy
• 0.5%

• Application
• Safety footwear toe and sole compression and puncture tests

• Automation Grade
• Semi-automatic

• Capacity
• 20 kN

• Control Mode
• Digital touch screen panel

• Display Type
• Digital LCD

• Features
• Automatic data record, Overload protection, Emergency stop

• Frequency
• 50 Hz

• Gas Pressure
• 0.5-0.7 MPa

• Hardness
• Test pin hardness 602 HRC

• Humidity
• 40%-85% RH

• Interface Type
• RS232/USB

• Machine Weight
• Approx. 120 kg

• Max Height
• 600 mm

• Measuring Range
• 0-20000 N

• Mounting Type
• Floor mounted

• Number of Specimens
• 1 at a time

• Operating Voltage
• 220 V

• Port Size
• 1/4 inch

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.01 N

• Response Time
• <1 s

• Specimen Size
• Shoe size range 32-48

• Temperature
• 5C to 35C

• Test Range
• 0-20 kN

• Test Speed
• 10-50 mm/min (adjustable)

• Test Stroke
• Up to 50 mm

• Test Width
• 150 mm

• Usage
• Footwear testing laboratory

• Equipment Type
• Outsole Flexing Tester

• Accuracy
• 1 cycle

• Application
• Flex endurance test of shoe outsoles

• Automation Grade
• Semi-automatic

• Capacity
• 2 test stations

• Control Mode
• Digital / Manual

• Display Type
• Digital LCD

• Features
• Adjustable stroke & speed, safety cover, auto-stop

• Frequency
• Single-phase, 50Hz

• Gas Pressure
• 0.50.7 MPa

• Hardness
• Applicable for soft and hard outsoles

• Humidity
• 20%~80% RH (non-condensing)

• Interface Type
• Push button / Digital input

• Machine Weight
• Approx. 100 kg

• Max Height
• 500 mm

• Measuring Range
• 0~999,999 cycles

• Mounting Type
• Free-standing floor model

• Number of Specimens
• 2~4 pieces

• Operating Voltage
• 220V

• Port Size
• 1/4 inch air inlet

• Power Supply
• 220V AC, 50Hz

• Resolution
• 1 cycle

• Response Time
• < 1 second

• Specimen Size
• Length 100250 mm

• Temperature
• Room temperature (10~35C)

• Test Range
• Up to 80 mm flex angle

• Test Speed
• 60~300 cycles/min (adjustable)

• Test Stroke
• 20~50 mm (adjustable)

• Test Width
• Up to 120 mm

• Usage
• Footwear laboratory testing

• Equipment Type
• Leather Fading Tester

• Accuracy
• 1 cycle

• Application
• Leather colour fastness test, surface fading evaluation

• Automation Grade
• Semi-automatic

• Capacity
• 4 stations

• Control Mode
• Digital controller

• Display Type
• Digital LCD

• Features
• Programmable timer, cyclic test, automatic stop

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.51.0 MPa

• Hardness
• Shore A 4550

• Humidity
• 2080% RH

• Interface Type
• Standard

• Machine Weight
• 25 kg

• Max Height
• 400 mm

• Measuring Range
• 15 Grade

• Mounting Type
• Benchtop

• Number of Specimens
• 4

• Operating Voltage
• 220V

• Port Size
• 6 mm

• Power Supply
• 220V AC, 50Hz

• Resolution
• 1 cycle

• Response Time
• Immediate

• Specimen Size
• 30 mm

• Temperature
• 1540C

• Test Range
• Up to 99999 cycles

• Test Speed
• 30 cycles/min

• Test Stroke
• 35 mm

• Test Width
• 60 mm

• Usage
• Testing leather fading and colour fastness

• Equipment Type
• Fatigue Resistance Tester

• Accuracy
• 1 cycle

• Application
• To determine the fatigue resistance of shoe steel shanks

• Automation Grade
• Semi-Automatic

• Capacity
• 2 samples

• Control Mode
• Digital control

• Display Type
• Digital Display

• Features
• Fatigue cycle counter, digital setting, easy specimen loading

• Frequency
• 50 Hz

• Gas Pressure
• 0.6 MPa

• Hardness
• Steel structure body

• Humidity
• 40% ~ 85% RH

• Interface Type
• Panel control

• Machine Weight
• 70 kg

• Max Height
• 450 mm

• Measuring Range
• 0100 mm

• Mounting Type
• Bench-top

• Number of Specimens
• 2

• Operating Voltage
• 220V AC

• Port Size
• 1/4 BSP

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1 cycle

• Response Time
• Instant

• Specimen Size
• Steel shank standard size

• Temperature
• 10C ~ 40C

• Test Range
• 0999999 cycles

• Test Speed
• 60 cycles/min

• Test Stroke
• 152 mm

• Test Width
• 76 mm

• Usage
• Laboratory testing of footwear steel shanks

• Equipment Type
• Shoe Heel Impact Fatigue Tester

• Accuracy
• 1 mm

• Application
• Heel impact fatigue resistance test for footwear

• Automation Grade
• Semi-automatic

• Capacity
• 2 test stations

• Control Mode
• Digital touch control

• Display Type
• Digital LCD

• Features
• Adjustable falling height, safety guard, low noise operation

• Frequency
• 50 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Hardness
• Test hammer hardness HRC 552

• Humidity
• 20%-80% RH

• Interface Type
• Panel front buttons

• Machine Weight
• Approx. 95 kg

• Max Height
• 140 mm

• Measuring Range
• 0~140 mm

• Mounting Type
• Free-standing

• Number of Specimens
• 2

• Operating Voltage
• 220V AC

• Port Size
• 1/4 inch

• Power Supply
• AC 220V 10%, 50Hz

• Resolution
• 1 impact

• Response Time
• 1 s

• Specimen Size
• Heel height 140 mm

• Temperature
• 10C~35C

• Test Range
• 0~999999 impacts

• Test Speed
• 60-80 impacts/min

• Test Stroke
• 50 mm

• Test Width
• 50 mm

• Usage
• Footwear laboratory, quality control

• Equipment Type
• Dynamic testing machine

• Accuracy
• 1 cycle

• Application
• Waterproof evaluation of leather material

• Automation Grade
• Semi-automatic

• Capacity
• Standard

• Control Mode
• Digital controller

• Display Type
• Digital LCD

• Features
• Waterproof construction, automatic timer, adjustable specimen holder

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.4 - 0.7 MPa

• Hardness
• Standard

• Humidity
• 40%~70% RH

• Interface Type
• Touch panel

• Machine Weight
• Approx. 85 kg

• Max Height
• 540 mm

• Measuring Range
• User selectable

• Mounting Type
• Bench-top

• Number of Specimens
• 4

• Operating Voltage
• 220V

• Port Size
• 6 mm Air Inlet

• Power Supply
• AC 220V, 50/60 Hz

• Resolution
• 1 cycle

• Response Time
• Instantaneous

• Specimen Size
• 70 mm 70 mm

• Temperature
• Room temperature (10C~35C)

• Test Range
• 0~9999 cycles

• Test Speed
• 60 2 cycles/min

• Test Stroke
• 25 mm

• Test Width
• 70 mm

• Usage
• Laboratory, footwear, and leather QC testing

• Equipment Type
• Shoe Heel Impact Fatigue Testing Machine

• Accuracy
• 0.1 mm

• Application
• Impact and fatigue test for ladies and mens shoe heels

• Automation Grade
• Semi-automatic

• Capacity
• Configurable based on test requirement

• Control Mode
• Digital Control/Manual Switch

• Display Type
• Digital LCD

• Features
• Heavy duty, durable construction, digital cycle counter, adjustable settings, safety shield, low noise operation

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Hardness
• Steel working surface: HRC55-60

• Humidity
• Max 85% RH (non-condensing)

• Interface Type
• Panel control

• Machine Weight
• Approx. 85 kg

• Max Height
• 600 mm (including shield)

• Measuring Range
• Adjustable as per test requirements

• Mounting Type
• Bench-top

• Number of Specimens
• 1 piece per test

• Operating Voltage
• 220V AC

• Port Size
• Standard 8 mm air inlet

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.01 mm

• Response Time
• <1s

• Specimen Size
• Heel max height 60 mm, width 70 mm

• Temperature
• 10C~35C

• Test Range
• 1~999999 cycles

• Test Speed
• 60~150 impacts/min adjustable

• Test Stroke
• 0~60 mm adjustable

• Test Width
• Up to 70 mm

• Usage
• For testing heel fatigue resistance

• Equipment Type
• Peel Strength Test Equipment

• Accuracy
• 1% of Reading

• Application
• Shoe Sole & Upper Bonding Strength Testing

• Automation Grade
• Automatic

• Capacity
• 200 N

• Control Mode
• Digital Control

• Display Type
• Digital LCD Display

• Features
• High Precision, Stable Performance, Easy Operation

• Frequency
• 50 Hz

• Gas Pressure
• 0.4 ~ 0.6 MPa

• Hardness
• Standard Hardness

• Humidity
• 20 ~ 80% RH

• Interface Type
• RS232

• Machine Weight
• Approx. 80 kg

• Max Height
• 500 mm

• Measuring Range
• 0 ~ 200 N

• Mounting Type
• Bench-top

• Number of Specimens
• Single or Multiple

• Operating Voltage
• 220 V AC

• Port Size
• Standard 8 mm

• Power Supply
• AC 220V, 50 Hz

• Resolution
• 0.1 N

• Response Time
• 1 ms

• Specimen Size
• Length 100 mm x Width 10 mm

• Temperature
• 10C ~ 40C

• Test Range
• 0 ~ 200 N

• Test Speed
• 100 mm/min

• Test Stroke
• Maximum 150 mm

• Test Width
• 10 mm

• Usage
• Laboratory testing of shoes bonding quality

• Equipment Type
• Peeling Strength Testing Machine

• Accuracy
• 1%

• Application
• Testing the peeling strength of shoe soles and upper material bond

• Automation Grade
• Semi-automatic

• Capacity
• 500 N

• Control Mode
• Digital control

• Display Type
• Digital LCD

• Features
• Microprocessor controlled, Emergency stop, Overload protection

• Frequency
• 50 Hz

• Gas Pressure
• 0.5 - 0.7 MPa

• Hardness
• ---

• Humidity
• 20% - 80% RH

• Interface Type
• RS232

• Machine Weight
• approx. 65 kg

• Max Height
• 600 mm

• Measuring Range
• 0-500 N

• Mounting Type
• Table top

• Number of Specimens
• 1 at a time

• Operating Voltage
• AC 220V

• Port Size
• 1/4 inch

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1 N

• Response Time
• Instant

• Specimen Size
• min. 150 mm 25 mm

• Temperature
• 10C - 35C

• Test Range
• 0 - 500 N

• Test Speed
• 100 mm/min (adjustable)

• Test Stroke
• 100 mm

• Test Width
• 20 mm / 25 mm

• Usage
• Footwear testing laboratory

• Equipment Type
• Finished Shoes Bending Test Equipment

• Accuracy
• 1 cycle

• Application
• Flexing endurance of finished shoes

• Automation Grade
• Semi-automatic

• Capacity
• 2 pairs/operation

• Control Mode
• Digital Touch Screen

• Display Type
• Digital LCD

• Features
• Programmable, Auto-stop on failure

• Frequency
• 50Hz

• Gas Pressure
• 0.5-0.7 MPa

• Humidity
• 20%-85% RH (operating)

• Interface Type
• External USB (optional)

• Machine Weight
• Approx. 90 kg

• Max Height
• 180 mm (specimen shoe height)

• Measuring Range
• 0-50 mm

• Mounting Type
• Floor Standing

• Number of Specimens
• 2 pairs (4 specimens)

• Operating Voltage
• 220V AC

• Port Size
• Standard 6 mm air pipe

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1 cycle

• Response Time
• Immediate

• Specimen Size
• Full shoe up to size 48

• Temperature
• 10C - 40C

• Test Range
• 0-999,999 cycles

• Test Speed
• 60-300 cycles/min (adjustable)

• Test Stroke
• 0-50 mm (adjustable)

• Test Width
• Up to 150 mm

• Usage
• Bending fatigue test for finished shoes

• Equipment Type
• Vertical Freezing Leather Flexing Tester

• Accuracy
• 0.5C

• Application
• Determination of flex resistance of leather under low temperature

• Automation Grade
• Semi-automatic

• Capacity
• 6 test positions

• Control Mode
• Digital, Automatic Timer Control

• Display Type
• Digital display

• Features
• Vertical design, Low temperature operation, Digital timer, Multi-specimen testing

• Frequency
• 50 Hz

• Gas Pressure
• 0.5-0.7 MPa (when required for chilling refrigeration)

• Humidity
• 40-85% RH

• Interface Type
• Digital controller, Timer interface

• Machine Weight
• Approx. 75 kg

• Max Height
• 550 mm (overall)

• Measuring Range
• Applicable for various leather and coated fabrics

• Mounting Type
• Bench-top

• Number of Specimens
• 6

• Operating Voltage
• AC 220V 10%

• Port Size
• Standard air inlet 6 mm

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1C

• Response Time
• Instantaneous thermal monitoring

• Specimen Size
• 70 x 45 mm

• Temperature
• -20C to +20C (adjustable)

• Test Range
• -20C to room temperature

• Test Speed
• 100 cycles/min

• Test Stroke
• 20 mm 1 mm

• Test Width
• 45 mm

• Usage
• Flexing and durability testing of leather/textile at freezing temperatures

• Equipment Type
• Shoe Folding Tester

• Accuracy
• 1 cycle

• Application
• Shoes Flexing Resistance Test

• Automation Grade
• Semi-Automatic

• Capacity
• 2 Stations

• Control Mode
• Digital Timer & Manual Control

• Display Type
• Digital Display

• Features
• Auto-stop, Emergency Stop Switch, Adjustable Speed

• Frequency
• 50 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 20%~80% RH

• Interface Type
• Touch Screen Control Panel

• Machine Weight
• 90 kg

• Max Height
• 1100 mm

• Measuring Range
• Up to 999,999 flex cycles

• Mounting Type
• Floor Standing

• Number of Specimens
• 2 pairs

• Operating Voltage
• 220 V AC

• Port Size
• 8 mm OD

• Power Supply
• AC 220 V, 50 Hz

• Resolution
• 1 cycle

• Response Time
• <1 s

• Specimen Size
• Standard Shoe Sizes

• Temperature
• Room Temperature

• Test Range
• 0~999,999 cycles

• Test Speed
• 60~150 cycles/min

• Test Stroke
• 0~50 mm adjustable

• Test Width
• 70 mm

• Usage
• Footwear Quality Testing

• Equipment Type
• Shoe Flexing Tester

• Accuracy
• 1 cycle

• Application
• Bending/Flex testing of finished shoes as per GB/T 20991, ISO 5402, etc.

• Automation Grade
• Semi-automatic

• Capacity
• Standard shoe types

• Control Mode
• Digital Control Panel

• Display Type
• LCD Digital Display

• Features
• Auto-stop, LCD Counter, Parallel Flexing Mechanism

• Frequency
• 60 cpm

• Hardness
• Applicable to standard finished shoe hardness

• Humidity
• 40%-70% RH

• Interface Type
• Touch Keypad

• Machine Weight
• Approx. 85 kg

• Max Height
• Approx. 350 mm (sample)

• Measuring Range
• 0 - 999,999 flex cycles

• Mounting Type
• Bench-top

• Number of Specimens
• 6 pairs (12 pieces)

• Operating Voltage
• 220V AC

• Port Size
• Standard Sample Port

• Power Supply
• AC 220V, 50/60 Hz

• Resolution
• 1 cycle

• Response Time
• Instantaneous

• Specimen Size
• Length: 150-200 mm

• Temperature
• Room temperature (23 2C)

• Test Range
• 0 - 999,999 cycles

• Test Speed
• 60 6 cpm (cycles per minute)

• Test Stroke
• 30 1 mm

• Test Width
• 60 mm

• Usage
• Shoe Testing Laboratory

• Equipment Type
• Shoe Bending Waterproof Test Machine

• Accuracy
• 1 cycle

• Application
• Footwear bending waterproof resistance test

• Automation Grade
• Semi-automatic

• Capacity
• 4-8 samples per batch

• Control Mode
• Digital/Manual Switch

• Display Type
• Digital Display

• Features
• Corrosion-resistant structure, automatic stop, adjustable stroke

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.5-0.7 MPa

• Humidity
• 40-80% RH

• Interface Type
• Push-button / LED Display

• Machine Weight
• About 95 kg

• Max Height
• 250 mm

• Measuring Range
• 0.1~999999 cycles

• Mounting Type
• Floor Standing

• Number of Specimens
• 4 pairs (8 pieces)

• Operating Voltage
• 220V

• Port Size
• 1/4 inch

• Power Supply
• AC 220V, 50/60Hz

• Resolution
• 1 cycle

• Response Time
• 1 s

• Specimen Size
• 200mm x 60mm (max)

• Temperature
• Room Temperature (10C - 40C)

• Test Range
• 0~999999 cycles

• Test Speed
• 50-150 cycles/min

• Test Stroke
• 30-50 mm adjustable

• Test Width
• 70 mm

• Usage
• Testing waterproof performance under flexing condition

• Equipment Type
• Abrasion Resistance Tester

• Accuracy
• 1 cycle

• Application
• Shoe Sole Abrasion Testing

• Automation Grade
• Semi-Automatic

• Capacity
• Testing two pieces

• Control Mode
• Digital Controller

• Display Type
• LED Digital Display

• Features
• High precision, durable construction, easy specimen loading

• Frequency
• 50 Hz

• Gas Pressure
• 0.4~0.6 MPa

• Humidity
• 40%-80% RH

• Interface Type
• User interface buttons

• Machine Weight
• 80 kg

• Max Height
• 400 mm

• Measuring Range
• 0~99999 abrading cycles

• Mounting Type
• Bench-top

• Number of Specimens
• 2

• Operating Voltage
• 220V

• Port Size
• 8 mm

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1 cycle

• Response Time
• Instantaneous

• Specimen Size
• (100 x 30) mm

• Temperature
• 10C to 35C

• Test Range
• 1~99999 cycles

• Test Speed
• 60 5 rpm

• Test Stroke
• 76 mm

• Test Width
• 60 mm

• Usage
• Lab Testing, Quality Control

• Equipment Type
• Fiberboard Flexing Tester

• Accuracy
• 1 cycle

• Application
• For evaluating the flex resistance of fiberboard or corrugated materials

• Automation Grade
• Semi-automatic

• Capacity
• Single or double specimen

• Control Mode
• Digital/Manual

• Display Type
• Digital counter

• Features
• Programmable cycle count, automatic stop

• Frequency
• 50 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 20% - 80% RH

• Interface Type
• Panel display

• Machine Weight
• Approx. 90 kg

• Max Height
• 400 mm (instrument with stand)

• Measuring Range
• up to 999,999 flex cycles

• Mounting Type
• Floor-standing

• Number of Specimens
• 2 (Standard)

• Operating Voltage
• 220V AC

• Port Size
• 8 mm Pneumatic Port

• Power Supply
• AC 220V, 50 Hz

• Resolution
• 1 cycle

• Response Time
• Instantaneous

• Specimen Size
• 70 mm 280 mm

• Temperature
• 10C 40C Operating Range

• Test Range
• 0 - 999,999 cycles

• Test Speed
• 60 cycles/min (adjustable)

• Test Stroke
• 150 mm

• Test Width
• 70 mm

• Usage
• Flexural durability testing of packaging fiberboard

• Accuracy
• 1% of reading

• Application
• Leather and synthetic material scratch resistance testing

• Automation Grade
• Semi-Automatic

• Capacity
• 1 set

• Control Mode
• Digital display, touch control

• Display Type
• Digital/LCD

• Features
• Durable, easy operation, high accuracy

• Frequency
• 60 Hz

• Gas Pressure
• 0.5~0.7 MPa (if pneumatic type)

• Hardness
• 50~70 HRC (scratching needle)

• Humidity
• 40%~70% RH

• Interface Type
• RS232/USB (optional)

• Machine Weight
• About 30 kg

• Max Height
• 250 mm

• Measuring Range
• 0~500 g (Force adjustable)

• Mounting Type
• Tabletop

• Number of Specimens
• 1-2 pieces

• Operating Voltage
• 220 V AC

• Port Size
• Standard (customizable)

• Power Supply
• AC 220V, 50 Hz

• Resolution
• 0.1 g

• Response Time
• <1 Sec

• Specimen Size
• 100 x 50 mm

• Temperature
• Room Temperature (15C~35C)

• Test Range
• Adjustable

• Test Speed
• 60 cycles/min

• Test Stroke
• 60 mm

• Test Width
• 50 mm

• Usage
• Lab use/Quality control

• Equipment Type
• Low Temperature Flexing Tester

• Accuracy
• 1C

• Application
• Flex testing for rubber, plastic, leather, shoe, and similar materials at low temperatures

• Automation Grade
• Semi-Automatic

• Capacity
• Single or multiple specimens

• Control Mode
• Digital Control

• Display Type
• Digital Display

• Features
• Temperature uniformity, programmable cycles, safety lock, compact design

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.5 MPa

• Humidity
• 85% RH

• Interface Type
• Keypad and digital panel

• Machine Weight
• 80 kg

• Max Height
• 600 mm

• Measuring Range
• Full test chamber temperature range

• Mounting Type
• Floor Mounted

• Number of Specimens
• 6 pcs

• Operating Voltage
• 220V AC

• Port Size
• 6 mm

• Power Supply
• AC 220V 50/60Hz

• Resolution
• 0.1C

• Response Time
• Instantaneous

• Specimen Size
• 150 mm x 70 mm

• Temperature
• -40C to +20C

• Test Range
• -40C to +20C

• Test Speed
• 100 cycles/min

• Test Stroke
• 10~50 mm (adjustable)

• Test Width
• 70 mm

• Usage
• Material fatigue and flex testing

• Equipment Type
• Flex Durability Testing Machine

• Accuracy
• 1 cycle

• Application
• Flexing durability test for leather, fabric, rubber, and similar materials

• Automation Grade
• Semi-Automatic

• Capacity
• 6 samples per cycle

• Control Mode
• Digital touch control panel

• Display Type
• Digital LCD Display

• Features
• Cycle counter, automatic stop, adjustable stroke, safety guard

• Frequency
• 50 Hz

• Gas Pressure
• 0.50.7 MPa

• Humidity
• 40%85% RH

• Interface Type
• Touch Panel Interface

• Machine Weight
• Approx. 80 kg

• Max Height
• 500 mm

• Measuring Range
• 1-99,999 flex cycles

• Mounting Type
• Bench Top

• Number of Specimens
• 6

• Operating Voltage
• 220V AC

• Port Size
• Standard air nozzle, 8 mm

• Power Supply
• 220V AC, 50Hz

• Resolution
• 1 cycle

• Response Time
• 1 sec

• Specimen Size
• 70 45 mm

• Temperature
• 10C40C

• Test Range
• 099,999 cycles

• Test Speed
• 100 5 cycles/min

• Test Stroke
• 30-60 mm adjustable

• Test Width
• 70 mm

• Usage
• Material flex durability testing

• Equipment Type
• Leather Resistance Tester

• Accuracy
• 1 cycle

• Application
• Abrasion, flexing, and resistance testing of leather

• Automation Grade
• Semi-automatic

• Capacity
• 2 x 500g weights

• Control Mode
• Digital display, preset cycles

• Display Type
• Digital LCD display

• Features
• Compact design, programmable cycle count, self-stop function

• Frequency
• 50Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 40%~80% RH

• Interface Type
• Push button panel

• Machine Weight
• 32 kg

• Max Height
• 500 mm

• Measuring Range
• 0~999999 cycles

• Mounting Type
• Bench-top

• Number of Specimens
• 2

• Operating Voltage
• 220V AC

• Port Size
• 1/4 inch

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1 cycle

• Response Time
• Instantaneous

• Specimen Size
• 120 x 50 mm

• Temperature
• 15C~35C

• Test Range
• 0~999999 cycles

• Test Speed
• 0~60 cycles/min

• Test Stroke
• 35 mm

• Test Width
• 60 mm

• Usage
• Testing leather sample resistance to abrasion and flexing

• Accuracy
• 1%

• Application
• Testing electrical withstand voltage capability of safety shoes and boots

• Automation Grade
• Semi-Automatic

• Capacity
• 3 kVA

• Control Mode
• Digital/Automatic

• Display Type
• Digital LED/LCD

• Features
• Overload protection, Trip alarm, Auto/manual mode

• Frequency
• 50 Hz

• Gas Pressure
• 0.5-0.7 MPa

• Humidity
• Less than 85% RH

• Interface Type
• Panel Mounted Controls

• Machine Weight
• Approx. 60-80 kg

• Max Height
• 600 mm

• Measuring Range
• Up to 20,000V

• Mounting Type
• Floor Stand

• Number of Specimens
• 1

• Operating Voltage
• 220V

• Port Size
• Standard inch

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1 kV

• Response Time
• 2 ms

• Specimen Size
• Shoe Size Range 230-320 mm (European size 36-50)

• Temperature
• 10C - 40C

• Test Range
• 0 - 20 kV

• Test Speed
• Adjustable, standard 10-20 mm/s

• Test Stroke
• 0-150 mm

• Test Width
• 100-200 mm

• Usage
• Industrial safety compliance testing

• Equipment Type
• Outsole Belt Flexing Test Equipment

• Accuracy
• 1 cycle

• Application
• Flexing resistance test of shoe outsoles and belts

• Automation Grade
• Semi-automatic

• Capacity
• Designed for continuous laboratory use

• Control Mode
• Digital control panel

• Display Type
• Digital LCD display

• Features
• Cycle counter, automatic stop, easy specimen loading

• Frequency
• 50 Hz

• Humidity
• Standard Lab Conditions (45-75% RH)

• Interface Type
• Touch keys, digital interface

• Machine Weight
• Approx. 120 kg

• Max Height
• Approx. 105 cm

• Measuring Range
• 050,000 flex cycles

• Mounting Type
• Floor standing

• Number of Specimens
• 1 to 3 specimens

• Operating Voltage
• 220V AC

• Port Size
• Standardcustomizable on request

• Power Supply
• 220V, 50Hz AC

• Resolution
• 1 cycle

• Response Time
• Immediate (real-time count update)

• Specimen Size
• Length up to 150 mm, width up to 80 mm

• Temperature
• Room Temperature (10C - 35C)

• Test Range
• Up to 50,000 cycles

• Test Speed
• 125 5 cycles/min

• Test Stroke
• 32 1 mm

• Test Width
• Up to 80 mm

• Usage
• Footwear quality control, laboratory equipment

• Equipment Type
• Martindale Abrasion Pilling Tester

• Accuracy
• 1 cycle

• Application
• Determining fabric abrasion and pilling resistance

• Automation Grade
• Semi-automatic

• Capacity
• Multiple samples simultaneous testing

• Control Mode
• Digital Timer and Counter

• Display Type
• Digital LCD

• Features
• Automatic stop, individual counters, selectable speed

• Frequency
• 50 Hz

• Humidity
• 20% - 65% RH (recommended)

• Interface Type
• Manual and digital interface

• Machine Weight
• Approx. 85 kg

• Max Height
• 340 mm

• Measuring Range
• User configurable

• Mounting Type
• Bench Top

• Number of Specimens
• 4, 6 or 8 positions (as per model)

• Operating Voltage
• 220V

• Port Size
• Standard power port

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1 cycle

• Response Time
• Instantaneous

• Specimen Size
• 38 mm diameter (abrasion); 140 mm (pilling)

• Temperature
• 18C - 30C

• Test Range
• 1 - 999,999 cycles

• Test Speed
• 24 0.5 rpm

• Test Stroke
• 60.5 0.5 mm

• Test Width
• 90 mm (specimen diameter)

• Usage
• Textile laboratory and Quality control

• Equipment Type
• Needle Metal Detector

• Accuracy
• High up to 99% rejection of metal contaminants

• Application
• Detection of broken needles and metal contaminants in garments, textiles, food, and plush toys

• Automation Grade
• Automatic

• Capacity
• High throughput

• Control Mode
• Digital

• Display Type
• Digital LCD

• Features
• Auto-detection, Alarm, Stop Conveyor

• Frequency
• 50/60 Hz

• Humidity
• 85% RH

• Interface Type
• Push Button, LCD Panel

• Machine Weight
• Approx. 200 Kg

• Max Height
• 1200 mm

• Measuring Range
• 0.8 mm-2.5 mm (iron) detection

• Mounting Type
• Conveyor Type

• Number of Specimens
• Multiple (Batch Processing)

• Operating Voltage
• 220V AC

• Port Size
• 800 mm (Conveyor Width)

• Power Supply
• AC 220V 10%, 50/60 Hz

• Resolution
• 0.8 mm

• Response Time
• Instantaneous (alarm on detection)

• Specimen Size
• Up to test width

• Temperature
• 0C~40C

• Test Range
• 0.8 mm to 2.5 mm ferrous particles

• Test Speed
• 30 m/min

• Test Stroke
• Customizable

• Test Width
• 600 mm

• Usage
• Textile and Garment Industry

• Equipment Type
• Abrasion Tester

• Accuracy
• 1 cycle

• Application
• Testing abrasion resistance of shoe laces

• Automation Grade
• Semi-automatic

• Capacity
• 2 samples/test

• Control Mode
• Manual / Digital

• Display Type
• Digital

• Features
• Stainless steel contact points, adjustable test parameters, automatic cycle counter

• Frequency
• 50 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 40%~85% RH

• Interface Type
• Push button/Digital panel

• Machine Weight
• Approx. 35 kg

• Measuring Range
• 0~999,999 cycles

• Mounting Type
• Table Top

• Number of Specimens
• 2 pairs

• Operating Voltage
• 220V AC

• Port Size
• 1/8

• Power Supply
• 220V AC, 50 Hz

• Resolution
• 1 cycle

• Response Time
• Instant

• Specimen Size
• Standard lace length

• Temperature
• 10C~35C

• Test Range
• 0~999,999 cycles

• Test Speed
• 60 2 cycles/min

• Test Stroke
• 35 mm

• Test Width
• 6 mm

• Usage
• Quality Control/Testing Lab

• Equipment Type
• Sole Tester

• Accuracy
• 1 cycle

• Application
• Used for flexing test of shoe soles

• Automation Grade
• Semi-automatic

• Capacity
• 2 samples

• Control Mode
• Microprocessor controlled

• Display Type
• Digital counter

• Features
• Rugged construction, Easy to operate

• Frequency
• 50 Hz

• Humidity
• Up to 85% RH

• Interface Type
• Manual & Digital

• Machine Weight
• 70 kg

• Max Height
• Approx. 500 mm

• Measuring Range
• 0-100 mm

• Mounting Type
• Floor standing

• Number of Specimens
• 2

• Operating Voltage
• 220V AC

• Port Size
• Standard

• Power Supply
• 220V AC, 50Hz

• Resolution
• 1 cycle

• Response Time
• Instant

• Specimen Size
• Max. 80 mm wide

• Temperature
• Room temperature

• Test Range
• 0-999999 cycles

• Test Speed
• 140 5 cpm

• Test Stroke
• 32 1 mm

• Test Width
• Up to 80 mm

• Usage
• Footwear/sole flexing test

• Equipment Type
• Shoe Lace Abrasion Tester

• Accuracy
• 1 cycle

• Application
• Testing abrasion resistance of shoe laces

• Automation Grade
• Semi-automatic

• Control Mode
• Digital control

• Display Type
• Digital LCD

• Features
• Programmable counter, Auto stop, Easy loading of specimens

• Frequency
• 50Hz

• Gas Pressure
• 4~6 bar

• Humidity
• 45%~85% RH

• Interface Type
• Manual and digital

• Machine Weight
• 45 kg

• Max Height
• 350 mm

• Measuring Range
• 0-999,999 cycles

• Mounting Type
• Tabletop

• Number of Specimens
• 4 pairs

• Operating Voltage
• 220V AC

• Port Size
• 6 mm Air inlet

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1 cycle

• Response Time
• Immediate

• Specimen Size
• Laces up to 120 cm

• Temperature
• Room temperature (10C - 35C)

• Test Range
• 0-999,999 cycles

• Test Speed
• 60 cycles/min

• Test Stroke
• 35 mm

• Test Width
• 20 mm

• Usage
• Abrasion resistance test

• Equipment Type
• Impact Testing Machine

• Accuracy
• 0.5 J %

• Application
• Shoe heel impact resistance testing

• Automation Grade
• Semi-automatic

• Control Mode
• Digital touch panel

• Display Type
• Digital LCD

• Features
• Programmable, automatic data logging, emergency stop

• Frequency
• 50 Hz Hertz (HZ)

• Gas Pressure
• 0.5-0.7 MPa mpa

• Hardness
• 60 HRC (striker)

• Humidity
• 40%-80%

• Interface Type
• RS232

• Machine Weight
• Approx. 75 kg Kilograms (kg)

• Max Height
• 350 mm

• Mounting Type
• Tabletop

• Number of Specimens
• 1 at a time

• Operating Voltage
• 220V AC Volt (V)

• Port Size
• 1/4 BSP

• Power Supply
• AC 220V, 50 Hz

• Resolution
• 0.1 J

• Response Time
• <1 sec Seconds

• Specimen Size
• Standard shoe heel (max 50 mm width) Millimeter (mm)

• Temperature
• 10C to 40C Celsius (oC)

• Test Range
• 0-50 J

• Test Speed
• 25 mm/sec - 50 mm/sec

• Test Stroke
• 30 mm

• Test Width
• 50 mm Millimeter (mm)

• Usage
• Footwear industry, QC lab

• Equipment Type
• DIN Abrasion Tester

• Application
• Rubber, tire, footwear, conveyor belt abrasion resistance measurement

• Automation Grade
• Semi-Automatic

• Control Mode
• Digital display and control

• Display Type
• Digital

• Features
• Adjustable counter; safety protection; robust metallic frame

• Frequency
• 50/60 Hz Hertz (HZ)

• Hardness
• Test roller hardness: 85 5 IRHD

• Humidity
• 35% - 75% RH

• Interface Type
• Manual and Digital

• Machine Weight
• About 70 kg Kilograms (kg)

• Max Height
• 350 mm

• Mounting Type
• Bench-top

• Number of Specimens
• Single specimen per test

• Operating Voltage
• AC 220V Volt (V)

• Port Size
• 6 mm air inlet

• Power Supply
• AC 220V, 50/60 Hz

• Resolution
• 0.01 mm

• Specimen Size
• 16 mm diameter 6~8 mm thickness Millimeter (mm)

• Temperature
• 15C - 40C Celsius (oC)

• Test Range
• Maximum 200 mm loss

• Test Speed
• 40 m/min

• Test Stroke
• 40 mm

• Test Width
• 20 mm (max) Millimeter (mm)

• Usage
• Lab Testing

• Application
• Industrial

• Power Supply
• Electric

• Product Type
• Flexing Tester

• Voltage
• 220-440 Volt (v)

• Application
• Industrial

• Power Supply
• Electric

• Product Type
• Imapct Tester

• Voltage
• 220-440 Volt (v)
