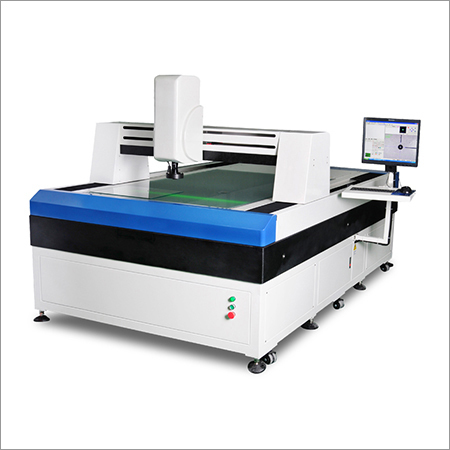

Large Video Optical Measuring Instruments

4500.00 - 6500.00 INR

Get a Price/Quote

Product Details:

Operating Voltage 220V
Temperature 15C 30C
Resolution 0.001 mm
Display Type High-resolution LCD touch screen
Test Range 0 300 mm
Frequency 50/60 Hz
Equipment Type Large Video Optical Measuring Instrument
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Large Video Optical Measuring Instruments Price And Quantity

Minimum Order Quantity 1 set Parcel
Price Range 4500.00 - 6500.00 INR

Stage Platform Granite base, precision linear guide
Magnification Up to 250x (optical + digital)
System Language Multiple (English/Chinese/Custom)
Camera System High-resolution CCD color camera
Image Analysis Software Advanced measurement and analysis suite included
Repeatability 1.5 µm
Operating Environment Free from strong vibration and electromagnetic interference
Objective Lens Telecentric (multiple options available)
Working Distance 90 mm (objective-dependent)
Illumination LED ring and surface light with adjustable brightness
Data Output Formats CSV, DXF, PDF

Large Video Optical Measuring Instruments Product Specifications

Usage Industrial, Metrology Labs
Operating Voltage 220V
Control Mode CNC Automatic / Manual
Temperature 15C 30C
Resolution 0.001 mm
Capacity Max. 15 kg
Machine Weight Approx. 500 kg
Display Type High-resolution LCD touch screen
Frequency 50/60 Hz
Test Range 0 300 mm
Equipment Type Large Video Optical Measuring Instrument
Features Auto edge finding, 3D measurement, data export, programmable measurement, lighting control
Measuring Range X: 400 mm, Y: 300 mm, Z: 200 mm
Mounting Type Floor standing
Automation Grade Semi-Automatic / Automatic
Accuracy 2 m
Port Size Standard RS232/USB
Test Width 400 mm
Test Stroke 350 mm
Humidity 20% 80% RH, non-condensing
Interface Type USB, RS232, VGA
Application Precise dimensional and optical measurement of large workpieces
Specimen Size Customizable up to 350 x 400 mm
Max Height 250 mm
Response Time <1 s
Power Supply AC 220V 50Hz
Number of Specimens Single/Multiple
Test Speed Variable, up to 200 mm/s

Stage Platform Granite base, precision linear guide
Magnification Up to 250x (optical + digital)
System Language Multiple (English/Chinese/Custom)
Camera System High-resolution CCD color camera
Image Analysis Software Advanced measurement and analysis suite included
Repeatability 1.5 µm
Operating Environment Free from strong vibration and electromagnetic interference
Objective Lens Telecentric (multiple options available)
Working Distance 90 mm (objective-dependent)
Illumination LED ring and surface light with adjustable brightness
Data Output Formats CSV, DXF, PDF

Large Video Optical Measuring Instruments Trade Information

FOB Port shenzhen
Supply Ability 20 Parcel Per Month
Delivery Time 15 Week
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
Main Domestic Market All India
Certifications CE, SGS,ISO9001

Product Description

Being a trustworthy manufacturer and supplier of Large Video Optical Measuring Machine. The offered machine is a chart productive utilitarian key and visual apparatus practical key which is isolated by shading and gathered strategically. This measuring machines makes the correspondence amongst administrator and instrument rapidly and cordial and it enhances the speed of human estimation clearly. Offered range of Large Video Optical Measuring Machine is manufactured under strict surveillance of our strict professionals to meet industry standards.

Graph work key is dark.
Graph productive key is red.
Visual apparatus work key is dark and green.

VML-CNC Characteristics:

Modern shape outline;
Fashionable auto-painting-craftwork;
Steady rock base;
Stable imported V-shape control;
Precise metal and glass worktable;
High-speed 3-pivot CNC driven engine;
Adjustable USB 4division ring LED enlightenment;
Advanced Pomeas 0.74.5X Zoom focal point;
Wonderful SONY 1/2" Color CCD camera;
Powerful 2.5D measuring programming Quick Measuring 4.1 adaptation.

VML-CNC Specifications :

Mode	VML-6060CNC	VML-1080CNC	VML-1210CNC
Order#	52-661	523-181	523-121
Metal table size	800x800mm	1140x1000mm	1140x1360mm
Glass table size	650x650mm	1050x850mm	1050x1250mm
Travel: X,Y	600x600mm	1000x800mm	1200x1000mm
Z-axis Travel	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm
X,Y-axis accuracy	(3+L/200)um	(3+L/200)um	(3+L/200)um
Measuring software	QM4.1	QM4.1	QM4.1

VML-CNC Standard Delivery :

Standard Delivery	Order#	Standard Delivery	Order#	Standard Delivery	Order#
Measuring Software	QM4.1	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Power,AV,RS232 Cable		Dell PC host

VML-CNC Optional Accessories:

Optional Accessories	Order#	Optional Accessories	Order#	Optional Accessories	Order#
Pomeas Coaxial zoom lens	421x001	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Working Cupboard ST03	581-631

Other Details :

Minimum	1 SET
Delivery	15 days after order.
Model	HD-3501A
Country	China
Brand Name	HD
Package	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment	L/C, D/P, T/T
Price	FOB, CIF

Precision Measurement for Large Workpieces

Designed for industrial and laboratory environments, this instrument enables detailed inspection and measurement of large-scale workpieces. The granite base and linear guides ensure stability, while the telecentric objectives provide superior edge accuracy. With an expansive measuring range (X: 400 mm, Y: 300 mm, Z: 200 mm) and variable test speeds, the system adapts easily to diverse applications.

Intuitive Operation and Advanced Image Analysis

The systems high-resolution LCD touchscreen and sophisticated software make measurement setup and analysis straightforward. Features such as auto edge finding, 3D measurement, and programmable measurement routines enhance workflow efficiency. Multi-language support (English, Chinese, custom) and data export in CSV, DXF, and PDF formats streamline integration into existing quality control processes.

Flexible Configuration and Robust Performance

Supporting both manual and CNC automation modes, the instrument handles single or multiple specimens with quick response times (<1 s). Adjustable LED lighting ensures optimal imaging regardless of object geometry, while extensive interface options (USB, RS232, VGA) enable seamless connectivity. Its durable construction and controlled operating environment requirements guarantee long-term reliability.

FAQs of Large Video Optical Measuring Instruments:

Q: How does the Large Video Optical Measuring Instrument ensure high measurement accuracy?

A: The instrument utilizes a high-resolution CCD color camera, telecentric objective lenses, and an advanced granite-based stage to provide stable, precise measurements. Its repeatability is 1.5 m, with an accuracy of 2 m and a resolution of 0.001 mm, ensuring reliable results even for complex or large parts.

Q: What types of workpieces can be measured, and what is the maximum size allowable?

A: The system is designed for large workpieces, accommodating specimen sizes up to 350 x 400 mm and weighing up to 15 kg. It offers both single and multiple specimen measurement, making it suitable for a range of industrial applications requiring high-precision inspection.

Q: When should I use the CNC automatic mode versus manual operation?

A: CNC automatic mode is ideal for repetitive, programmable measurements or when consistency is critical across multiple specimens. Manual operation is recommended for custom, one-off measurements or when setting up unique or complex parts not suited to batch processing.

Q: Where is the best environment to install and operate this instrument?

A: The instrument should be installed in an area free from strong vibrations and electromagnetic interference, with stable temperatures (15C to 30C) and humidity between 20% and 80% RH (non-condensing). Such controlled environmental conditions help maintain measurement stability and prolong equipment lifespan.

Q: What is the process for measuring a specimen using this system?

A: Begin by securely mounting the specimen on the granite stage. Use the LCD touchscreen to select or program measurement routines. The image analysis software, combined with variable LED lighting, performs auto edge detection and 3D measurements, then outputs results in CSV, DXF, or PDF formats. Data export and connectivity are seamless via USB or RS232 interfaces.

Q: How does the advanced image analysis software benefit users?

A: The included software simplifies measurement setup, automates edge finding and feature recognition, supports 3D measurement, and allows data export in multiple formats. This reduces manual effort, minimizes errors, ensures repeatable results, and improves overall workflow efficiency for quality control and inspection tasks.
