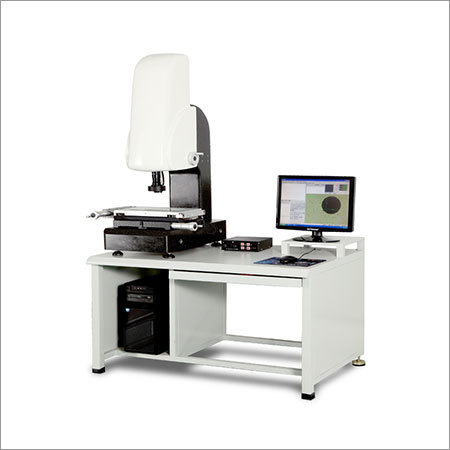

High Precision Image Measuring Machine

1500.00 - 6500.00 USD ($)

Get a Price/Quote

Product Details:

Accuracy 2 m
Response Time <2 s
Interface Type USB, RS232
Operating Voltage 220V
Automation Grade Semi-Automatic
Mounting Type Tabletop
Display Type LCD Digital Display
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High Precision Image Measuring Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 1500.00 - 6500.00 USD ($)

Lighting System LED Ring & Surface Illumination
Data Output Format CSV, TXT, Excel
Measurement Method Non-contact Optical
Camera Type High Resolution CMOS
Stage Flatness 1 m
Stand Material Aluminum Alloy
XY Table Travel 200 x 100 mm
Image Capture Speed 30 fps
Color Depth 24 bit
Lens Magnification 0.7x4.5x
Calibration Method Automatic and Manual
Protection Class IP40
Software Compatibility Windows 7/10

High Precision Image Measuring Machine Product Specifications

Features Touchscreen, Auto Focus, Data Storage
Power Supply AC 220V, 50Hz
Machine Weight 80 kg
Resolution 0.001 mm
Measuring Range 0300 mm
Equipment Type High Precision Image Measuring Machine
Test Speed 0.001100 mm/s
Application Precision dimensional measurement
Number of Specimens 110
Specimen Size 0.550 mm
Humidity 2080% RH
Temperature 1040C
Test Stroke 300 mm
Port Size USB, RS232
Control Mode Manual/Automatic
Frequency 50 Hz
Usage Industrial, Laboratory
Accuracy 2 m
Response Time <2 s
Test Width 200 mm
Interface Type USB, RS232
Capacity 50 kg
Automation Grade Semi-Automatic
Operating Voltage 220V
Test Range 0300 mm
Mounting Type Tabletop
Display Type LCD Digital Display
Gas Pressure 0.40.6 MPa
Max Height 300 mm

Lighting System LED Ring & Surface Illumination
Data Output Format CSV, TXT, Excel
Measurement Method Non-contact Optical
Camera Type High Resolution CMOS
Stage Flatness 1 m
Stand Material Aluminum Alloy
XY Table Travel 200 x 100 mm
Image Capture Speed 30 fps
Color Depth 24 bit
Lens Magnification 0.7x4.5x
Calibration Method Automatic and Manual
Protection Class IP40
Software Compatibility Windows 7/10

High Precision Image Measuring Machine Trade Information

FOB Port Shenzhen China
Payment Terms Cash on Delivery (COD), Letter of Credit (L/C), Paypal, Cash Against Delivery (CAD), Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 150 Set Per Month
Delivery Time 15 Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Product Description

Discover our High Precision Image Measuring Machine, providing blue-ribbon performance at an unbeatable price. Equipped with a high-resolution CMOS camera, variable lens magnification up to 4.5x, and a sensational LED dual-lighting system, it guarantees best-in-class results for precision dimensional measurement. Engineered with a robust aluminum alloy stand, automated/manual calibration, and versatile data output, it offers value and reliability in every operation. Compatible with Windows 7/10, seamless data export, and intuitive touchscreen control make this the premier choice for industrial, laboratory, and automation needs. Dont miss outget it now!

Superior Features, Application Flexibility & Usability

Our High Precision Image Measuring Machine features non-contact optical measurement and an ultra-flat XY table, ensuring accuracy up to 2 m. Designed for semi-automatic industrial and laboratory use, its 30 fps image capture and auto focus facilitate rapid, accurate analysis. The tabletop design, LCD digital display, and touch controls make it ideal for varied applications like automation, testing surfaces up to 300 mm high and specimen sizes from 0.5 to 50 mm.

Trustworthy Certifications & Rapid Supply Guaranteed

Every machine is fully certified for industrial standards, ready to be handed over swiftly. We enable quick dispatch from our facilities in India with drop-off available at preferred FOB ports. Our robust supply ability supports both small and bulk orders, ensuring seamless handovers for dealers, manufacturers, traders, and wholesalers. Benefit from reliable delivery, consistent support, and global export proficiency with every purchase.

FAQs of High Precision Image Measuring Machine:

Q: How does the High Precision Image Measuring Machine enhance measurement accuracy?

A: The machine leverages a high-resolution CMOS camera, precise lens magnification, and an exceptionally flat XY table, ensuring measurement accuracy up to 2 m with fast auto/manual calibration.

Q: What data formats and software is the machine compatible with?

A: Data can be exported in CSV, TXT, and Excel formats, and the system is compatible with Windows 7 and 10, making integration and data handling straightforward.

Q: Where can I use this equipment and what surfaces can it measure?

A: Its designed for tabletop use in industrial, laboratory, and automation settings, suitable for measuring surfaces up to 300 mm high and a wide range of specimen sizes.

Q: What is the process for calibration and is it manual or automatic?

A: The machine supports both automatic and manual calibration processes, allowing users flexibility and ensuring reliability for different testing requirements.

Q: When will the machine be dispatched after placing an order?

A: Quick dispatch is guaranteed; the machine is usually handed over to freight forwarders promptly with drop-off at your chosen FOB port in India.

Q: What benefits do dealers and distributors get from choosing this measuring machine?

A: Dealers and distributors enjoy consistent supply, certified quality, and comprehensive support for bulk and single unit orders, optimizing business efficiency.
