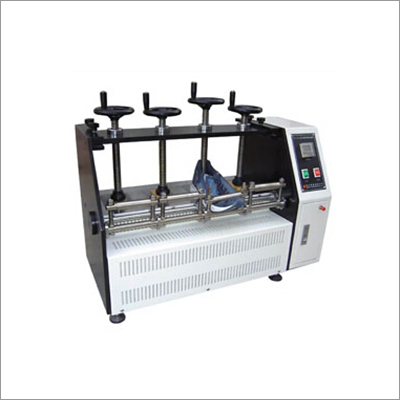

Finished Shoes Bending Test Equipment
1000.00 - 5000.00 INR
Product Details:
- Automation Grade Semi-automatic
- Humidity 20%-85% RH (operating)
- Resolution 1 cycle
- Port Size Standard 6 mm air pipe
- Application Flexing endurance of finished shoes
- Display Type Digital LCD
- Response Time Immediate
- Click to View more
X
Finished Shoes Bending Test Equipment Price And Quantity
- 1 Set
- 1000.00 - 5000.00 INR
- Overload protection, emergency stop switch
- Manual fixture
- Wooden case
- Available
- Less than 60 dB
- High quality steel and aluminum alloy
- 900 × 600 × 700 mm (L×W×H)
- 90 kg
- ISO 20344, GB/T 20991
- Indoor laboratory use
Finished Shoes Bending Test Equipment Product Specifications
- Standard 6 mm air pipe
- Flexing endurance of finished shoes
- Approx. 90 kg
- Semi-automatic
- Digital Touch Screen
- 20%-85% RH (operating)
- Bending fatigue test for finished shoes
- 60-300 cycles/min (adjustable)
- 1 cycle
- 2 pairs/operation
- 1 cycle
- 0-50 mm (adjustable)
- AC 220V, 50Hz
- Immediate
- Digital LCD
- External USB (optional)
- 2 pairs (4 specimens)
- Up to 150 mm
- 0-999,999 cycles
- 220V AC
- Floor Standing
- Finished Shoes Bending Test Equipment
- 50Hz
- 0.5-0.7 MPa
- 10C - 40C
- 0-50 mm
- Full shoe up to size 48
- 180 mm (specimen shoe height)
- Programmable, Auto-stop on failure
- Overload protection, emergency stop switch
- Manual fixture
- Wooden case
- Available
- Less than 60 dB
- High quality steel and aluminum alloy
- 900 × 600 × 700 mm (L×W×H)
- 90 kg
- ISO 20344, GB/T 20991
- Indoor laboratory use
Finished Shoes Bending Test Equipment Trade Information
- Shenzhen China
- Cash on Delivery (COD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Paypal, Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Cash Against Delivery (CAD), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)
- 150 Set Per Month
- 15 Days
- Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
- Australia, North America, Eastern Europe, Western Europe, Africa, Central America, Middle East, South America, Asia
Product Description
We are the prominent manufacturer and supplier of Finished shoes bending test equipment. The offered range of machine is utilized for testing the soles, completed shoes for the imperviousness to curve nature, or check the area and degree of splitting so as to enhance item quality. This Finished shoes bending test equipment is manufactured by using optimum quality rust free stainless steel, alloy and other components with the help of innovative technology and developed machinery to meet client end.
Specification :
| Number of tests | 2 Pairs |
| Bending angle | 0~45o (Adjustable) |
| Tet speed | 80+ 5cpm /min |
| Counter | LCD, 0-999,999 |
| Machine Size (LxWxH) | 95x57x35cm |
| Weight | Approx. 150 Kg |
| Power | AC 220V, 50Hz |
Other Details :
| Minimum | 1 SET |
| Delivery | 15 days after order. |
| Country | China |
| Brand Name | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
Advanced Construction and Safety Features
This bending tester features a durable body made from high-quality steel and aluminum alloy. It incorporates key safety mechanisms such as overload protection and an emergency stop switch for secure operation. The equipment runs quietly (less than 60 dB) and ensures stable indoor use. Its thoughtfully engineered manual clamping fixture can securely test two pairs of footwear per operation.
Precise and Programmable Testing
With a test stroke adjustable between 0 and 50 mm and an extensive cycling range up to 999,999 cycles, users can configure tests based on various footwear standards. The digital LCD and touch screen interface enable precise control of test speeds, width, and specimen heights, supporting an array of shoe types up to size 48. Optional USB interface and programmable modes streamline data management and workflow.
Compliant and Versatile for Laboratory Use
Engineered to meet ISO 20344 and GB/T 20991 standards, this machine ensures reliable assessments for global footwear markets. Operating efficiently within 10C - 40C and 20%-85% RH, its wooden case packaging and indoor design maximize laboratory utility for manufacturers and third-party assessment centers alike.
FAQs of Finished Shoes Bending Test Equipment:
Q: How is the Finished Shoes Bending Test Equipment operated and controlled?
A: The equipment uses a digital touch screen for precise control, allowing you to set test parameters such as stroke length, speed (60300 cycles/min), and number of cycles. The specimen is secured using a manual clamping fixture, and the machine automatically stops upon detecting test completion or a failure.Q: What types of shoes and sizes can be tested using this machine?
A: This bending tester accommodates full-size finished shoes up to size 48. It supports testing two pairs (four specimens) simultaneously, with a maximum specimen height of 180 mm and width up to 150 mm.Q: When should I conduct a flexing endurance test on finished shoes?
A: Flexing endurance tests are typically performed during the quality control phase in a laboratory setting to ensure that shoes comply with standards like ISO 20344 or GB/T 20991. Conducting tests before market release helps validate durability and performance.Q: Where is this equipment intended to be used?
A: The machine is designed for indoor laboratory use, making it ideal for footwear testing labs, manufacturing quality control rooms, or R&D departments. Its construction suits controlled environments with temperature between 10C40C and humidity from 20%85% RH.Q: What is the testing process involved with this machine?
A: The testing process begins by manually clamping specimens onto the fixture, setting the desired parameters on the touch screen, and starting the cycle. The equipment then bends the shoes repeatedly at the programmable speed and stroke settings, automatically stopping when failure is detected or a preset cycle count is reached.Q: What are the main benefits of using this bending test equipment?
A: Key benefits include compliance with international standards, programmable control for flexible testing, accurate cyclical measurement, enhanced safety features, low operating noise, and after-sales service support. These features help assure footwear durability and market readiness.Q: How can I receive support or after-sales service?
A: After-sales service is available for this equipment. You may contact your dealer, distributor, manufacturer, or supplier in China to request assistance or arrange for technical support and maintenance services.Tell us about your requirement
