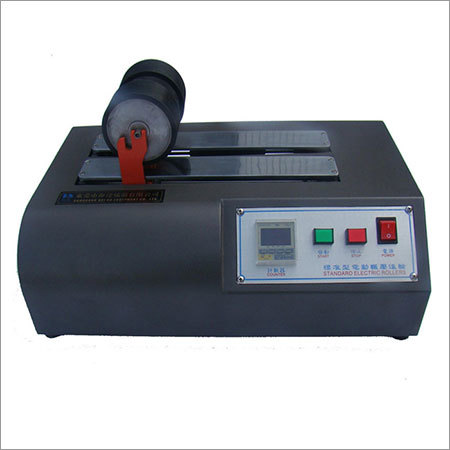

Electric Two Rolling Tape Adhesion Machine

Send Inquiry

Request To Call Back

Electric Two Rolling Tape Adhesion Machine

Get a Price/Quote

MOQ : 1 set Set

Electric Two Rolling Tape Adhesion Machine Specification

Hardness
Standard roller hardness

Display Type
Digital

Operating Voltage
220V

Port Size
Standard

Number of Specimens
2

Mounting Type
Desktop

Automation Grade
Automatic

Interface Type
Push Button

Features
Two rolling mechanism, automatic control, precision rollers

Temperature
Room temperature (10~35C)

Measuring Range
Up to 300 mm

Humidity
85% RH

Max Height
Approx. 400 mm

Accuracy
1%

Frequency
50 Hz

Specimen Size
Maximum 80 mm width

Test Range
Standard adhesion tests

Application
Adhesive tape rolling test

Power Supply
AC 220V 50Hz

Gas Pressure
0.4~0.7 MPa

Equipment Type
Adhesion Tester

Resolution
0.1 mm

Response Time
Instantaneous

Usage
Laboratory and industrial application

Capacity
Standard

Machine Weight
Approx. 55 kg

Test Speed
300 mm/min

Test Width
80 mm

Test Stroke
300 mm

Control Mode
Electric/Automatic

Roller Diameter
80 mm

Roller Material
High-quality steel with rubber coating

Motor Type
Stepper motor

Dimension (LxWxH)
Approx. 500 x 340 x 400 mm

Noise Level
60 dB

Color
Grey/Blue

Safety Features
Emergency stop switch, over-current protection

Compliance Standards
GB/T 4852, ASTM D3330, JIS Z0237

Electric Two Rolling Tape Adhesion Machine Trade Information

Minimum Order Quantity
1 set Set

FOB Port
shenzhen

Payment Terms
Paypal, Letter of Credit (L/C), Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID)

Supply Ability
50 Sets Per Month

Delivery Time
15 days after received the order Week

Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Certifications
SGS, CE, ISO9001

Electric Two Rolling Tape Adhesion Machine About

We are the main manufacturer and supplier of Electric Two Rolling Tape Adhesion machine. This adheres the sticky tape to the standard steel plate with a consistent weight and speed to set up the specimen for peeling test and maintenance test. The offered range is manufactured by us using optimum quality material with the help of innovative technology and developed machinery to meet client end. Moreover, this Electric Two Rolling Tape Adhesion Machine can be availed at reasonable cost from us.

Particulars :

Electric Rolling Tape Adhesion machine
Used to set up the specimen for the peeling quality
Holding force testing

The Accreditation :

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC

Electric Rolling Tape Adhesion machine :

load	2 Kg
Roller Dimension	84mm X 45mm
Rubber Hardness	Hs 80 + 5
Rubber Thickness	6 mm
Roller Speed	300 mm/min
Outside Dimension (LxWxH)	540 X 440 X 230 mm
Weight	28Kg
Power	1#, AC220V, 50/60Hz, 2A
Design Criteria	CNS-11888; PCTS-8

Other Details :

Minimum	1 SET
Delivery	15 days after order.
Model	HD-C526-3
Country	China
Brand Name	HD
Package	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment	L/C, D/P, T/T
Price	FOB, CIF

Precision Design for Reliable Testing

Engineered with an 80 mm steel roller coated in durable rubber, this adhesion tester guarantees stable and reproducible results. Equipped with a stepper motor and digital display, the device maintains tight accuracy and instant response, forming the backbone of a modern laboratory or quality assurance process. Its automatic control system enhances productivity while minimizing human error.

Advanced Safety & Compliance

Safety is integral to the machines design with built-in emergency stop and over-current protection. The machine meets international standards, including GB/T 4852, ASTM D3330, and JIS Z0237, ensuring its suitability for quality-driven environments. With low noise levels and user-friendly push button interface, it fits seamlessly into both laboratory and industrial settings.

Versatile Application and User Convenience

Optimized for adhesion testing of tapes up to 80 mm width, the machine features dual rolling mechanisms and accommodates two specimens in a single operation. Its robust build supports continuous usage across laboratories and production lines, making it a valuable investment for manufacturers, suppliers, dealers, and exporters.

FAQs of Electric Two Rolling Tape Adhesion Machine:

Q: How does the Electric Two Rolling Tape Adhesion Machine conduct adhesive tape tests?

A: The machine uses two precision rollers to apply uniform pressure to adhesive tape specimens, automatically rolling at a set speed of 300 mm/min. This simulates standardized test conditions, ensuring reliable and consistent adhesion measurements.

Q: What types of tapes and specimen sizes can be tested using this machine?

A: This adhesion tester is designed for tapes with a maximum width of 80 mm and supports up to two specimens simultaneously. It handles standard adhesive tapes used in laboratory and industrial applications, accommodating specimens up to 300 mm in length.

Q: When should I use this equipment for adhesion testing?

A: Utilize this machine for quality control, research, or product development when evaluating the adhesive strength of tape materials. It is especially useful during incoming inspections, process validation, or when conforming to international adhesion testing standards.

Q: Where can the machine be installed and who can benefit from it?

A: The machine is intended for desktop installation in laboratories or production quality assurance areas. It benefits manufacturers, exporters, dealers, and retail suppliers who require precise adhesion testing as part of their quality management processes.

Q: What is the testing process and how is it controlled?

A: Specimens are placed on the rollers, and testing is initiated via an easy-to-use push button. The process is fully automated: the stepper motor drives the rollers at a preset speed and test stroke, while results are digitally displayed with high resolution and accuracy.

Q: What are the key benefits of using this adhesion tester?

A: Key benefits include automated and repeatable testing, compliance with international standards, high-precision results, and enhanced safety features. Its quiet operation and sturdy build make it suitable for continuous use in demanding environments.

Q: How does the machine ensure safety during operation?

A: The tester incorporates an emergency stop switch for immediate shutdown and over-current protection to safeguard electrical components, ensuring operator and equipment safety throughout testing sessions.
