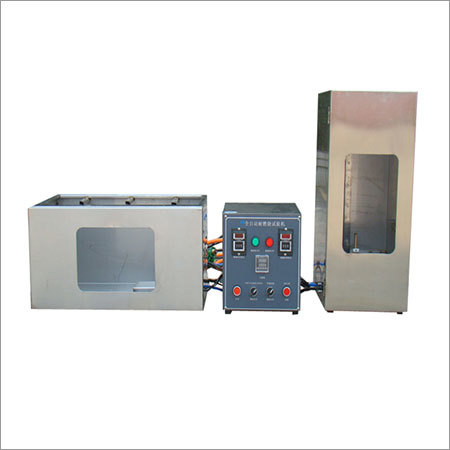

Combustion Tester
10000.00 - 15000.00 USD ($)
Product Details:
- Mounting Type Bench-top
- Humidity 10% 90% RH
- Gas Pressure 0.1 to 0.5 MPa
- Display Type Digital LCD
- Equipment Type Combustion Tester
- Port Size 8 mm Gas Inlet
- Power Supply 220 V AC, 50 Hz
- Click to View more
X
Combustion Tester Price And Quantity
- 1 Unit
- 10000.00 - 15000.00 USD ($)
- ASTM D1230, ISO 6941, UL94
- Powder-coated mild steel
- Manual and USB download (optional)
- Tempered glass
- 0-999.9 s adjustable
- Emergency stop, over-temperature protection
- Methane or propane gas
- Stainless steel nozzle
Combustion Tester Product Specifications
- 27 kg
- 50 Hz
- 8 mm Gas Inlet
- 220 V AC, 50 Hz
- Material Laboratory Testing
- Combustion Tester
- 0.1 to 0.5 MPa
- Single Specimen
- Digital LCD
- 10% 90% RH
- Bench-top
- 300 mm
- Semi-automatic
- 100 mm 40 mm
- Material Flammability and Fire Resistance Testing
- Automatic timer, adjustable flame, overheat protection
- 320 mm
- <1 s
- 220 V
- 0300 mm
- 1 at a time
- Digital / Manual
- Adjustable, up to 50 mm/min
- 0.1 s
- Ambient to 50C
- 0999.9 s
- Standard RS232
- 1 mm
- 200 mm
- ASTM D1230, ISO 6941, UL94
- Powder-coated mild steel
- Manual and USB download (optional)
- Tempered glass
- 0-999.9 s adjustable
- Emergency stop, over-temperature protection
- Methane or propane gas
- Stainless steel nozzle
Combustion Tester Trade Information
- shenzhen
- 20 Unit Per Month
- 15 Days
- Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
- All India
- CE, SGS, ISO9001
Product Description
We are the main manufacturer and supplier of Combustion Tester machine. This is utilized for consuming a few fire at a specific tallness a dangle of the test example when the example is level or vertical by utilizing the required size of the Bunsen burner(Bunsen burner)and the particular gas source (methane or common gas). The start of sheet material under the hot burning span and the example is touched off to survey its ignition. Programmed ignition analyzer suits for wires, cables,rubber,plastic,sheathing and protection layer polymer material burning test. Combustion Tester machine is available with us reasonable rates.
Combustion Tester
- The ignition analyzer is the reenactment well being test which complies with IEC60950,UL94, IEC707, IEC695-2-2, ISO1210.
- Design criteria UL62-3839 UL1581-1060-10800, 1100,1140 UL758 UL62
- Feature Can be set burning,intermittent number of seconds and the number of trial sand automatic operation
Parameters
The tester consists of:control box,the vertical combustion chamber, consuming lights, electro-attractive valves, weight controllers, gas pipes, the flag control line.
Chamber structure:
- Vertical burning chamber 305x355x610mm
- Even burning chamber 610x305x355mm
- Control chamber 355x355x400mm
- Sprinkler clock, the Minting timer, burning timer
- Timer 2 groups,0 99 seconds (GB standard is 15s)
- Counter 0 9999x100times (GB standard is 3S)
- Burning gas :98% methane gas 98% propane gas (usually LPG can be used instead)
- Control supply 220V+/-10% 50Hz
- Manual/programmed sort discretionary switch, vertical/even discretionary switch
- Spout of burning :20 degree
- Programmed control : preset the test outcome, stop naturally when it wraps up.
On the off chance that you confront any issues in future amid testing process we guarantee we will give you an answer inside 48 hours and arrangement give inside 3 working days. We can offer operation video and English operation manual. We can give video-gathering. In the event that clients require nearby administration, the vehicle and travel cost should be borne by client;
Other Details :
|
Minimum |
1 SET |
|
Delivery |
15 days after order. |
|
Model |
HD-R807 |
|
Country |
China |
|
Brand Name |
HD |
|
Package |
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
|
Payment |
L/C, D/P, T/T |
|
Price |
FOB, CIF |
Versatile Flammability Testing Innovation
This semi-automatic combustion tester is engineered for precision material laboratory testing of fire resistance using methane or propane gas. With a digital LCD display and customizable settings for timer, flame adjustment, and test speed, it adapts to diverse test requirements. Its stainless steel nozzle and robust chamber construction enhance durability, while overheat safeguards and emergency stop functions guarantee safety during assessments.
Easy Data Management and Control
Control modes include both digital and manual operation, offering flexibility in different lab environments. An optional USB interface and manual download enable easy data extraction. The system operates on a standard 220 V AC supply and supports serial communications via RS232, streamlining connectivity to various data systems for comprehensive record-keeping.
FAQs of Combustion Tester:
Q: How is a combustion test conducted using this tester?
A: To conduct a test, place a single material specimen (measuring 100 mm 40 mm) in the chamber, adjust the flame using methane or propane gas, and set the desired parameters like timer (0999.9 s) and test speed (up to 50 mm/min). The digital LCD guides you through the process, and results can be viewed through the tempered glass window.Q: What safety features does the combustion tester include?
A: The tester is equipped with an emergency stop button and over-temperature protection, ensuring immediate shutdown in case of hazards. Its powder-coated mild steel chamber and tempered glass window further enhance operator safety during flammability testing.Q: When should manual versus digital control be used?
A: Manual control is ideal for quick adjustments or simpler operations, while the digital mode provides precise, programmable control for rigorous testing and accurate data collection. Switching between modes can help accommodate various testing protocols and operator preferences.Q: Where can data from the combustion tester be exported?
A: Data recording options include manual record-keeping or downloading results via an optional USB port. Additionally, standard RS232 interface connectivity allows integration with lab data systems for comprehensive result management and analysis.Q: What benefits does adjustable gas type and test settings provide?
A: The ability to use either methane or propane gas, coupled with adjustable test parameters such as flame intensity, timer, and test speed, ensures versatile performance. This flexibility allows compliance with multiple standards (ASTM D1230, ISO 6941, UL94) and supports a broad range of fire resistance assessments.Q: How accurate are test results from this combustion tester?
A: The equipment provides high accuracy, with measuring precision up to 1 mm and temporal resolution of 0.1 s. The rapid response time (<1 s) ensures reliable and repeatable test outcomes, matching industry standards for flammability testing.Q: What are the main applications and who can benefit from this tester?
A: Designed for material flammability and fire resistance testing, this combustion tester suits research and quality control laboratories in industries like textiles, plastics, and electronics. Dealers, manufacturers, suppliers, and testing services in China and abroad also benefit from its standard compliance and automation features.Tell us about your requirement
