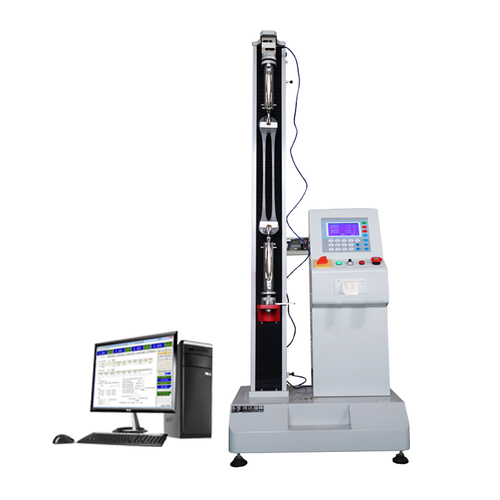

ASTM Universal Tensile Tester

3000.00 - 6500.00 USD ($)

Get a Price/Quote

Product Details:

Dimension (L*W*H) 800 x 500 x 1800 mm
Phase Single Phase
Resolution 0.001 kN
Speed Range 0.5 to 500 mm/min
Product Type Universal Tensile Tester
Operating Temperature 5C to 45C
Power Source Electric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ASTM Universal Tensile Tester Price And Quantity

Price Range 3000.00 - 6500.00 USD ($)
Test Force Up to 100 kN
Minimum Order Quantity 1 Set
Maximum Test Force As per load capacity

Crosshead Type Motorized
Display Type LCD Digital Display
Mechanical Drive Ball-screw driven crosshead
Load Measurement Electronic
Crosshead Displacement High accuracy encoder driven
Software PC based analysis software included
Test Types Tensile, Compression, Flexural, Shear
Safety Features Emergency stop button, travel limit protection
Testing Standards ASTM, ISO, DIN
Grip Type Interchangeable
Data Output USB, RS232 Port

ASTM Universal Tensile Tester Product Specifications

Resolution 0.001 kN
Dimension (L*W*H) 800 x 500 x 1800 mm
Phase Single Phase
Product Type Universal Tensile Tester
Speed Range 0.5 to 500 mm/min
Power Source Electric
Operating Temperature 5C to 45C
Capacity Customizable based on model
Voltage 220V
Automatic Grade Automatic
Application Material strength and elongation testing
Stroke Length 700 mm
Weight Approx. 250 kg
Control System Programmable digital controller
Screw Size 32 mm
Accuracy 1% of indicated value
Color Blue & White
Sensor High precision load cell
Material Heavy duty steel
Power 220V AC
Machine Speed Variable
Features Digital display, overload protection, programmable test cycles
Power Consumption 1.5 kW
Load Capacity 5 kN to 100 kN
Frequency 50 Hz

Crosshead Type Motorized
Display Type LCD Digital Display
Mechanical Drive Ball-screw driven crosshead
Load Measurement Electronic
Crosshead Displacement High accuracy encoder driven
Software PC based analysis software included
Test Types Tensile, Compression, Flexural, Shear
Safety Features Emergency stop button, travel limit protection
Testing Standards ASTM, ISO, DIN
Grip Type Interchangeable
Data Output USB, RS232 Port

ASTM Universal Tensile Tester Trade Information

FOB Port Shenzhen China
Payment Terms Cash on Delivery (COD), Letter of Credit (L/C), Paypal, Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 150 Set Per Month
Delivery Time 15 days after received the order Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Product Description

Universal Tensile Tester Electronic

Application

Electronic Universal Tensile Tester is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.

Main components:

Framework, loading systems,force measurement systems, data processing systems, fixtures and accessories, the most important are: loadforce measurement and data processing

Theory

Computerized High Accuracy PVC Strength Tensile Testing Machine HD-604B-S
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer.

Features

Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;

Standard

Computerized High Accuracy PVC Strength Tensile Testing Machine
ASTMD903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T2790/2791/2792,CNS-11888,JIS K6854, PSTC-7.

Technical parameters:

Universal Tensile Tester Maintenance

machine parts, the appearance of regular cleaning to keep clean.
plating part please wipe oil to prevent rusting Kibo light.
part of the power screw and screw please add oil to protect sensitive transmission. (Add a little butter and oil mining lubricants can be mixed).
panel (ie, the control box display) wipe with a dry cloth to prevent wet, to avoid damaging IC electronic components.

Versatile Testing Capabilities

This universal tensile tester allows for multiple test types such as tensile, compression, flexural, and shear tests. Its interchangeable grips support a variety of specimen geometries and materials, meeting ASTM, ISO, and DIN standards. This flexibility makes it suitable for industries ranging from manufacturing to quality control.

Advanced Technology & Precision

Equipped with a motorized crosshead, high-resolution encoder, and electronic load measurement, this tester ensures precise and repeatable testing. The digital controller and programmable test cycles allow for detailed customization, while the PC-based analysis software aids in deep data analysis and reporting.

Safety and User-Friendly Design

Operator safety is paramount with features like an emergency stop button, travel limit protection, and overload protection. The LCD display provides clear results, while the machines robust build and heavy-duty steel construction ensure longevity and reliability even in demanding laboratory settings.

FAQs of ASTM Universal Tensile Tester:

Q: How do I use the ASTM Universal Tensile Tester for different types of mechanical tests?

A: This tester offers interchangeable grips that allow you to perform tensile, compression, flexural, and shear tests as required. Simply select the appropriate grip, configure test parameters on the LCD digital display or PC software, and follow safety protocols before starting the test cycle.

Q: What are the data output options available, and how can I analyze results?

A: Results can be accessed via LCD digital display, USB port, or RS232 interface. Additionally, the included PC-based analysis software allows you to store, analyze, and export test data efficiently for comprehensive material evaluation.

Q: When should I use this tester, and for which applications is it best suited?

A: Use the ASTM Universal Tensile Tester whenever precise measurement of material strength, elongation, or deformation is required. It is ideal for quality assurance, research and development, and compliance testing in sectors such as manufacturing, construction, and materials science.

Q: Where can the ASTM Universal Tensile Tester be installed?

A: Thanks to its compact but robust form factor (800 x 500 x 1800 mm) and single-phase electric power requirement, the tester is suitable for installation in laboratories, manufacturing floors, and quality control departments across industrial facilities in India.

Q: What is the process for setting up the machine and initiating a test cycle?

A: Installation involves positioning the tester on a stable floor and connecting it to a 220V AC power supply. After setup, select the grip and test type, set parameters via the digital controller or PC software, and begin testing. Safety features such as emergency stop and travel limits ensure operator protection during operation.

Q: What benefits does this tester offer compared to standard devices?

A: On top of high 1% accuracy, programmable testing cycles, and extensive safety protections, the ASTM Universal Tensile Tester provides robust customization, easy data management, and compliance with international standardsdelivering reliable, professional testing outcomes.
