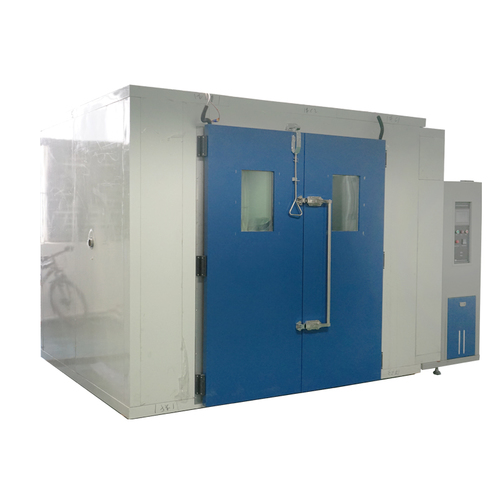

Environmental Test Chamber

• Equipment Type
• Ozone Aging Test Chamber

• Accuracy
• Ozone concentration accuracy: 5%

• Application
• Rubber, cable sheath, non-metal material ozone resistance and aging testing

• Automation Grade
• Automatic

• Capacity
• 120 L

• Control Mode
• Programmable Digital Controller

• Display Type
• Digital Display

• Features
• PID automatic control, programmable test cycles, over-temperature/alarm protection, safety interlock

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.20.3 MPa

• Hardness
• Applicable to soft and hard rubber specimens

• Humidity
• 4085% RH (Adjustable)

• Interface Type
• RS-232

• Machine Weight
• Approx. 120 kg

• Max Height
• 900 mm

• Measuring Range
• 0200 pphm ozone concentration

• Mounting Type
• Floor Standing

• Number of Specimens
• 612

• Operating Voltage
• 220V AC

• Port Size
• 1/4 inch

• Power Supply
• AC 220V 10%, 50Hz

• Resolution
• 1 pphm

• Response Time
• 30 seconds

• Specimen Size
• Up to 150 mm length

• Temperature
• Room temperature to 70C (Adjustable)

• Test Range
• 0-200 pphm Ozone Concentration

• Test Speed
• Standard rotatory: 1-2 rpm

• Test Stroke
• 50 mm

• Test Width
• 150 mm

• Usage
• Material aging/ozone resistance testing

• Equipment Type
• Corrosion Test Chamber

• Accuracy
• 0.1C (Chamber Temp.)

• Application
• Salt spray or fog corrosion testing for metal, paint, coating, and surface treatments

• Automation Grade
• Semi-Automatic / Fully Automatic (optional)

• Capacity
• 108 L 270 L options

• Control Mode
• Digital PLC or Button Panel Control

• Display Type
• Digital/LED Display

• Features
• Water level auto-detection, over-temp and over-pressure safety, transparent lid, sample racks

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.8 2.0 bar (compressor required)

• Hardness
• Chamber built from reinforced PP/FRP

• Humidity
• 95% RH or above

• Interface Type
• PLC terminal or manual buttons

• Machine Weight
• Approx. 80-120 kg (varies by model)

• Max Height
• 900 mm (chamber height incl. lid)

• Measuring Range
• Salt fog deposition rate 1-2 ml/80cm2/hr

• Mounting Type
• Floor standing

• Number of Specimens
• Up to 16 standard bars or variable

• Operating Voltage
• 220V

• Port Size
• 1/4 inch NPT inlet

• Power Supply
• 220V AC, 50/60 Hz

• Resolution
• 0.1C / 0.1 ml

• Response Time
• Immediate, dependent on internal sensors

• Specimen Size
• Max. 400 100 mm each

• Temperature
• 35C 1C (per ASTM B117)

• Test Range
• Continuous or Cyclic Salt Fog

• Test Speed
• Preset standard, typically 1-2 ml/80cm2/hr salt spray

• Test Stroke
• Standard full chamber, up to 1000 mm

• Test Width
• 600 mm 1000 mm (varies per model)

• Usage
• Industrial laboratory corrosion test

• Equipment Type
• Dust Test Chamber

• Accuracy
• Complies with IEC 60529

• Application
• Ingress protection testing for electronics and electrical enclosures

• Automation Grade
• Fully automatic

• Capacity
• 1000 Liters

• Control Mode
• Touchscreen PLC control

• Display Type
• 7 TFT LCD Touchscreen

• Features
• Programmable controller, Overheat protection, Dust recirculation system

• Frequency
• 50 Hz

• Gas Pressure
• 0.7 bar (air) for dust circulation

• Hardness
• IP6X grade chamber body

• Humidity
• Less than 30% RH (during test)

• Interface Type
• RS232/USB data export

• Machine Weight
• Approximately 250 kg

• Max Height
• 1350 mm

• Measuring Range
• Fine dust (talcum powder) testing for IP5X/IP6X

• Mounting Type
• Floor standing

• Number of Specimens
• 1-3 pieces per cycle

• Operating Voltage
• 220V AC

• Port Size
• 100 mm dia

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.01 mm (dust monitoring)

• Response Time
• <2 seconds

• Specimen Size
• Max 1000 x 1000 x 1000 mm

• Temperature
• Room temperature (ambient)

• Test Range
• IP5X and IP6X dust resistance test

• Test Speed
• Adjustable up to 3 m/s

• Test Stroke
• 400 mm

• Test Width
• 600 mm

• Usage
• Laboratory/industrial IP dust ingress testing

• Equipment Type
• Ozone Environmental Testing Chamber

• Accuracy
• 2% of Set Value

• Application
• Accelerated Aging and Degradation Testing of Rubber, Polymer, and Coated Samples

• Automation Grade
• Fully Automatic

• Capacity
• Chamber Volume: 350 Liters

• Control Mode
• Microprocessor-Based Digital Control

• Display Type
• Digital LCD Display with Touch Interface

• Features
• Programmable Ozone Generator, Overheat Protection, Gas Flow Controller, Safety Interlocks

• Frequency
• 50 Hz

• Gas Pressure
• 0.5 MPa (max recommended)

• Hardness
• Stainless Steel Internal Chamber - 304 grade

• Humidity
• 40% - 98% RH (Controllable)

• Interface Type
• RS232 / USB Data Port

• Machine Weight
• Approx. 180 Kg

• Max Height
• 1200 mm

• Measuring Range
• 10 - 1000 ppb Ozone

• Mounting Type
• Free Standing

• Number of Specimens
• 6 - 8 Specimens Per Test Cycle

• Operating Voltage
• 220V AC

• Port Size
• 1/4 inch NPT

• Power Supply
• 220V AC, 50 Hz

• Resolution
• 1 ppb

• Response Time
• 30 seconds

• Specimen Size
• Each Up to 150 mm Length

• Temperature
• Room Temperature to 60C

• Test Range
• Adjustable Ozone Concentration from 10 to 1000 ppb

• Test Speed
• Adjustable (Programmable via Control Panel)

• Test Stroke
• 300 mm

• Test Width
• 300 mm

• Usage
• Laboratory, Research, Industrial Testing

• Equipment Type
• Salt Spray Chamber

• Accuracy
• 1.0 (Temperature), 3%RH (Humidity)

• Application
• Corrosion Resistance Salt Mist Test

• Automation Grade
• Semi-automatic

• Capacity
• 270 Liters

• Control Mode
• Microcomputer PID Control

• Display Type
• Digital LCD

• Features
• Over-temperature protection, low water alarm, transparent viewing window

• Frequency
• 50/60 Hz

• Gas Pressure
• 1.000.01 kgf/cm

• Hardness
• Chamber Body: High-strength PVC

• Humidity
• 95% RH or above

• Interface Type
• Standard Control Panel

• Machine Weight
• Approx. 110 kg

• Max Height
• 60 cm (Internal Height)

• Measuring Range
• pH 6.5~7.2 (Salt Solution)

• Mounting Type
• Floor-standing

• Number of Specimens
• Sample Holders Provided (varies by part size)

• Operating Voltage
• AC 220V

• Port Size
• 15 mm (Drainage), 6 mm (Spray Nozzle)

• Power Supply
• AC 220V, 50/60Hz

• Resolution
• 0.1 / 0.1% RH

• Response Time
• Immediate on Parameter Change

• Specimen Size
• Up to 400200 mm

• Temperature
• RT+5~50 (Chamber), RT+5~70 (Pressure Barrel)

• Test Range
• Continuous and Intermittent Spraying

• Test Speed
• 1~2 ml/80cm/h

• Test Stroke
• Adjustable

• Test Width
• 90 cm (Chamber Inner Length)

• Usage
• Laboratory and Industrial Quality Control

• Equipment Type
• Salt Spray Chamber

• Accuracy
• 2C

• Application
• Corrosion Resistance Testing

• Automation Grade
• Semi-Automatic

• Capacity
• 120 Liters

• Control Mode
• Digital Control Panel

• Display Type
• Digital With LED

• Features
• Double Walled Chamber, Non-corrosive body, Easy Drainage

• Frequency
• 50 Hz

• Gas Pressure
• 0.7-1.2 kg/cm

• Hardness
• High corrosion resistance

• Humidity
• Salt Solution Saturated - up to 95%

• Interface Type
• User Friendly Soft Touch Panel

• Machine Weight
• Approx. 75 kg

• Max Height
• 1100 mm

• Measuring Range
• 0 to 99 hours

• Mounting Type
• Floor Mounted

• Number of Specimens
• Up to 9

• Operating Voltage
• 220V AC

• Port Size
• 1/2 inch

• Power Supply
• 220V AC, 50 Hz

• Resolution
• 1C

• Response Time
• Immediate

• Specimen Size
• Max 150 x 70 mm

• Temperature
• Ambient to 50C

• Test Range
• Continuous testing (up to 99 hours)

• Test Speed
• Standard

• Test Stroke
• Customizable

• Test Width
• 600 mm

• Usage
• Industrial Testing

• Equipment Type
• High Temperature and Pressure Water Test Chamber

• Accuracy
• 0.5% FS for pressure, 1C for temperature

• Application
• Leakage test, Seal life test, Cycle test for piping/component evaluation

• Automation Grade
• Automatic

• Capacity
• 50 Litres

• Control Mode
• Programmable touch screen control

• Display Type
• Digital LCD with graphical interface

• Features
• Over-temperature, Over-pressure auto cutoff, Data logger, Remote monitoring, Test cycle programming

• Frequency
• 50/60 Hz

• Gas Pressure
• 0 10 bar (optional: up to 50 bar)

• Hardness
• Chamber body: Stainless steel 304, Hardness HRC 5863

• Humidity
• 30% 98% RH (controllable)

• Interface Type
• RS232 / USB data output

• Machine Weight
• Approx. 350 kg

• Max Height
• 1550 mm with control panel

• Measuring Range
• Pressure: 010 MPa, Temp: up to 150C

• Mounting Type
• Floor standing

• Number of Specimens
• 1 4 (customizable fixture available)

• Operating Voltage
• 220V AC

• Port Size
• 1/2 BSP/NPT

• Power Supply
• AC 220V, 50/60Hz, Single phase

• Resolution
• 0.01 MPa / 0.1C

• Response Time
• <1 second

• Specimen Size
• Up to 150mm (customizable)

• Temperature
• Ambient to 150C (higher ranges optional)

• Test Range
• Pressure: 0 10 MPa, Temp: up to 150C

• Test Speed
• Adjustable 0.1 10 mm/min

• Test Stroke
• 0 250 mm

• Test Width
• 300 mm

• Usage
• Water-proof or endurance test under high/low temperature and pressure environments

• Equipment Type
• Heat Shock Testing Chamber

• Accuracy
• 0.5C; 2%RH

• Application
• Thermal cycling, reliability testing for electronics, components, and materials

• Automation Grade
• Automatic

• Capacity
• 100 L

• Control Mode
• Programmable Digital Controller

• Display Type
• Touchscreen digital display

• Features
• Programmable cycles, over-temperature and humidity protection, observation window, safety features

• Frequency
• 50Hz

• Gas Pressure
• 0.5-0.8 MPa

• Hardness
• Robust stainless steel chamber

• Humidity
• 20%~98%RH

• Interface Type
• RS232/USB

• Machine Weight
• Approx. 350 kg

• Max Height
• 1800 mm (External)

• Measuring Range
• -70C to +150C, 20%~98%RH

• Mounting Type
• Floor-standing

• Number of Specimens
• 1~30 (Adjustable)

• Operating Voltage
• AC 220V/230V

• Port Size
• DN 50 mm

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1C; 0.1%RH

• Response Time
• Rapid temperature change rate 3C/min or higher

• Specimen Size
• Up to 250mm x 250mm

• Temperature
• -70C to +150C

• Test Range
• Wider programmable thermal range

• Test Speed
• Selectively programmable

• Test Stroke
• Customized depending on application

• Test Width
• 350 mm

• Usage
• Laboratory, QA, R&D

• Equipment Type
• Rain spray testing chamber

• Accuracy
• 5%

• Application
• Water resistance and leakage testing for materials and components

• Automation Grade
• Automatic

• Capacity
• 120 L

• Control Mode
• Digital controller / Programmable Touch Panel

• Display Type
• Digital LED Display

• Features
• Adjustable rainfall intensity, programmable timer, chamber inspection window, corrosion resistant interior

• Frequency
• 50Hz

• Gas Pressure
• 0.2 ~ 0.5 MPa

• Hardness
• Corrosion-resistant chamber material

• Humidity
• 20% ~ 98% RH

• Interface Type
• RS232

• Machine Weight
• 180 kg

• Max Height
• 1300 mm

• Measuring Range
• Rainfall intensity 1 to 10 mm/min

• Mounting Type
• Floor standing

• Number of Specimens
• Up to 4

• Operating Voltage
• AC 220V

• Port Size
• DN15

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1 mm/min

• Response Time
• 1 s

• Specimen Size
• Max 500 x 500 mm

• Temperature
• Room temperature to 60C

• Test Range
• Specimen dimension within chamber limits

• Test Speed
• Adjustable, up to 60 mm/min

• Test Stroke
• Max 300 mm

• Test Width
• 600 mm

• Usage
• Rain spray test, waterproof testing, material protection evaluation

• Equipment Type
• High Temperature Melt Furnace Chamber

• Accuracy
• 1C

• Application
• Melting, heat treatment, material research

• Automation Grade
• Semi-automatic

• Capacity
• Up to 2 Liters

• Control Mode
• Digital PID controller

• Display Type
• Digital LCD

• Features
• High-temperature insulation, rapid heating, safety interlocks

• Frequency
• 50/60 Hz

• Gas Pressure
• Max. 0.8 MPa

• Hardness
• Refractory chamber ceramic lining

• Humidity
• 95% RH non-condensing

• Interface Type
• RS485

• Machine Weight
• Approx. 120 kg

• Max Height
• 850 mm

• Measuring Range
• 0 - 1700C

• Mounting Type
• Floor-standing

• Number of Specimens
• 1-3

• Operating Voltage
• 220V

• Port Size
• DN40

• Power Supply
• AC 220V, 50/60Hz

• Resolution
• 0.1C

• Response Time
• < 3 seconds

• Specimen Size
• Diameter: 20-80mm, Height: max 100mm

• Temperature
• Ambient to 1700C

• Test Range
• 0 - 1700C

• Test Speed
• 1 - 50 mm/min (adjustable)

• Test Stroke
• Up to 400 mm

• Test Width
• 100 mm

• Usage
• Laboratory & industrial repeatable melting tests

• Equipment Type
• Thermal Cycle Test Chamber

• Accuracy
• Temperature 0.5C; Humidity 2% RH

• Application
• Automotive, Electronics, Materials Thermal Cycle Testing

• Automation Grade
• Automatic

• Capacity
• 120 L

• Control Mode
• Touchscreen PLC control

• Display Type
• 7 Color Touchscreen HMI

• Features
• Rapid temperature change, programmable cycling, USB data export, alarm system

• Frequency
• 50 Hz

• Gas Pressure
• Up to 0.8 MPa

• Hardness

• Humidity
• 20% RH 98% RH (controlled)

• Interface Type
• USB, RS232

• Machine Weight
• Approx. 270 kg

• Max Height
• Approx. 1600 mm (with caster)

• Measuring Range
• 0.1100 cycles/min, -40C to +150C

• Mounting Type
• Floor Standing

• Number of Specimens
• 16 pcs (configurable)

• Operating Voltage
• 220 V AC

• Port Size
• DN25 (inlet/outlet)

• Power Supply
• AC 220V 10%, 50Hz

• Resolution
• 0.1C; 0.1% RH

• Response Time
• 5 seconds

• Specimen Size
• up to 300 mm x 300 mm

• Temperature
• -40C to +150C (accuracy 0.5C)

• Test Range
• -40C ~ +150C cycling

• Test Speed
• 0.1100 cycles/min (adjustable)

• Test Stroke
• up to 300 mm

• Test Width
• 300 mm

• Usage
• Thermal cycle durability, product reliability testing

• Equipment Type
• Corrosion Testing Chamber

• Accuracy
• 1C (Temperature), 2% RH (Humidity)

• Application
• Corrosion resistance and surface coating testing

• Automation Grade
• Semi-Automatic / Automatic

• Capacity
• 60, 120, 250, 450 Litre (varies with model)

• Control Mode
• Microprocessor based Digital Control

• Display Type
• Digital LED Display

• Features
• Double Walled Construction, Auto Water Refill, Safety Thermostat, Programmable Cycle Timer

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.8 - 2.0 Bar (adjustable)

• Hardness
• N.A. (not applicable to this equipment)

• Humidity
• 95% - 100% RH inside chamber

• Interface Type
• Standard electrical terminals

• Machine Weight
• Approx. 45-80 kg (depending on model)

• Max Height
• 900 mm (depending on model)

• Measuring Range
• 0 to 1000 hours exposure

• Mounting Type
• Floor Standing

• Number of Specimens
• 6 to 50 (depending on rack configuration)

• Operating Voltage
• 220V 50Hz AC

• Port Size
• Standard 10 mm Air Inlet

• Power Supply
• 220V AC, 50 Hz, Single Phase

• Resolution
• 0.1C, 1% RH

• Response Time
• Instant display; test environment stabilization within 30 min

• Specimen Size
• Max 150 x 75 mm per rack

• Temperature
• Ambient to 47C 1C

• Test Range
• Upto 999 hours (timer based)

• Test Speed
• Adjustable (as per test requirements)

• Test Stroke
• Continuous (as per chamber size)

• Test Width
• 400 mm, 600 mm, 900 mm (varies with model)

• Usage
• Testing Paints, Coatings, Plating, Fasteners and Components

• Equipment Type
• UV Aging Environmental Test Chamber

• Accuracy
• 0.5C (temperature), 2% RH (humidity)

• Application
• Simulating the damaging effects of long-term outdoor UV exposure on materials

• Automation Grade
• Automatic

• Capacity
• 351 liters

• Control Mode
• Programmable touchscreen controller

• Display Type
• Digital LCD touchscreen

• Features
• Irradiance control, adjustable test parameters, safety protection system, timer function

• Frequency
• 50 Hz

• Gas Pressure
• Ambient

• Hardness
• N/A (not applicable)

• Humidity
• 40% RH to 98% RH adjustable

• Interface Type
• RS232/USB

• Machine Weight
• 180 kg

• Max Height
• 1600 mm

• Measuring Range
• UV wavelength 290400 nm

• Mounting Type
• Floor standing

• Number of Specimens
• Up to 24 pieces

• Operating Voltage
• AC 220V

• Port Size
• Standard

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1C (temperature), 0.1% RH (humidity)

• Response Time
• Immediate

• Specimen Size
• 75x150 mm (standard)

• Temperature
• RT+10C to 70C (control range)

• Test Range
• UV aging simulation

• Test Speed
• Adjustable

• Test Stroke
• 250 mm

• Test Width
• 450 mm

• Usage
• Laboratory, Research Institutes, Material Quality Testing

• Equipment Type
• Walk-In Environmental Test Chamber

• Accuracy
• 0.5C (Temperature), 2% RH (Humidity)

• Application
• Stability, Reliability, Endurance, and Aging Testing

• Automation Grade
• Automatic

• Capacity
• 5000 Liters to 20000 Liters (varies as per model)

• Control Mode
• PLC / Programmable Controller

• Display Type
• Touchscreen TFT Display

• Features
• Programmable profile, Over-temperature protection, Safety interlock, Viewing Window

• Frequency
• 50Hz

• Gas Pressure
• Adjustable, up to 1.2 MPa

• Hardness
• Heavy gauge powder-coated steel body

• Humidity
• 20% RH ~ 98% RH (Controllable)

• Interface Type
• RS232 / USB / Ethernet

• Machine Weight
• 1500 kg (approx)

• Max Height
• 2.3 m (Chamber internal)

• Measuring Range
• Temperature: -40 to +85C, Humidity: 20% to 98% RH

• Mounting Type
• Floor standing

• Number of Specimens
• Multiple, customizable racks

• Operating Voltage
• 380V AC

• Port Size
• DN 50 mm

• Power Supply
• AC 380V, 50Hz, 3 Phase

• Resolution
• 0.1C / 0.1% RH

• Response Time
• Rapid response, <5 min to setpoint

• Specimen Size
• Customisable as per chamber dimensions

• Temperature
• -40C to +85C

• Test Range
• Temperature & Humidity Cyclic Test

• Test Speed
• Programmable, up to 5C/min (Heating / Cooling)

• Test Stroke
• Customizable as per testing requirements

• Test Width
• Customizable, standard 2 m

• Usage
• Environmental simulation testing

• Equipment Type
• Sand Dust Test Chamber

• Accuracy
• 2%

• Application
• Simulation of Dust/Sand Environmental Conditions

• Automation Grade
• Automatic

• Capacity
• 150 liters

• Control Mode
• PLC Touch screen

• Display Type
• Digital LCD

• Features
• Programmable, automatic cycle, safety lock, observation window

• Frequency
• 50Hz

• Gas Pressure
• 0.1 1.0 MPa

• Hardness
• Chamber material: Stainless Steel 304

• Humidity
• <30% RH (adjustable)

• Interface Type
• RS232/USB

• Machine Weight
• Approx. 150 kg

• Max Height
• 1200 mm

• Measuring Range
• 0 9999 mg/m

• Mounting Type
• Floor standing

• Number of Specimens
• 1 8 (adjustable)

• Operating Voltage
• 220V

• Port Size
• 50 mm

• Power Supply
• 220V/50Hz

• Resolution
• 0.1 mg/m

• Response Time
• <2 seconds

• Specimen Size
• Up to 400 mm 400 mm

• Temperature
• Room temperature to 65C

• Test Range
• Customizable

• Test Speed
• 0.5 5 m/s (adjustable)

• Test Stroke
• 300 mm

• Test Width
• 400 mm

• Usage
• Dust resistance and sand durability testing

• Equipment Type
• UV Weathering Test Machine

• Accuracy
• 0.5C (Temp), 3% RH (Humidity)

• Application
• Accelerated weathering testing of plastics, coatings, rubber, automotive, electronics, etc.

• Automation Grade
• Automatic

• Capacity
• Standard

• Control Mode
• Microcomputer PID Control

• Display Type
• Digital Touchscreen Display

• Features
• Programmable cycles, UV lamp protection, water spray, and condensation simulation

• Frequency
• 50 Hz

• Gas Pressure
• 0.6 MPa

• Hardness
• Robust steel chamber

• Humidity
• 40% - 98% RH

• Interface Type
• RS232/USB

• Machine Weight
• Approx 120 kg

• Max Height
• 1600 mm

• Measuring Range
• UV irradiance 0~1.2 W/m

• Mounting Type
• Floor-standing

• Number of Specimens
• Up to 48

• Operating Voltage
• 220 V

• Port Size
• Standard

• Power Supply
• AC 220V 50Hz

• Resolution
• 0.1C

• Response Time
• Immediate

• Specimen Size
• 75 mm x 150 mm

• Temperature
• RT+10C to 70C

• Test Range
• UV, light, rain, and temperature simulation

• Test Speed
• Adjustable

• Test Stroke
• 400 mm

• Test Width
• 600 mm

• Usage
• Laboratory & Industrial

• Equipment Type
• Walk-In Test Chamber

• Accuracy
• 0.5C (Temperature), 3% RH (Humidity)

• Application
• Environmental simulation, stability, aging, and reliability testing

• Automation Grade
• Fully automatic

• Capacity
• Large-volume walk-in chamber design

• Control Mode
• Programmable PLC controller

• Display Type
• 7-inch Color Touch Screen

• Features
• Energy efficient, robust insulation, safety interlock, programmable controls, data logging

• Frequency
• 50 Hz

• Gas Pressure
• Atmospheric or customized settings (optional)

• Humidity
• 20% RH to 98% RH

• Interface Type
• USB, Ethernet

• Machine Weight
• Approx. 2000 Kg

• Max Height
• 2500 mm (customizable)

• Measuring Range
• Temperature: -70C to +150C; Humidity: 20%-98% RH

• Mounting Type
• Floor standing, modular construction

• Number of Specimens
• Customizable, standard up to 50

• Operating Voltage
• 380V/415V AC, 3 phase

• Port Size
• Multiple cable and sensor ports, 100mm/150mm

• Power Supply
• 3 Phase, 415V/50Hz

• Resolution
• 0.1C (Temperature), 0.1% RH (Humidity)

• Response Time
• Within 5 min for temperature shift

• Specimen Size
• Variable as per test requirement

• Temperature
• -70C to +150C

• Test Range
• Simulates real environmental conditions

• Test Speed
• Adjustable, 1-60 cycles/min

• Test Stroke
• Standard 600 mm (customizable)

• Test Width
• Customizable, standard 1500 mm

• Usage
• Testing electronics, automotive parts, aerospace assemblies

• Equipment Type
• Anti-Yellowing Aging Tester

• Accuracy
• 0.5C

• Application
• For anti-yellowing and aging test of rubber, leather, plastic, and other materials

• Automation Grade
• Semi-automatic

• Capacity
• Suits multiple materials

• Control Mode
• Digital programmable control

• Display Type
• Digital LCD

• Features
• Automatic alarm, digital timer, overheat protection

• Frequency
• 50/60 Hz

• Gas Pressure
• No external gas required

• Humidity
• <65% RH

• Interface Type
• User-friendly keypad

• Machine Weight
• Approx. 80 kg

• Max Height
• 350 mm

• Measuring Range
• Adjustable (up to 200C)

• Mounting Type
• Desktop

• Number of Specimens
• 2-6

• Operating Voltage
• 220V

• Port Size
• Standard (customizable)

• Power Supply
• AC 220V/50Hz

• Resolution
• 0.1C

• Response Time
• Instant

• Specimen Size
• 75150 mm or as required

• Temperature
• Room temp. to 200C (adjustable)

• Test Range
• 0~200C

• Test Speed
• 605 cycles/min

• Test Stroke
• 60 mm

• Test Width
• 40 mm

• Usage
• Accelerated aging and yellowing testing

• Equipment Type
• Anti-yellowing Aging Testing Machine

• Accuracy
• 1C

• Application
• Rubber, plastic, leather, footwear material testing

• Automation Grade
• Semi-automatic

• Capacity
• Heated air circulation: 300~400 L/min

• Control Mode
• Digital touch panel

• Display Type
• Digital LCD

• Features
• Automatic timer, Overheating protection, Continuous operation

• Frequency
• 50 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 40~80% RH (adjustable)

• Interface Type
• User-friendly soft touch control

• Machine Weight
• Approx. 70 kg

• Max Height
• 500 mm

• Measuring Range
• Yellowing and color change under heating

• Mounting Type
• Table-top

• Number of Specimens
• Up to 24

• Operating Voltage
• 220V

• Port Size
• Standard air inlet, 8 mm

• Power Supply
• AC 220V, 50Hz

• Resolution
• 1C

• Response Time
• Within 5 seconds

• Specimen Size
• 75 x 150 mm

• Temperature
• Room temperature to 200C (adjustable)

• Test Range
• Color aging, yellowing resistance

• Test Speed
• 50~200 mm/min

• Test Stroke
• 150 mm

• Test Width
• 250 mm

• Usage
• Laboratory, Quality Control

• Equipment Type
• Rain Spray Test Room

• Accuracy
• 2% of set flowrate

• Application
• IEC60529 IPX3/IPX4 Protection Rating Test

• Automation Grade
• Automatic

• Capacity
• Suitable for large electronic appliances

• Control Mode
• Programmable Touchscreen Display

• Display Type
• Digital Touchscreen

• Features
• Automatic water supply, programmable oscillation, cycle time setting, leakage detection

• Frequency
• 50 Hz

• Gas Pressure
• Not Applicable (Water-based System)

• Humidity
• Ambient, non-controlled

• Interface Type
• RS232, USB

• Machine Weight
• Approx. 1800 kg

• Max Height
• 2400 mm

• Measuring Range
• Flowrate: 0~25 L/min

• Mounting Type
• Floor Standing

• Number of Specimens
• Up to 6 specimens simultaneously

• Operating Voltage
• 220V AC

• Port Size
• DN25 (25 mm diameter)

• Power Supply
• AC 220V, 50 Hz

• Resolution
• 0.1 L/min

• Response Time
• Real-time monitoring

• Specimen Size
• Max 600 mm diameter, height adjustable

• Temperature
• Ambient, 10~35C

• Test Range
• IPX3 & IPX4 (Water spray angles 60 & oscillating tube)

• Test Speed
• Adjustable, 1-5 rpm (rotation speed)

• Test Stroke
• Up to 1000 mm

• Test Width
• 1500 mm

• Usage
• Water ingress protection testing

• Equipment Type
• Environmental Test Chamber

• Accuracy
• 0.5C, 2.5% RH

• Application
• Reliability and stress testing of electronic and industrial components

• Automation Grade
• Automatic

• Capacity
• 150 L

• Control Mode
• Programmable digital controller

• Display Type
• Digital touchscreen display

• Features
• Programmable cycles, over-temperature alarm, stainless steel chamber

• Frequency
• 50 Hz

• Gas Pressure
• Ambient/Atmospheric

• Humidity
• 30%~98% RH (programmable)

• Interface Type
• RS232, USB

• Machine Weight
• Approx. 160 kg

• Max Height
• 1850 mm

• Measuring Range
• Temperature and humidity programmable range

• Mounting Type
• Floor standing

• Number of Specimens
• Multiple (configurable depending on tray arrangement)

• Operating Voltage
• 220V AC

• Port Size
• 50 mm

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.01C / 0.1% RH

• Response Time
• Within 3 seconds

• Specimen Size
• Customizable / standard shelves: 450 x 450 mm

• Temperature
• -40C to +150C

• Test Range
• Wide environmental range

• Test Speed
• 0.1C~5C/min (programmable)

• Test Stroke
• 400 mm

• Test Width
• 450 mm

• Usage
• Laboratory and Industrial Use

• Equipment Type
• UV Lamp Environment Tester

• Accuracy
• 0.01 W/m

• Application
• Accelerated weathering, UV resistance testing of materials

• Automation Grade
• Semi-automatic

• Capacity
• 2 kW

• Control Mode
• Programmable digital controller

• Display Type
• LCD digital display

• Features
• Automatic water spray, temperature & humidity control, over-temp protection

• Frequency
• 50Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 40~98% RH (controllable)

• Interface Type
• RS232

• Machine Weight
• 48 kg

• Max Height
• 1420 mm

• Measuring Range
• UV intensity: 0~1.2 W/m

• Mounting Type
• Floor standing

• Number of Specimens
• up to 24

• Operating Voltage
• 220V

• Port Size
• DN15

• Power Supply
• AC 220V10%, 50Hz

• Resolution
• 0.01 W/m

• Response Time
• <3 s

• Specimen Size
• 75 x 150 mm (standard)

• Temperature
• RT+10C~70C

• Test Range
• UV aging testing

• Test Speed
• 0~1.5 m/min adjustable

• Test Stroke
• 400 mm

• Test Width
• 220 mm

• Usage
• Material durability lab testing

• Equipment Type
• Environment Thermal Shock Chamber

• Accuracy
• 1C

• Application
• Rapid temperature cycling test for electronics and materials

• Automation Grade
• Fully Automatic

• Capacity
• 150 liters

• Control Mode
• Programmable digital PLC control

• Display Type
• Digital LCD Touchscreen

• Features
• Stainless steel inner chamber, programmable controller, automatic defrost function

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.4 - 0.7 MPa

• Humidity
• 20% to 98% RH

• Interface Type
• USB, RS232

• Machine Weight
• Approx. 450 kg

• Max Height
• 1600 mm

• Measuring Range
• -70C to +150C

• Mounting Type
• Floor standing

• Number of Specimens
• Up to 24

• Operating Voltage
• 220V AC

• Port Size
• Standard 3/4

• Power Supply
• AC 220V, 50/60Hz

• Resolution
• 0.1C

• Response Time
• 5 min to reach setpoint

• Specimen Size
• Customized, Max 200mm (W) x 200mm (H)

• Temperature
• -70C to +150C

• Test Range
• -70C to +150C

• Test Speed
• Up to 5C/min

• Test Stroke
• Variable, up to 400 mm

• Test Width
• 600 mm

• Usage
• Material testing, research laboratories

• Equipment Type
• Constant Temperature Humidity Test Chamber

• Accuracy
• 0.5C, 2% RH

• Application
• Environmental Testing, Reliability Testing

• Automation Grade
• Fully Automatic

• Capacity
• 80L to 1000L (varies by model)

• Control Mode
• Digital PID Controller

• Display Type
• Touchscreen LCD Display

• Features
• Programmable cycles, Observation window, Alarm system, Data logging

• Frequency
• 50Hz

• Gas Pressure
• Ambient

• Humidity
• 20% to 98% RH

• Interface Type
• USB & RS485 Communication Ports

• Machine Weight
• Approx. 200 kg

• Max Height
• Dependent on model, up to 2000 mm

• Measuring Range
• Temperature & Humidity

• Mounting Type
• Floor Standing

• Number of Specimens
• Multiple, depends on chamber size

• Operating Voltage
• 220-240V

• Port Size
• Standard: 50 mm (customizable)

• Power Supply
• 230V AC, 50Hz

• Resolution
• 0.1C / 0.1% RH

• Response Time
• Within 5 minutes

• Specimen Size
• Flexible as per tray size

• Temperature
• -40C to +150C

• Test Range
• Wide programmable range

• Test Speed
• Programmable

• Test Stroke
• Available on request

• Test Width
• Customizable as per chamber size

• Usage
• Laboratory / Industrial

• Equipment Type
• Programmable Thermal Shock Chamber

• Accuracy
• 0.5C (temperature), 2.5% RH (humidity)

• Application
• Reliability testing for electronics, automotive components, and materials

• Automation Grade
• Fully Automatic

• Capacity
• 100 liters

• Control Mode
• Touchscreen PLC Controller

• Display Type
• 7-inch color touchscreen display

• Features
• Programmable cycles, password protection, alarm system

• Frequency
• 50Hz

• Gas Pressure
• Ambient atmospheric

• Humidity
• 20% to 98% RH (programmable)

• Interface Type
• RS232/USB/Ethernet

• Machine Weight
• Approx. 600 kg

• Max Height
• 1800 mm (chamber exterior)

• Measuring Range
• -40C to +150C, 20% to 98% RH

• Mounting Type
• Floor Mounted

• Number of Specimens
• 2 trays standard (customization available)

• Operating Voltage
• Single Phase 220V 50Hz

• Port Size
• Standard chamber connection

• Power Supply
• AC 220V / 50Hz

• Resolution
• 0.1C / 0.1% RH

• Response Time
• Within 5 minutes between hot/cold zones

• Specimen Size
• Maximum 300x300x200 mm each

• Temperature
• -40C to +150C

• Test Range
• Thermal cycling from low to high temperature (full programmable range)

• Test Speed
• Programmable cycling (customizable)

• Test Stroke
• Customized as per requirements

• Test Width
• 600 mm

• Usage
• Thermal shock/reliability cycling test

• Equipment Type
• Aging Test Instrument

• Accuracy
• 0.5%

• Application
• Yellowing Resistance Test for Rubber, Plastic, Leather, Textiles

• Automation Grade
• Semi-automatic

• Capacity
• Depends on tray size

• Control Mode
• Digital Control

• Display Type
• LED Digital Display

• Features
• Over-temperature protection, Timed test cycles

• Frequency
• 50 Hz

• Gas Pressure
• 0.5~0.7 MPa

• Humidity
• 40~70% RH

• Interface Type
• Standard Interface

• Machine Weight
• Approx. 55 kg

• Max Height
• 400 mm

• Measuring Range
• 0~100% Yellowing

• Mounting Type
• Bench Top

• Number of Specimens
• Up to 12 pcs

• Operating Voltage
• 220V

• Port Size
• 1/4 inch

• Power Supply
• AC 220V, 50Hz

• Resolution
• 0.1%

• Response Time
• <1 second

• Specimen Size
• 75 150 mm

• Temperature
• Room Temperature to 200C

• Test Range
• Aging & Yellowing Testing

• Test Speed
• 50 cycles/min

• Test Stroke
• 150 mm

• Test Width
• 300 mm

• Usage
• Laboratory Material Testing

• Equipment Type
• Constant Temperature and Humidity Chamber

• Accuracy
• 0.5C (Temp), 2% RH (Humidity)

• Application
• Environmental testing, reliability testing, thermal/humidity cycling

• Automation Grade
• Fully Automatic

• Capacity
• 400 L

• Control Mode
• Microprocessor PID control

• Display Type
• Digital TFT touch screen

• Features
• Programmable cycles, data logging, overheat and overhumidity protection

• Frequency
• 50/60Hz

• Gas Pressure
• 0.6 MPa

• Humidity
• 10%~98% RH

• Interface Type
• RS232, USB

• Machine Weight
• Approx. 250 kg

• Max Height
• 150 cm

• Measuring Range
• Temperature: -20C~80C; Humidity: 10%~98% RH

• Mounting Type
• Floor standing

• Number of Specimens
• Up to 50 specimens

• Operating Voltage
• 220-240V AC

• Port Size
• 60 mm

• Power Supply
• 220-240V AC, 50/60 Hz

• Resolution
• 0.1C / 0.1% RH

• Response Time
• 5 min for temperature and humidity stabilization

• Specimen Size
• 150 mm x 150 mm (max)

• Temperature
• -20C~+80C

• Test Range
• Temperature: -20C to +80C, Humidity: 10% to 98% RH

• Test Speed
• Variable, adjustable

• Test Stroke
• Max 500 mm

• Test Width
• 50 cm

• Usage
• Environmental Simulation

• Equipment Type
• Air Cooled Xenon Arc Weathering Test Chamber

• Accuracy
• 0.1C (temperature), 2.5% (humidity)

• Application
• Weathering, lightfastness, colorfastness testing of materials (paints, coatings, plastics, rubber, textiles, etc.)

• Automation Grade
• Automatic

• Capacity
• 420 Liter Internal Volume

• Control Mode
• Microprocessor-based PID Control

• Display Type
• 7 Touch Screen HMI

• Features
• Irradiance control, automatic water spray, programmable cycles, over-temperature protection, self-diagnosis

• Frequency
• 50 Hz / 60 Hz

• Gas Pressure
• 0.4 0.7 MPa (for air cooled system)

• Humidity
• 30% 98% RH, Programmable

• Interface Type
• RS232/USB

• Machine Weight
• Approximately 380 kg

• Max Height
• 1650 mm (external height)

• Measuring Range
• Wavelength: 290 800 nm

• Mounting Type
• Floor Standing

• Number of Specimens
• Standard: 30 60 depending on sample size

• Operating Voltage
• AC 220V Single Phase

• Port Size
• Standard 1 for air cooling system

• Power Supply
• AC 220V 10%, 50/60 Hz, Single Phase

• Resolution
• 0.01C Temperature, 0.1% RH Humidity

• Response Time
• Instantaneous (for sensor readings)

• Specimen Size
• Up to 100 300 mm each

• Temperature
• Chamber: RT +10C to 80C; Black Panel: up to 65C

• Test Range
• UV, Visible, and IR spectrum simulation

• Test Speed
• Programmable, up to 1020 cycles/day

• Test Stroke
• Variable (typically 50-150 mm)

• Test Width
• Standard Chamber Width: 50 cm

• Usage
• Accelerated aging/weathering simulation

• Equipment Type
• UV Weathering Test Chamber

• Accuracy
• Temperature 1C, Humidity 3%

• Application
• Artificial weathering aging test on plastics, coatings, paints, rubber, etc.

• Automation Grade
• Automatic

• Capacity
• Standard, up to 40 specimens

• Control Mode
• Digital Microprocessor Control

• Display Type
• Digital LED display

• Features
• Programmable cycles, safety protection, automatic water supply

• Frequency
• 50 Hz

• Gas Pressure
• N/A (not applicable for UV chambers)

• Humidity
• 20% - 98%, adjustable

• Interface Type
• RS232/USB

• Machine Weight
• 95 kg

• Max Height
• 1100 mm

• Measuring Range
• UV wavelength range: 280 nm ~ 400 nm

• Mounting Type
• Floor-standing

• Number of Specimens
• up to 40

• Operating Voltage
• 220V

• Port Size
• Standard 25 mm UV tube sockets

• Power Supply
• AC 220V, 50 Hz

• Resolution
• 0.1C temperature, 1% humidity

• Response Time
• Instantaneous (real-time display)

• Specimen Size
• 75 mm x 150 mm

• Temperature
• RT +10C~70C, programmable

• Test Range
• UV irradiation, condensation and temperature cycling

• Test Speed
• User-defined (typically 1~5 cycles/hour)

• Test Stroke
• 300 mm

• Test Width
• 400 mm

• Usage
• Accelerated UV aging and weathering testing

• Equipment Type
• Walk-in Temperature Humidity Testing Room

• Accuracy
• Temperature: 0.5C; Humidity: 2.5% RH

• Application
• Environmental simulation for electronics, automotive, aerospace, military, and material testing

• Automation Grade
• Automatic (Programmable)

• Capacity
• From 8 m up to 60 m or more (custom based on internal dimensions)

• Control Mode
• Programmable PID Controller (Touchscreen HMI)

• Display Type
• Digital LCD/LED Touchscreen

• Features
• Data logging, programmable cycles, fault alarms, overheat protection, observation window, interior lighting

• Frequency
• 50 Hz/60 Hz

• Gas Pressure
• N/A (Generally not supplied with high-pressure gas)

• Humidity
• 20% RH to 98% RH (2.5% RH accuracy)

• Interface Type
• Ethernet, RS-485/RS-232, USB

• Machine Weight
• Customized as per chamber size (typically 1000 kg - 3000 kg depending on volume)

• Max Height
• Custom up to 3000 mm internal chamber height

• Measuring Range
• Temperature & Humidity Based

• Mounting Type
• Floor Mounted

• Number of Specimens
• Multiple, as per chamber size (e.g., 10-50 or customized)

• Operating Voltage
• 380-415 V AC, 3 Phase

• Port Size
• 50 mm, 80 mm, or Custom (Cable Ports)

• Power Supply
• 3 Phase, 380-415 V, 50/60 Hz

• Resolution
• Temperature: 0.1C; Humidity: 0.1% RH

• Response Time
• Fast response, reaching setpoint within 25-60 minutes depending on size

• Specimen Size
• Up to 2000 mm x 2000 mm x 2000 mm (customized per chamber)

• Temperature
• -70C to +150C (0.5C accuracy)

• Test Range
• Temperature: -70C to 150C; Humidity: 20% RH to 98% RH

• Test Speed
• Temperature: 1 to 5C/min Ramp Rate, Humidity: Up to 5% RH/min

• Test Stroke
• N/A (Not applicable for climatic testing)

• Test Width
• Custom (commonly 2000 mm to 4000 mm internal width)

• Usage
• Laboratory and Industrial Testing

• Equipment Type
• Ventilation Type Aging Test Chamber

• Accuracy
• 1.0C (temperature), 3% RH (humidity)

• Application
• Accelerated material aging, heat and ventilation resistance testing

• Automation Grade
• Automatic

• Capacity
• 100 to 300 L (model dependent)

• Control Mode
• Digital Controller / Programmable Logic Controller (PLC)

• Display Type
• Digital LCD Display

• Features
• Ventilated air circulation, programmable temperature/humidity control, safety cut-off

• Frequency
• 50 Hz

• Gas Pressure
• Atmospheric / Adjustable air inflow

• Humidity
• 30% - 90% RH (Adjustable)

• Interface Type
• RS232/USB interface

• Machine Weight
• Approx. 250 kg

• Max Height
• 1500 mm

• Measuring Range
• 10C to 200C

• Mounting Type
• Floor-standing

• Number of Specimens
• 6-10 (varies with configuration)

• Operating Voltage
• 220V/50Hz

• Port Size
• 50 mm ventilation port

• Power Supply
• AC 220V/50Hz

• Resolution
• 0.1C

• Response Time
• 3 minutes

• Specimen Size
• Up to 300 x 300 mm

• Temperature
• Room temp. +10C to 200C

• Test Range
• Ambient to 200C

• Test Speed
• Standard, Adjustable

• Test Stroke
• Customizable, up to 300 mm

• Test Width
• 500 mm

• Usage
• Aging, durability and stability testing for plastics, rubber, electronic and industrial materials

• Equipment Type
• Dust Test Chamber

• Accuracy
• 2% RH and 1C

• Application
• Ingress protection (IP) dust resistance testing for electronics, automotive, and electrical components

• Automation Grade
• Fully automatic

• Capacity
• Approx. 400 liters

• Control Mode
• Digital programmable controller

• Display Type
• LCD Touch Screen

• Features
• Programmable dust flow, observation window, emergency stop, safety alarms

• Frequency
• 50Hz

• Gas Pressure
• 0.4 - 0.7 MPa

• Humidity
• 30% - 90% RH adjustable

• Interface Type
• RS232 / USB

• Machine Weight
• Approx. 250 kg

• Max Height
• 1700 mm

• Measuring Range
• Programmable time and dust cycle

• Mounting Type
• Floor standing

• Number of Specimens
• 1~6 pieces

• Operating Voltage
• 220V single phase

• Port Size
• 80 mm

• Power Supply
• 220V AC, 50Hz

• Resolution
• 0.1C / 0.1% RH

• Response Time
• <3 seconds

• Specimen Size
• Max 300(W) 300(D) 350(H) mm

• Temperature
• Ambient to 50C adjustable

• Test Range
• Standard and custom test programs

• Test Speed
• Variable, adjustable

• Test Stroke
• 600 mm

• Test Width
• 500 mm

• Usage
• Laboratory, industrial testing

• Equipment Type
• Water Shower Test Chamber

• Accuracy
• 5%

• Application
• Ingress protection (IPX5, IPX6) test for electrical/electronic products

• Automation Grade
• Automatic

• Capacity
• Depends on chamber size, approx. 0.52 m

• Control Mode
• Programmable touch screen controller

• Display Type
• LCD touchscreen display

• Features
• Stainless steel construction, programmable, safety cut-off, glass observation window

• Frequency
• 50Hz

• Gas Pressure
• Not applicable (uses water pressure)

• Humidity
• Ambient

• Interface Type
• RS232/USB (optional)

• Machine Weight
• Approx. 150 kg (varies with model)

• Max Height
• Chamber height up to 1200 mm (customizable)

• Measuring Range
• Flow rate 0120 L/min

• Mounting Type
• Floor standing

• Number of Specimens
• 1 per test (rotating turntable)

• Operating Voltage
• 220V AC

• Port Size
• DN15 (G1/2)

• Power Supply
• AC 220V, 50Hz (other voltages available on request)

• Resolution
• 0.1 L/min

• Response Time
• <2 s

• Specimen Size
• Max. 500 x 500 mm (customizable)

• Temperature
• Ambient (water temperature 10C40C)

• Test Range
• IPX5 and IPX6 waterproof testing

• Test Speed
• 12.5 0.5 L/min (IPX5), 100 5 L/min (IPX6)

• Test Stroke
• Adjustable (range depends on turntable size)

• Test Width
• Customizable, standard ring diameter 200 mm (IPX5) / 120 mm (IPX6)

• Usage
• IP waterproof testing

• Equipment Type
• Thermal Cycle Chamber High Temperature Tester

• Accuracy
• 0.5C (Temperature), 2.5%RH (Humidity)

• Application
• Thermal cycling, reliability test, materials aging

• Automation Grade
• Automatic

• Capacity
• 225 liters

• Control Mode
• Programmable Touchscreen Controller

• Display Type
• Digital LED/Touchscreen

• Features
• Programmable, automatic temperature/humidity control, data logging

• Frequency
• 50/60 Hz

• Gas Pressure
• 0.4~0.7 MPa

• Humidity
• 20% ~ 98% RH adjustable

• Interface Type
• RS232 / USB / Ethernet

• Machine Weight
• Approx. 300 kg

• Max Height
• 1300 mm

• Measuring Range
• Temperature and humidity spectrum as stated

• Mounting Type
• Floor mounted

• Number of Specimens
• Up to 6

• Operating Voltage
• 220V AC

• Port Size
• 1 inch

• Power Supply
• AC 220V/50Hz

• Resolution
• 0.1C / 0.1% RH

• Response Time
• Within 5 minutes

• Specimen Size
• Customizable; Standard: 100100 mm

• Temperature
• -70C to +150C

• Test Range
• -70C to +150C, 20% ~ 98% RH

• Test Speed
• Standard cycle adjustable (0.5~2 cycles/min)

• Test Stroke
• 300 mm

• Test Width
• 450 mm

• Usage
• Laboratory, industrial material testing

• Equipment Type
• Temperature & Humidity Chamber

• Accuracy
• 0.5C, 2.5% RH

• Application
• Environmental Testing, Aging Test, Stability Testing

• Automation Grade
• Automatic

• Capacity
• 150 L

• Control Mode
• Programmable Controller (Touch Screen)

• Display Type
• Digital LCD Touchscreen

• Features
• Programmable, Overheat Protection, Data Logging

• Frequency
• 50 Hz

• Gas Pressure
• Atmospheric

• Humidity
• 20% ~ 98% RH (Adjustable)

• Interface Type
• RS232/USB

• Machine Weight
• 320 kg

• Max Height
• 1200 mm

• Measuring Range
• -40C to 150C, 20%~98% RH

• Mounting Type
• Floor Standing

• Number of Specimens
• 1~3 (Depending on size)

• Operating Voltage
• 220V

• Port Size
• 50 mm dia (cable port)

• Power Supply
• 220V AC, 50Hz

• Resolution
• 0.1C, 0.1% RH

• Response Time
• Within 5 minutes

• Specimen Size
• Customizable

• Temperature
• -40C ~ +150C

• Test Range
• Temperature and Humidity

• Test Speed
• 0.5~5C/min (Adjustable)

• Test Stroke
• 600 mm

• Test Width
• 500 mm

• Usage
• Industrial, Laboratory

• Equipment Type
• Thermal Shock Test Chamber

• Accuracy
• 0.5C

• Application
• Reliability testing of electronics, automotive, aerospace components

• Automation Grade
• Fully automatic

• Capacity
• 150 L

• Control Mode
• Programmable logic controller (PLC)

• Display Type
• Touchscreen digital display

• Features
• Window observation, safety protection, data logging, two-zone rapid transfer

• Frequency
• 50 Hz

• Humidity
• 10% RH ~ 98% RH (adjustable)

• Interface Type
• RS232, USB

• Machine Weight
• Approx. 300 Kg

• Max Height
• 1200 mm

• Measuring Range
• -40C to +150C

• Mounting Type
• Floor-standing

• Number of Specimens
• Up to 10

• Operating Voltage
• 230 V AC

• Port Size
• 50 mm

• Power Supply
• 230 V AC, 50 Hz

• Resolution
• 0.1C

• Response Time
• 5 min (temperature transfer)

• Specimen Size
• Up to 150 x 150 mm

• Temperature
• -40C to +150C

• Test Range
• -40C to +150C

• Test Speed
• Up to 5 cycles/hour

• Test Stroke
• Customizable as per requirements

• Test Width
• 600 mm

• Usage
• Thermal shock and environmental testing

• Equipment Type
• Water Drop Test Chamber

• Accuracy
• 0.05 mm/min

• Application
• Ingress protection (IPX1, IPX2) drip water test for electrical and electronic enclosures

• Automation Grade
• Semi-automatic

• Capacity
• Custom / as per chamber size

• Control Mode
• Digital touch panel

• Display Type
• Digital LCD

• Features
• Programmable timer, adjustable drip height, safety interlock, stainless steel construction

• Frequency
• 50 Hz

• Humidity
• Ambient

• Interface Type
• Manual/Touchscreen control

• Machine Weight
• Approx. 90 kg

• Max Height
• Approx. 1000 mm

• Measuring Range
• 0~10 mm/min drip flow

• Mounting Type
• Floor standing

• Number of Specimens
• 1 (customizable on request)

• Operating Voltage
• 220V AC

• Port Size
• 16 mm (spray port diameter)

• Power Supply
• 220V AC, 50 Hz

• Resolution
• 0.01 mm/min

• Response Time
• Instantaneous

• Specimen Size
• Max 400 mm x 400 mm

• Temperature
• Room temperature (non-heated)

• Test Range
• IPX1 and IPX2 drip tests

• Test Speed
• Adjustable, standard 1 mm/min (drip rate)

• Test Stroke
• Up to 200 mm (drip pan travel)

• Test Width
• 400 mm x 600 mm

• Usage
• IP protection standard water ingress testing

• Equipment Type
• Salt Spray Test Chamber

• Accuracy
• 1C (temperature), 2% RH (humidity)

• Application
• Corrosion Testing of Coatings, Metals, Paints, etc.

• Automation Grade
• Automatic

• Capacity
• 108 L

• Control Mode
• Digital PID Controller

• Display Type
• Digital Display

• Features
• Double Walled, Insulated, SS 316 Construction, Transparent Hood

• Frequency
• 50 Hz

• Gas Pressure
• 1.00 0.01 kg/cm

• Hardness
• SS304/SS316 grade construction

• Humidity
• 98% RH

• Interface Type
• Push Button/Touch Control

• Machine Weight
• Approx. 65 kg

• Max Height
• 510 mm (chamber height)

• Measuring Range
• 1 to 72 hours (or more depending on specimen)

• Mounting Type
• Floor

• Number of Specimens
• Upto 30 (variable based on size)

• Operating Voltage
• 230 V

• Port Size
• 1/4 inch BSP

• Power Supply
• 230V AC, 50Hz

• Resolution
• 0.1C

• Response Time
• Immediate

• Specimen Size
• 75150 mm (customizable)

• Temperature
• Ambient to 47C

• Test Range
• Continuous Salt Spray Corrosion

• Test Width
• 600 mm

• Usage
• Laboratory & Industrial Testing

• Accuracy
• 2 nm

• Application
• UV aging and resistance testing of materials

• Automation Grade
• Automatic

• Capacity
• 3 kVA

• Control Mode
• Microprocessor based digital control

• Display Type
• Digital LCD

• Features
• Programmable timer, auto shutdown, intensity adjustment

• Frequency
• 50 Hz

• Gas Pressure
• 0.1 0.7 MPa

• Humidity
• 30% 95% RH

• Interface Type
• RS232 / USB

• Machine Weight
• Approx. 18 kg

• Max Height
• 350 mm

• Measuring Range
• 200 400 nm (UVA band)

• Mounting Type
• Benchtop

• Number of Specimens
• Up to 6

• Operating Voltage
• 220V / 240V AC

• Port Size
• Standard 6 mm compression

• Power Supply
• 220V AC, 50Hz

• Resolution
• 0.1 nm

• Response Time
• <2 seconds

• Specimen Size
• 75 mm x 150 mm

• Temperature
• 5 50C

• Test Range
• 1 6 specimens

• Test Speed
• 0.1 100 mm/min adjustable

• Test Stroke
• 0-500 mm

• Test Width
• 120 mm

• Usage
• Laboratory / Industrial

• Equipment Type
• Water Immersion Test Chamber

• Accuracy
• 1 mm (immersion depth)

• Application
• IPX7, IPX8 water resistance testing for product certification and quality assurance

• Automation Grade
• Semi-automatic

• Capacity
• 60 liters

• Control Mode
• Digital control panel

• Display Type
• Digital LCD display

• Features
• Adjustable immersion depth, transparent acrylic tank, sample holder

• Frequency
• 50 Hz

• Humidity
• Ambient, not actively controlled

• Interface Type
• Push button/Touch panel

• Machine Weight
• About 120 kg

• Max Height
• 1200 mm

• Measuring Range
• 0 to 1000 mm immersion depth

• Mounting Type
• Floor standing

• Number of Specimens
• 1-3 samples per cycle

• Operating Voltage
• 220V

• Port Size
• Standard water inlet 1/2 inch

• Power Supply
• AC 220V 50Hz

• Resolution
• 1 mm

• Response Time
• Immediate (manual start/stop)

• Specimen Size
• Customizable; suitable for small/medium electronic devices

• Temperature
• Room temperature (10-40C)

• Test Range
• Depth up to 1 meter (IPX7); customizable for IPX8

• Test Speed
• Manual adjustment

• Test Stroke
• Max. 1000 mm

• Test Width
• 550 mm

• Usage
• Lab, industrial, electronics testing

• Equipment Type
• Temperature Humidity Test Chamber

• Accuracy
• 0.5C, 2% RH

• Application
• Material, component, and product environmental reliability testing

• Automation Grade
• Automatic

• Capacity
• 150 litres

• Control Mode
• Digital PID Controller

• Display Type
• Digital LCD Display

• Features
• Programmable profiles, overheat protection, window observation, LED illumination

• Frequency
• 50 Hz

• Humidity
• 20% to 98% RH

• Interface Type
• RS232 / USB

• Machine Weight
• Approx. 350 kg

• Max Height
• 1400 mm overall

• Measuring Range
• -40C to +150C temperature, 20% to 98% RH humidity

• Mounting Type
• Floor Standing

• Number of Specimens
• Up to 5 Specimens

• Operating Voltage
• 230 V AC

• Port Size
• 80 mm cable port

• Power Supply
• 230 V AC, 50 Hz, Single Phase

• Resolution
• 0.1C / 0.1% RH

• Response Time
• Less than 3 min

• Specimen Size
• Max 250 x 250 x 400 mm

• Temperature
• -40C to +150C

• Test Range
• Temperature and Humidity programmable

• Test Speed
• Adjustable

• Test Stroke
• 400 mm (depth)

• Test Width
• 400 mm chamber internal width

• Usage
• Laboratory, industrial test, quality control

• Equipment Type
• UV Accelerated Weathering Test Machine

• Accuracy
• 2C (temperature), 3%RH (humidity)

• Application
• Material degradation/weathering analysis

• Automation Grade
• Fully automatic

• Capacity
• Standard Tray

• Control Mode
• Digital Touch Screen

• Display Type
• Digital LCD

• Features
• Automatic cycle control, programmable test parameters

• Frequency
• 50/60 Hz

• Humidity
• 40% - 98% RH adjustable

• Interface Type
• RS232/USB

• Machine Weight
• Approx. 70 kg

• Max Height
• 1000 mm

• Measuring Range
• UV wavelength 315-400 nm

• Mounting Type
• Floor standing

• Number of Specimens
• Up to 40

• Operating Voltage
• 220 V

• Port Size
• Standard UV lamp housing (8 pcs)

• Power Supply
• AC 220 V, 50/60 Hz

• Resolution
• 0.1C, 1%RH

• Response Time
• <2 secs

• Specimen Size
• 75 150 mm

• Temperature
• Ambient, programmable up to 70C

• Test Range
• UV exposure, condensation, rain simulation

• Test Speed
• Standard 1 cycle per hour

• Test Stroke
• Variable, up to 500 mm

• Test Width
• 450 mm

• Usage
• Polymer & paint aging, outdoor simulation

• Equipment Type
• Rain spray test chamber

• Accuracy
• 2% water flow accuracy %

• Application
• Ingress protection (IPX1-IPX4) waterproof testing of electronics, auto parts, enclosures, etc.

• Automation Grade
• Fully automatic

• Capacity
• 350 liters Ltr

• Control Mode
• Programmable touch screen PLC control

• Display Type
• 7-inch LCD touchscreen

• Features
• Programmable cycle, automatic water supply, emergency stop, real-time monitoring

• Frequency
• 50Hz Hertz (HZ)

• Humidity
• 65%~98% RH (adjustable)

• Interface Type
• RS232/USB data interface

• Machine Weight
• Approx. 180 kg Kilograms (kg)

• Max Height
• Chamber internal height: 600 mm

• Mounting Type
• Floor-standing

• Number of Specimens
• 12 pcs

• Operating Voltage
• 220V / 50Hz Volt (V)

• Port Size
• Standard DN15 water connection

• Power Supply
• AC 220V10%, 50Hz

• Resolution
• 0.1 mm/min rainfall adjustment

• Response Time
• <1 second Seconds

• Specimen Size
• Max. 500600500 mm (WxDxH) Millimeter (mm)

• Temperature
• Room temperature to 60C Celsius (oC)

• Test Range
• Rainfall intensity 18 mm/min

• Test Speed
• Adjustable (0-2 rpm for spray head turntable)

• Test Stroke
• 500 mm

• Test Width
• 600 mm Millimeter (mm)

• Usage
• Industrial & laboratory waterproof testing

• Equipment Type
• Walk-in Environmental Test Chamber

• Accuracy
• 0.5C (temperature), 3% RH (humidity) C

• Application
• Reliability testing for electronics, automotive components, aerospace, material aging, and high-volume industrial samples

• Automation Grade
• Fully Automatic

• Control Mode
• PLC & Touch Screen Control with PID regulation

• Display Type
• 7 or larger color touch panel display

• Features
• Safety overload protection, observation window, illumination, programmable cycles, data logging, alarm system

• Frequency
• 50/60Hz Hertz (HZ)

• Hardness
• Not applicable (N/A)

• Humidity
• 20% RH to 98% RH (3% RH)

• Interface Type
• USB, RS232/RS485, Ethernet LAN, remote control support

• Machine Weight
• Customizable (typically ranges from 800 kg to 3000 kg depending on chamber size) Kilograms (kg)

• Max Height
• Up to 2600 mm (custom on request)

• Measuring Range
• Temperature: -70C to +150C; Humidity: 20% RH to 98% RH Celsius (oC)

• Mounting Type
• Floor-standing, modular panel structure

• Number of Specimens
• Custom-configurable, typically up to 50 depending on specimen size

• Operating Voltage
• AC 380V, 50/60Hz Volt (V)

• Port Size
• Standard cable port: 100 mm diameter (customizable)

• Power Supply
• AC 380V, 50/60Hz, 3 Phase

• Resolution
• 0.1C / 0.1% RH

• Specimen Size
• Max 800 mm x 800 mm x 1000 mm (custom shelving may alter available size) Millimeter (mm)

• Temperature
• -70C to +150C (user selectable range) Celsius (oC)

• Test Range
• Temperature and humidity programmable range within above limits

• Test Speed
• Programmable, typically 0.5C/min to 5C/min (temperature change rate)

• Test Stroke
• Full internal chamber space, adjustable shelving

• Test Width
• 1200 mm to 3500 mm (custom available) Millimeter (mm)

• Usage
• Environmental stress screening, long-duration aging, reliability evaluation

• Humidity
• 40% to 85% rh

• Temperature
• +20 c to +80 c Rankine

• Equipment Type
• Biochemical Incubator

• Accuracy
• 1C

• Application
• Biology, medical research, pharmaceutical industry, environmental protection

• Automation Grade
• Semi-automatic

• Capacity
• 150 L

• Control Mode
• Microprocessor-based PID controller

• Display Type
• LED digital display

• Features
• Adjustable shelves, double-layer tempered glass observation window, automatic temperature control

• Frequency
• 50Hz

• Humidity
• 40% 95% RH (adjustable)

• Machine Weight
• Approx. 75 kg

• Mounting Type
• Floor mounted

• Operating Voltage
• 220V

• Power Supply
• AC 220V 50Hz

• Resolution
• 0.1C

• Response Time
• Immediate

• Temperature
• 5C 60C (1C)

• Usage
• Incubation of samples at controlled temperature and humidity

• Capacity
• 400*500*500 Kg/hr

• Control Mode
• Korea TEMI 880 controller LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test

• Humidity
• 20~98%R.H. (Refer Image below)

• Power Supply
• 220v

• Temperature
• -40~+150 Newton

• Usage
• humidity and temperature testing

• Temperature
• -70~+150 Planck temperature ()

• Test Speed
• 1/min in average (without loading)

• Control Mode
• Air-cooled

• Humidity
• 10%~98%RH

• Power Supply
• Three-phase, 380V, 50Hz

• Temperature
• -70~+180 Celsius (oC)

• Usage
• This chamber is ideally suited for specimen test requiring quick changes of temperature. It can evaluate the failure of thermal mechanical properties of product. Normally the temperature rate is less than 20C/min, which can achieve the real application environment of testing sample by the fast ramp rate.

• Humidity
• 20~98%RH (Refer Image below)

• Temperature
• -40~+150 Celsius (oC)

• Usage
• Constant Temperature Humidity Chamber which also call environment test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test...

• Humidity
• 30% - 98%

• Power Supply
• Single-phase, 220V10%, 50/60Hz

• Temperature
• Ambient~60 (No humidity if temp. below +25)

• Application
• Laboratory

• Color
• White And Blue

• Material
• Mild Steel

• Power Supply
• Electric

• Product Type
• LCD Dispaly Touch Screen Control Environmental Test Chamber

• Usage
• Laboratory

• Humidity
• (3080)%, accuracy:3%, Resolution 0.1%, Adjustable

• Temperature
• (1040), accuracy:0.5, Resolution 0.1, Adjustable Celsius (oC)

• Test Speed
• Air speed: (0.22)m/h, accuracy: 5%, Adjustable

• Test Width
• (1.00.02)m Meter (m)

• Usage
• Formaldehyde Test Chamber is used to test formaldehyde emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

• Application
• Laboratory

• Color
• Silver

• Material
• Stainless Steel

• Power Supply
• Electric

• Product Type
• uv aging test equipment

• Usage
• Laboratory

• Application
• Laboratory

• Color
• White

• Material
• Stainless Steel

• Power Supply
• Electric

• Product Type
• Corrosion Resistance Tester

• Usage
• Laboratory

• Application
• Laboratory

• Color
• Silver

• Material
• Stainless Steel

• Power Supply
• Electric

• Product Type
• UV Aging Chamber UVA

• Usage
• Laboratory

• Control Mode
• LCD programmable controller, Auto display irradiance, capacity: 100 groups program, 99 cycles.

• Humidity
• 55%~90% RH

• Temperature
• 35~90 Celsius (oC)

• Usage
• Xenon Arc Aging Test Chamber reproduces the damage caused by full-spectrum sunlight, dark and rain. In a few days or weeks, this tester can reproduce the damage that occurs over months or years outdoors.

• Capacity
• 0.1 Ton/day

• Temperature
• Ambient Temperature~200 Reaumur (oRe)

• Test Speed
• Diameter 45cm, 102 roll/min

• Humidity
• 20~98%R.H. (Refer Image below)

• Temperature
• -70~+150 Celsius (oC)

• Usage
• humidity and temperature testing
