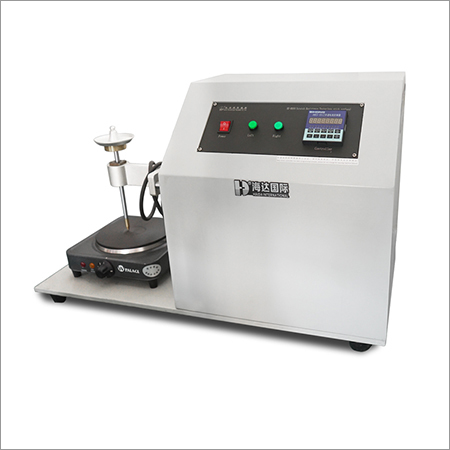

Scratch Resistance Tester

Get a Price/Quote

MOQ : 1 Set

Scratch Resistance Tester Specification

Number of Specimens
1

Frequency
50Hz

Operating Voltage
220V

Accuracy
±1% F.S.

Mounting Type
Benchtop

Display Type
Digital LCD

Features
Robust Construction, User Friendly, Precise Control, Adjustable Load

Interface Type
RS232 (Optional)

Test Range
1-20 N (Adjustable Load)

Hardness
Dependent on Standard Indenter

Equipment Type
Scratch Resistance Tester

Humidity
30-85% RH

Automation Grade
Semi-Automatic

Max Height
150 mm

Port Size
1/4 inch

Power Supply
220V AC / 50Hz

Response Time
<1 sec

Application
Paint, Coatings, Plastics, Surface Hardness

Resolution
0.01 N

Gas Pressure
0.4-0.8 MPa (if air-powered)

Measuring Range
1-20 N

Specimen Size
Up to 100 x 100 mm

Temperature
15°C-40°C (Operation)

Usage
Quality Control Testing

Capacity
20 N

Machine Weight
Approx. 25 kg

Test Speed
25/50/100 mm/min (Adjustable)

Test Width
Up to 80 mm

Test Stroke
20-150 mm (Adjustable)

Control Mode
Touch Screen/Manual

Dimensions
550x350x420 mm

Memory
Stores up to 100 test data sets

Calibration
Manual and auto options

Ambient Noise
<50 dB

Safety
Overload Protection

Needle Type
Carbide

Sample Holder
Adjustable clamp

Body Material
Powder coated steel

Scratch Resistance Tester Trade Information

Minimum Order Quantity
1 Set

FOB Port
Shenzhen China

Payment Terms
Cash on Delivery (COD), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Western Union, Paypal, Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
150 Sets Per Month

Delivery Time
15 Months

Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Scratch Resistance Tester About

We are manufacturing and supplying a wide range ofScratch Resistance Tester. The offered range is manufactured by using optimum quality material like stainless steel, alloy and other with the help of innovative technology and developed machinery to meet set industry norms in our well equipped units. Also, the offered machinery range is tested and verified on various quality parameter to satisfy client requirement. ThisScratch Resistance Testeris available with us at market leading rates.

Suit for gauges :

CEN/TS 12983-2: 2005 Annex D and BS EN 12983 Annex M

Details :

Width of the piece = 220 mm + 5, - 2 mm
Determination of the thermo controller is +/ - 2 degree C.
Surface treatment of the square : Hard anodized, dark, covering thickness 25 um.
Temperature of the square most extreme 380 degree C.

Other Details :

Minimum	1 SET
Delivery	15 days after order.
Country	China
Brand Name	HD
Package	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment	L/C, D/P, T/T
Price	FOB, CIF

Exceptional Versatility and Precision

Engineered for flexibility, the Scratch Resistance Tester offers a broad measuring range of 120 N with fine resolution (0.01 N), adjustable load, and a range of test speeds and widths. The combination of touch screen and manual control modes, plus robust memory and calibration features, makes it ideal for various surface hardness and scratch resistance applications.

User-Friendly Operation and Safety

This testers touch screen interface ensures seamless user interaction, while overload protection and ergonomic design promote operator safety. The adjustable sample clamp and rapid response time enable accurate, repeatable results for specimens of up to 100 x 100 mm, making it essential for routine quality control testing.

FAQs of Scratch Resistance Tester:

Q: How does the Scratch Resistance Tester benefit quality control processes?

A: The tester provides precise, repeatable measurements of surface hardness and scratch resistance, supporting rigorous quality assurance for paints, coatings, and plastics. Its digital display, data storage, and automated features streamline analysis and documentation.

Q: What is the process for conducting a test using this machine?

A: To conduct a test, secure your specimen (up to 100 x 100 mm) in the adjustable clamp, select the desired load, speed, and stroke length from the digital touch screen or use manual controls, and then initiate the test. The machine delivers rapid results and automatically stores up to 100 sets of test data.

Q: Where can this tester be used?

A: The Scratch Resistance Tester is suitable for laboratories, manufacturing plants, research institutions, and quality control departments in industries working with paint, coatings, plastics, or other materials requiring surface hardness assessments.

Q: When should calibration be performed, and what options are available?

A: Calibration should be performed during initial setup, after maintenance, or periodically as part of routine quality checks. The tester supports both manual and automatic calibration procedures for optimal accuracy.

Q: What safety features does the tester include?

A: The device includes overload protection to safeguard against excessive force during testing, a sturdy powder-coated steel body for stability, and operates with low ambient noise (<50 dB) to maintain a safe and comfortable work environment.

Q: How is the test data managed and accessed?

A: Test results are digitally displayed on the LCD and can be stored internallyup to 100 test data sets. For further data management or transfer, an optional RS232 interface can be utilized.

Q: What applications can this tester be used for?

A: It is designed for testing surface hardness and scratch resistance in paints, coatings, plastics, and similar substrates, aiding manufacturers or quality control professionals in verifying material durability and performance.
