Knives Bending Strength Tester

Get a Price/Quote

MOQ : 1 Set

Knives Bending Strength Tester Specification

Equipment Type
Bench-top testing equipment

Frequency
50 Hz

Port Size
6 mm pneumatic port

Accuracy
0.5% F.S.

Power Supply
AC 220V, 50Hz

Number of Specimens
Single or Multiple

Operating Voltage
220V AC

Test Range
0-1000 N

Temperature
10C - 40C

Interface Type
RS232, USB

Automation Grade
Semi-Automatic

Display Type
LCD digital display

Mounting Type
Benchtop

Humidity
20-80% RH operating

Application
Bending strength testing of knives and blades

Measuring Range
0-1000 N

Resolution
0.01 N

Gas Pressure
0.5-0.7 MPa

Max Height
160 mm specimen max

Features
Automatic data recording and printout

Hardness
Test fixture: HRC 502

Response Time
1 s

Specimen Size
Length 150 mm x Width up to 50 mm

Usage
Industrial, Laboratory

Capacity
1000 N

Machine Weight
~50 kg

Test Speed
1-500 mm/min adjustable

Test Width
up to 50 mm

Test Stroke
Max 100 mm

Control Mode
Digital Control with Touch Panel

Fixture Material
High-strength steel

Calibration
Auto calibration with standard weights

Test Method
Three-point bending

Safety Features
Overload and emergency stop

Included Accessories
Standard bending fixture, power cable, operation manual

Data Output
USB/RS232 data export

Load Cell Type
Precision strain gauge

Knives Bending Strength Tester Trade Information

Minimum Order Quantity
1 Set

FOB Port
shenzhen

Supply Ability
20 Sets Per Month

Delivery Time
15 days after received the order Days

Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
CE, SGS, ISO9001

Knives Bending Strength Tester About

Owing reliable experience of our team of skillful employees, we are manufacturing and supplying a wide range of Knives Bending Strength testing machine. This machine is used to test twisting resistance of various blades and broadly utilized as a part of blade or cutting fork, Clamped at the handle and stacked at the blade or prong tip is raised until the heap is simply lifted. The edge of changeless distortion after arrival of the heap is measured. Knives Bending Strength testing machine is available with us at reasonable rates.

Specifications :

Tailor-made by customer specification
Hong Kong sales office

The Main Technical Parameter :

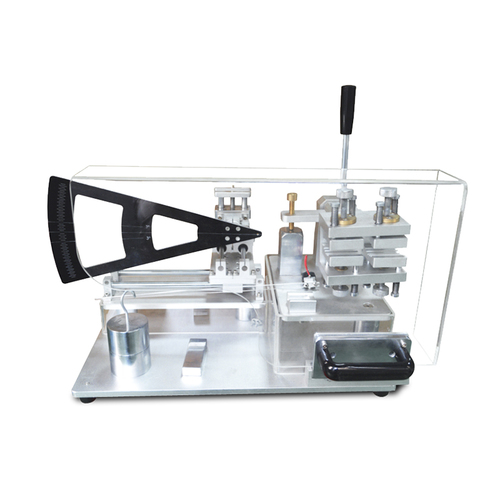

Model:	TT-C03Knives bending strength testing machine
The equipments consists 2 clamps, one permanent clamp for the handle and the other removable clamp for the tip of specimen.
Hand lever of the apparatus is removable and easy to attach on the apparatus.
2 set of load included, one is 20N and the other one is 10N(20N+10N=30N).
The equipment is made of aluminium profile and stainless steel.
Acrylic protective cover provided for safety operation.

Our quality culture : Tailor-made Service Tester.
Our organization reason: Quality in the first place, Integrity benefit.
Our organization reasoning: go after customers with quality, serve customers with advantage and increment customers with customers.
Our organization responsibility: one year ensure, perpetual free specialized counseling administrations.

Other Details :

Minimum	1 SET
Delivery	15 days after order.
Country	China
Brand Name	HD
Package	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment	L/C, D/P, T/T
Price	FOB, CIF

High Precision Testing Performance

With a measuring range of 0-1000 N and a resolution of 0.01 N, the Knives Bending Strength Tester guarantees highly accurate and fast results (response time 1 s). Its automatic data recording and printout functions enhance reliability and ease for both industrial and laboratory settings.

Comprehensive Safety and Control Features

Equipped with overload protection and an emergency stop function, the tester prioritizes safe operation. The intuitive digital touch panel, along with auto calibration, provides convenience and consistent accuracy for repeated bending tests on various knife specimens.

Versatile Application and Accessories

This bench-top tester comes with a standard bending fixture, power cable, and operation manual, making it suitable for dealers, distributors, and manufacturers. The device supports single or multiple specimen testing and is engineered for industrial, laboratory, or supplier use.

FAQs of Knives Bending Strength Tester:

Q: How is the bending test performed using the Knives Bending Strength Tester?

A: The tester utilizes the three-point bending method, where the knife specimen is placed on the fixture and subjected to force until bending or breaking. Adjustable test speed and precise control allow for accurate measurement of the specimens bending strength.

Q: What safety features does the equipment include during operation?

A: For operator protection and machine longevity, the tester is equipped with overload protection and an emergency stop button, preventing equipment damage and enabling immediate halting in emergency situations.

Q: When should the tester be calibrated, and how is calibration achieved?

A: Auto calibration is recommended before each series of tests or after relocation. Calibration uses standard weights to ensure consistent and precise measurements, enhancing data reliability for all testing purposes.

Q: Where can data from the tests be exported or monitored?

A: Test data can be exported via USB or RS232 interfaces, allowing convenient documentation and analysis on laboratory computers or industrial management systems. Real-time test metrics are displayed on the integrated LCD digital screen.

Q: What is the process to set up the tester for use?

A: Setup involves fixing the specimen into the high-strength steel fixture, connecting the power cable, and selecting testing parameters through the touch control panel. The standard operation manual guides step-by-step installation and test execution.

Q: Who can benefit from using this machine?

A: Manufacturers, laboratory technicians, and distributors involved in knife production or quality assurance can benefit from its accurate strength measurements, automated reporting, and safe, semi-automatic operation.

Q: What is the maximum capacity and range of specimens the tester can handle?

A: The tester supports single or multiple specimens with dimensions up to 150 mm length and 50 mm width, and can measure forces up to 1000 N. Its adjustable fixture and benchtop mounting make it adaptable for various knife and blade types.
