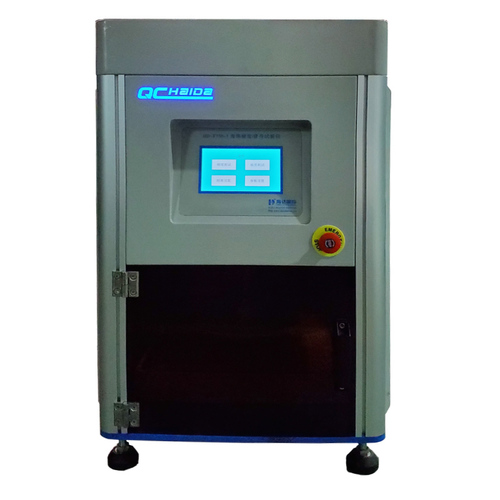

HD-F750A Foam Pounding Dynamic Fatigue Test Machine

Name: HD-F750A Foam Pounding Dynamic Fatigue Test Machine
Brand: HAIDA INTERNATIONAL EQUIPMENT CO., LTD.
Price: 800 USD
Availability: InStock

Price 800 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

HD-F750A Foam Pounding Dynamic Fatigue Test Machine Specification

Display Type
Touch screen display

Power Supply
AC 220V 50Hz

Hardness
Supports foam hardness testing

Interface Type
Touch PLC

Accuracy
1% of set value

Frequency
Adjustable 10~300 cycles/min

Test Range
Foam, mattress and similar materials

Automation Grade
Automatic

Port Size
1/2 air inlet

Resolution
0.1 mm

Response Time
Instantaneous

Humidity
85% RH (non-condensing)

Temperature
10C~35C

Features
Adjustable impact times, programmable cycles, automatic stop

Equipment Type
Foam Pounding Dynamic Fatigue Tester

Application
Dynamic fatigue test, pounding test for foam/mattress

Mounting Type
Floor standing

Measuring Range
0~300 mm

Specimen Size
400400100 mm (LWH)

Number of Specimens
1 pc/time

Gas Pressure
0.5~0.8 MPa

Max Height
Up to 300 mm stroke

Operating Voltage
220V

Usage
Foam endurance/pounding dynamic fatigue testing

Capacity
2.5 kW

Machine Weight
About 200 kg

Test Speed
10~300 times/min adjustable

Test Width
500 mm

Test Stroke
50~300 mm (adjustable)

Control Mode
PLC touch screen control

Dimension
(L)1100(W)750(H)1200 mm

Colour
Blue/Gray combination

Cylinder Diameter
160 mm

Noise Level
75 dB

Material
High strength steel, powder coated

Impact Plate Size
250 mm (diameter)

Safety Protection
Emergency stop, overload protection

Memory Function
Supports data storage and historical retrieval

Test Method
ASTM F1566, EN1957, QB/T 1952.2 compatible

HD-F750A Foam Pounding Dynamic Fatigue Test Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
Shenzhen

Supply Ability
10 Sets Per Month

Delivery Time
1 Week

Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Certifications
CE,ISO

HD-F750A Foam Pounding Dynamic Fatigue Test Machine About

Foam Pounding Fatigue Tester(Hd-F750)

The Usage:

This Foam Pounding Fatigue Tester Is Used To Test Foam Fatigue By Repeating Indentation Of A Test Piece By An Indentor Smaller In Area Than The Test Piece,The Maximum Load Reached During Each Cycle Being Kept Within Specified Limits.

Features:

The Design Of The Sensor Can Compensate For The Change Of The Hardness Of The Sponge,So That The Impact Force Is Constant In The Setting Range.
Test Cycle Can Be Set(6 Bit Pre-design Number Device).
Platform Lift Structure: Servo Motor Driven Double Ball Screw,Accuracy Of 0.01mm.

The Main Parameters:

Load Sensor Under The Plane Plate,The Test Force 750n.
Plane Plate:Holes Diameter 6mm, Space 20mm.
Load Sensor: 200kg, Accuracy 0.3 Percent F.S.
Indentor: Having An Overall Diameter Of 250mm 1mm With A 25 mm 1 mm Radius At Its Lower Edge.
Test Cycle:0-999,999(Adjustable)
Standards: Iso 3385, Astm D3574.

Advanced Control and Precision Engineering

Equipped with a PLC touch screen control interface, the HD-F750A provides seamless adjustments across test parameters, including impact cycles, stroke lengths, and speeds. Its precision-engineered components, such as the 250 mm impact plate and 160 mm cylinder, ensure testing consistency and repeatability. The touch screen display delivers instant feedback, allowing operators to monitor real-time data and adjust conditions swiftly.

Comprehensive Safety and Data Management

Safety is paramount with the HD-F750A. Emergency stop and overload protection features provide immediate intervention capabilities. The integrated memory function supports thorough data storage and historical test retrieval, making it simple to track results for quality assurance and compliance reporting. Its noise level remains under 75 dB, maintaining a comfortable operating environment.

Flexible Application and Automatic Operation

Designed for floor-standing use, this machine accommodates specimen sizes of 400400100 mm and test widths up to 500 mm. Automatic test sequencing enables programmable cycles and adjustable impact frequencies (10300 cycles/min), supporting a broad range of foam hardness and endurance assessments. The blue/gray color scheme and robust build reflect both modern aesthetics and industrial reliability.

FAQs of HD-F750A Foam Pounding Dynamic Fatigue Test Machine:

Q: How does the HD-F750A Foam Pounding Dynamic Fatigue Test Machine operate for dynamic fatigue testing?

A: The machine uses programmable impact cycles and adjustable strokes to repeatedly compress foam or mattress specimens. Operators set parameters on the PLC touch screen, and the system executes precise, automated pounding tests according to ASTM F1566, EN1957, or QB/T 1952.2 standards. Results are instantly displayed and stored for retrieval.

Q: What materials and specimen sizes can be tested with this equipment?

A: The HD-F750A is engineered for foam, mattresses, and similar flexible materials. It accommodates one specimen per cycle with dimensions of 400400100 mm, and supports test widths of up to 500 mm for comprehensive fatigue analysis.

Q: When should manufacturers or suppliers use this dynamic fatigue tester?

A: Manufacturers and suppliers should use this tester during quality assurance routines, product development stages, or certification processes where dynamic fatigue, endurance, and pounding resistance of foam materials need validation against industry standards.

Q: Where is the HD-F750A typically installed and used?

A: This equipment is designed for installation in laboratory, manufacturing, or quality control environments. Its floor-standing design and moderate dimensions (11007501200 mm) make it suitable for test rooms, workshops, or industrial facilities involved in foam and mattress production.

Q: What is the process for running a test using this machine?

A: To run a test, place the specimen on the platform, set desired parameters on the touch screen (impact times, stroke, speed), and start the test. The machine automatically performs pounding cycles while recording data. Safety features like the emergency stop ensure a secure operation throughout the process.

Q: How does the HD-F750A enhance testing efficiency and data accuracy?

A: With adjustable speeds, strokes, and programmable cycles, the machine provides versatile, repeatable, and reliable testing. The memory function allows for robust data storage and retrieval, enabling long-term tracking of foam performance and compliance with international standards.

Q: What are the main benefits of using this dynamic fatigue tester for foam and mattress evaluation?

A: Key advantages include precise control of testing conditions, automatic operation, safety protections, comprehensive data management, and enduring build quality. This leads to improved product reliability, faster testing cycles, and thorough quality validation.
