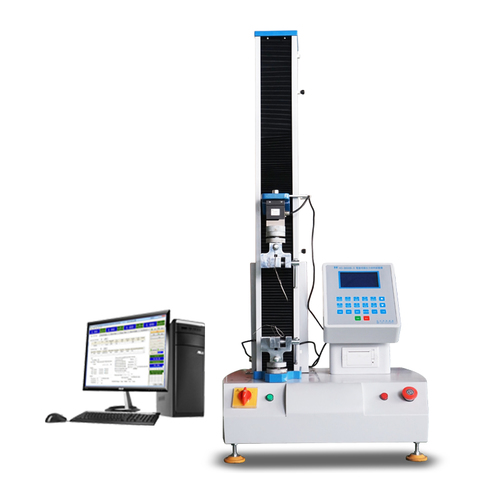

Send InquiryWire and Cable Tension Testing Machine
MOQ : 1 Set
Wire and Cable Tension Testing Machine Specification
- Usage & Applications
- For tension testing of wires and cables in quality control labs and manufacturing units
- Batteries Type
- No batteries required
- Resistant Feature
- Corrosion Resistant Coating
- Accuracy
- ±1% of Full Scale
- Product Type
- Wire and Cable Tension Testing Machine
- Material
- Robust Mild Steel & Alloy Components
- Measuring Voltage Range
- Not Applicable (Mechanical Test)
- Operating Temperature
- 0°C to 50°C
- Insulation Box
- Provided for electrical safety and protection
- Protection System
- Overload and emergency stop mechanism integrated
- Size
- Standard / Customizable as per requirement
- Color
- Blue and Grey
- Dimension (L*W*H)
- Approx. 1100 mm x 600 mm x 1400 mm
- Weight
- Approx. 180 kg
- Motor Type
- Single Phase Geared Motor
- Force Measuring Unit
- Digital/Analog Load Cell
- Test Speed
- 10 mm/min to 500 mm/min (Adjustable)
- Environment Suitability
- Laboratory and Industrial Shopfloor use
- Jaw Grip Type
- Self-tightening V-type Grips for various cable diameters
- Power Supply
- 220V AC, 50Hz
- Fixture Type
- Interchangeable clamps for various wire/cable sizes
- Maximum Elongation Measuring Range
- Up to 600 mm
- Control Mode
- Manual and Microprocessor-based Automatic control
- Display
- Digital LCD Display
- Max Load Capacity
- Up to 1000 kg (customized options possible)
- Safety Features
- Auto stop after break, Overload protection, Emergency stop button
- Data Output
- USB and RS232 interface for test results export
- Test Method
- Tensile Strength and Breaking Load Measurement
Wire and Cable Tension Testing Machine Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shenzhen China
- Payment Terms
- Cash on Delivery (COD), Letter of Credit (L/C), Paypal, Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)
- Supply Ability
- 150 Sets Per Month
- Delivery Time
- 15 days after received the order Days
- Packaging Details
- Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Wire and Cable Tension Testing Machine About
We are the prominent manufacturer and supplier of Wire and Cable Tension Testing Machine that is highly demanded and appreciated by our customers. These arrangement of Universal Tensile Testing Machine is utilized to test pressure, pressure, shearing power, grip, peeling power, tear strength etc. of example, semi-item and completed item in the field of elastic, plastic, metal, nylon,fabric,paper, avionics, pressing, engineering, petrochemistry, electric apparatus, automobile etc which are the essential offices for info quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection. Wire and Cable Tension Testing Machine can be acquirable at market leading rates.
Features :
- Embracing windows stage, and all the parameter settings can be handled in the discourse box, and it works effortlessly;
- Utilizing a solitary screen operation; don't have to switch the screen;
- With three dialects in Simplified Chinese, Traditional Chinese and English, the product interface can be exchanged effectively;
- The example of Test reports can be self-designated; test information can be shown straightforwardly in the primary screen;
- Picking translational, near mode in the meantime to make various bend information examination
- With an assortment of estimation units, Measure In Imperial and Metric are switchable;
- With self-return and auto-revision work;
- With programmed amplification work, to accomplish the most fitting size of the representation;
- With the client characterized Test strategies; with test information investigation work;
- High caliber, exact and solid models with sensible cost.
Standard :
- ASTMD903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7.
Technical Parameters :
| Capacity (optional) | 5,10,50,100,200kg |
| Unit (Switchable) | G, KG, N, LB |
| Load Resolution | 1/250,000 |
| Load Accuracy | < + 0.5% |
| Stroke (include the grips) | 800mm |
| Test speed | 0.1~500mm/min selectable |
| Weight (exclude the grips) | 85Kg |
| Operation Mode | PC or LCD |
| Display | PC or LCD |
| Motor | Servo Motor |
| Dimension(WxDxH)-Main Unit | 570x510x1240mm |
| Driver | High precise ball screw |
| Power | single phase, 220V/ 10A or designated |
| Accessories | Tensile grips 1 set, one computer |
Specification of principle motor
- Motor framework: Panasonic servo engine +Panasonic servo driver +ball screw (Taiwan)+Leeming diminishment gears +synchronous belt drive
- Control framework: a, TM2101 PC servo system,b, Back to cause naturally after the test;c, store information consequently or by manual operation
- Data transmission:RS232
- Computer servo framework :Desktop PC servo control pliable analyzer committed framework
- Display modes: Windows Interface show
- Using windows interface to test programming it can accomplish to set speed, stack, control time, Break-point extent ,much request control mode and meet distinctive test prerequisite.
Other Details :
| Minimum | 1 SET |
| Delivery | 15 days after order. |
| Country | China |
| Brand Name | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
Precision and Versatility for Every Application
This tension testing machine is tailored to support a variety of wire and cable testing scenarios, from quality control laboratories to manufacturing units. With customizable load capacities, adaptable grips, and interchangeable clamps, it effortlessly accommodates a wide spectrum of cable sizes and materials. The microprocessor-based automatic control and manual mode provide flexibility and efficiency, ensuring reliable results for both routine assessments and critical testing.
User-Centric Features and Safety Integration
Designed with operator convenience in mind, the machine incorporates a digital LCD display for clear readings, intuitive manual and automatic controls, and advanced safety mechanisms. The integrated insulation box, overload protection, and emergency stop functions prioritize user safety during operation. These features, combined with a corrosion-resistant coating and sturdy build, deliver long-lasting performance and resilience in rigorous environments.
FAQs of Wire and Cable Tension Testing Machine:
Q: How does the wire and cable tension testing machine operate?
A: The machine operates either manually or via a microprocessor-based automatic control system. Users mount the cable using self-tightening V-type grips and select test parameters such as speed (10500 mm/min). The device then applies tension until the sample breaks, while sensors measure force and elongationdisplayed digitally and recorded for analysis.Q: What cables and wires can be tested with this machine?
A: Thanks to its interchangeable clamps and self-tightening grips, the machine can accommodate a wide range of wire and cable diameters, making it suitable for most types used in industrial manufacturing or quality control testing. Customizations are available for specific sizes and requirements.Q: Where is this tension testing machine typically used?
A: It is suitable for quality control laboratories, manufacturing facilities, industrial shop floors, and research institutions. Its robust design and accurate results make it a preferred choice wherever precise tension testing of wires and cables is required.Q: What are the key benefits of using this testing machine?
A: Main benefits include highly accurate tensile strength measurements (1% of full scale), user safety through overload and auto-stop protection, adaptability to various cable sizes, digital data output for easy analysis, and durable construction with corrosion-resistant features.Q: How are the test results exported from the machine?
A: Test data can be exported through USB or RS232 interfaces. This allows seamless integration with computers and data systems for reporting, quality documentation, or further analysis.Q: What safety features are integrated into the machine?
A: The machine includes an auto-stop function after sample breakage, overload protection, an emergency stop button, and an insulation box for electrical safety. These systems ensure secure operation even under demanding conditions.
