Constant Temperature Humidity Test Chambers
4200.00 - 7800.00 USD ($)
Product Details:
- Humidity 20~98%RH (Refer Image below)
- Temperature -40~+150 Newton
- Control Mode LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test
- Supply Ability : 20 Set Per Month
- Click to view more
X
Price And Quantity
- 1 Set
- 4200.00 - 7800.00 USD ($)
Product Specifications
- LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test
- 20~98%RH (Refer Image below)
- -40~+150 Newton
Trade Information
- 20 Set Per Month
- 15-30 Days
- Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Product Description
Constant Temperature Humidity Chambers Video

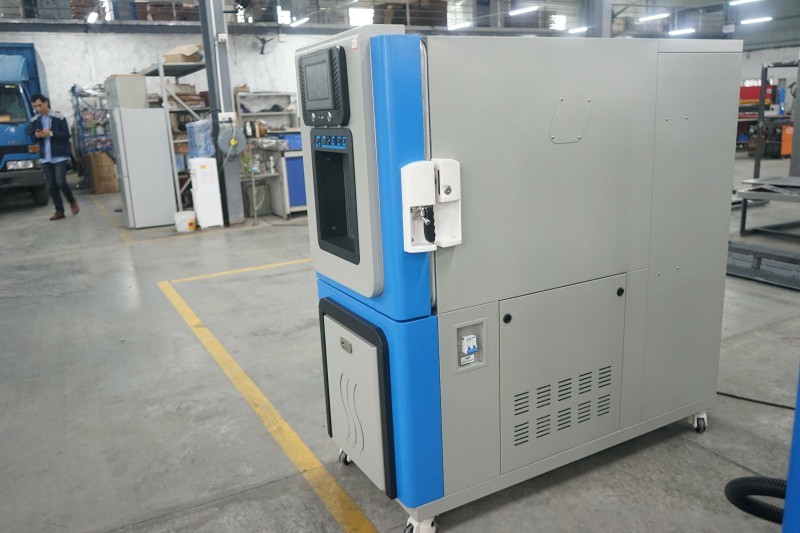

Constant Temperature humidity test chamber
Product Description
40150 humidity testing 2098RHboth of temerature and humidity testing at the same timechamber power can be customized
Constant Temperature Humidity Chamberent test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test coolingoff test heatingup test moistening test and drying testSuitable for electronic electrical communications instrumentation vehicles plastic products metals food chemicals building materials medical aerospace and other products quality testing purposesEN 14511
Application industry
(not limited to the following):
- Electronic products: mobile phones, computers, television, video recorders and so on
- Textile fabric products: clothes, hats, shoes, ropes
- Wire and cable: data cable, usb,
- Leather products: handbags, wallets, leather shoes, leather chairs
- Instrumentation, vehicles, plastic products, metal,
- Food, chemical, building materials, medical, aerospace
- Others...
Test Standards
- IEC 60068-2-1, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-38
- IEC 61215 - 10.11, 10.12, 10.13
- EN 14511
- ASTM E1171
| HD-E702-100-4 |
|
| 400*500*500mm |
|
| External dimension (W*D*H) | 600*1080*1380mm |
| Temperature range | -40 +150 |
| Temperature fluctuation | 0.5 |
| Temperature uniformity | 2 |
| Humidity range | 20 98%RH (Refer Image below) |
| Humidity fluctuation | 2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1 /min in average (without loading) |
| Heating speed | 3 /min in average (without loading) |
| Internal chamber material | SUS 304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS 304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS 304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
Other Models
Available inner capacity: 100L, 225L, 408L, 800L, 1000L; and customized dimensions.
Applications
- To simulate test environment with different temperature and humidity
- Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test
- Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
- Uncover test unit weakness in a short-term test with accelerated time effect
Chamber Design Features
- High performance and quiet operation (68 dBA)
- Space-saving designed for flush installation to wall
- Full thermal break around doorframe
- One 50mm diameter cable port o left, with flexible silicone plug
- Direct water supply connection for continuous operation
- Accurate wet/dry-bulb humidity measurement system for easy mantain
Programmable Controller
- PIC controller for test chamber
- Step types include: ramp, soak, jump, auto-start, and end
- RS-232 interface to connect computer for output
