Send InquirySalt Spray Testing Chamber
MOQ : 1 Set
Salt Spray Testing Chamber Specification
- Features
- Double Walled Construction, Auto Water Refill, Safety Thermostat, Programmable Cycle Timer
- Hardness
- N.A. (not applicable to this equipment)
- Specimen Size
- Max 150 x 75 mm per rack
- Frequency
- 50/60 Hz
- Power Supply
- 220V AC, 50 Hz, Single Phase
- Humidity
- 95% - 100% RH inside chamber
- Resolution
- 0.1°C, 1% RH
- Application
- Corrosion resistance and surface coating testing
- Automation Grade
- Semi-Automatic / Automatic
- Response Time
- Instant display; test environment stabilization within 30 min
- Interface Type
- Standard electrical terminals
- Temperature
- Ambient to 47°C ± 1°C
- Mounting Type
- Floor Standing
- Accuracy
- ± 1°C (Temperature), ±2% RH (Humidity)
- Test Range
- Upto 999 hours (timer based)
- Display Type
- Digital LED Display
- Measuring Range
- 0 to 1000 hours exposure
- Port Size
- Standard 10 mm Air Inlet
- Max Height
- 900 mm (depending on model)
- Equipment Type
- Corrosion Testing Chamber
- Operating Voltage
- 220V 50Hz AC
- Gas Pressure
- 0.8 - 2.0 Bar (adjustable)
- Number of Specimens
- 6 to 50 (depending on rack configuration)
- Usage
- Testing Paints, Coatings, Plating, Fasteners and Components
- Capacity
- 60, 120, 250, 450 Litre (varies with model)
- Machine Weight
- Approx. 45-80 kg (depending on model)
- Test Speed
- Adjustable (as per test requirements)
- Test Width
- 400 mm, 600 mm, 900 mm (varies with model)
- Test Stroke
- Continuous (as per chamber size)
- Control Mode
- Microprocessor based Digital Control
- Operation Environment
- Indoor, Non-Corrosive, Well Ventilated Area
- Accessories
- Specimen Racks, Atomizer, Air Regulator, Measuring Cylinders
- Chamber Color
- Grey / Cream / Custom (as required)
- Spray Method
- Nozzle Atomization / Air-Driven
- Drainage System
- Provided with Drain Port
- Safety Features
- Over-temperature protection, Low Water Level Alarm
- Test Solution
- 5% NaCl Salt Solution (Standard as per ASTM B117)
- Chamber Construction
- Corrosion Resistant, Double Wall with Insulation
- Material of Construction
- High Grade FRP / PVC / Stainless Steel Inside
- Chamber Access
- Transparent Acrylic Lid
Salt Spray Testing Chamber Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- shenzhen
- Supply Ability
- 1 Set Per Month
- Delivery Time
- 30 Days
- Packaging Details
- Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
- Main Domestic Market
- All India
- Certifications
- CE, SGS, ISO9001
Salt Spray Testing Chamber About
Our company is growing manufacturer and supplier of Salt Spray Testing Chamber. This is adjusted to the surface treatment of different materials, including paint, electroplating, natural and inorganic covering, anode preparing, anti-rust oil etc. These hostile to destructive treatment to test the consumption resistance of their items. The offered range is manufactured by utilizing optimum grade raw material with the help of modern techniques. Furthermore, this Salt Spray Testing Chamber can be available at market leading cost from us.
Standard Parameters :
|
Model |
HD-E808-90 |
|
Internal Size (L W H) |
900x600x500mm |
|
External Size (L W H) |
1410x880x1280mm |
|
Equipment Material |
Both inside & outside shell adopt P.V.C rigid plastic board |
|
Temperature Range |
Room temperature 55oC |
|
Temperature Fluctuations |
+0.5oC |
|
Temperature Uniformity |
+2oC |
|
Temperature Precision |
+1oC |
|
Spraying method |
Continuous and Periodic spray type |
|
Test Chamber Temperature |
Salt Spray Method (NSS ACSS)35+1oC |
|
Saturated air Barrel Temperature |
Salt Spray Method (NSS ACSS)47+1oC |
|
Brine Temperature |
35 +1oC |
|
Spray Quantity |
1.0 2.0 ml / 80cm2 / hr |
|
PH value |
Salt Spray Method (NSS ACSS6.5 7.2) |
|
Lab Volume |
270L |
|
Brine Tank Capacity |
25L |
|
Multiple Safety Protection Devices |
Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
|
Accessories |
Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
|
Air source |
1HP Air pump (provided by buyer) |
Product Features
- Durable hard 8 mm PVC development, rust resistance and simple to clean.
- Reservoirs with blending framework on stand.
- Separate warming framework separated from salt testing chamber to guarantee precise outcome and ensure circuit.
- Exposure zone fixed with erosion safe PVC sheets.
- Clear cover permits survey of test conditions.
- Peaked cover avoids trickling of buildup onto tests.
- Water seal and water level security framework.
- Heated humidifying tower with air alleviation valve, movable tower tip to arrange salt haze.
- Automatic DI water fills to humidifying tower.
- Digital temperature control.
- Integral over-insurance on radiators.
- Low water cut-off insurance on humidifying tower.
Pre-benefit
- 24 Hours online administration for your counsel.
- Help pick right model,and a progression of service,person,advise.
Center administration
- Give you best offer
- Provide markdown for some sets arrange
- Do clients demand:
- Choose installment term you convenient.
- Promptly creation and delivery,inform you in time.
- Can give receipt an incentive as you prefer to diminish your duty.
After deal benefit
- 1 year guarantee administration and all life support.
- Technical Engineer are available for oversea training.
- Free change for a few sections
- Remote control specialized counsel
- Free establishment DVD
- Maintenance arrange
Commitment:
We will sign a letter of responsibility while we sign the agreement, which will enhance your certainty to us.
Other Details :
|
Minimum |
1 SET |
|
Delivery |
15 days after order. |
|
Model |
HD-E808-90 |
|
Country |
China |
|
Brand Name |
HD |
|
Package |
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
|
Payment |
L/C, D/P, T/T |
|
Price |
FOB, CIF |
Corrosion Testing Precision
Built for rigorous evaluations, the chamber utilizes a standardized salt solution and advanced spray mechanisms to replicate corrosive conditions, ensuring accurate testing of material and surface coatings. Its double-walled, insulated construction maintains consistent temperature and humidity, enhancing reliability and repeatability of results for up to 999 hours.
User-Friendly Digital Controls
Equipped with microprocessor-based digital controls and a digital LED display, the chamber allows users to easily monitor and adjust test parameters. Features such as auto water refill, safety thermostat, programmable cycle timer, and instant environmental stabilization support efficient operation while minimizing user intervention.
Flexible Operation and Capacity
With models ranging in test width (400 mm to 900 mm) and chamber capacities (60 to 450 litres), the chamber accommodates a varying number of specimens, making it suitable for diverse testing needs. Mounting is floor-standing, and operation is suited for indoor, non-corrosive environments, providing safety and flexibility in installation and use.
FAQs of Salt Spray Testing Chamber:
Q: How does the Salt Spray Testing Chamber operate for corrosion resistance testing?
A: The chamber simulates corrosive environments by atomizing a 5% NaCl salt solution (as per ASTM B117) onto specimens using nozzle or air-driven spray methods. Environmental parameters, such as humidity and temperature, are monitored and controlled digitally, allowing users to run extended tests for up to 999 hours.Q: What materials can be tested using this chamber?
A: A variety of materials can be tested, including paints, surface coatings, plating, fasteners, and metallic components. Specimen racks accommodate sizes up to 150 x 75 mm and capacities from 6 to 50 specimens, depending on the model and rack configuration.Q: When should the Salt Spray Chamber be used in a testing process?
A: This equipment should be utilized during quality assurance and research phases for products requiring corrosion resistance verification, particularly before market release or in failure analysis of material performance under aggressive environmental conditions.Q: Where is the ideal location to install the Salt Spray Testing Chamber?
A: Installation is recommended indoors in a non-corrosive, well-ventilated area to ensure safety and proper functioning. The chamber is floor-standing and requires a standard 220V AC, 50Hz single-phase power supply with appropriate drainage and air inlet connections.Q: What safety features does the chamber provide during operation?
A: Safety features include over-temperature protection, a low water level alarm, and a safety thermostat. These systems help prevent overheating, ensure adequate water supply, and protect both the specimens and the equipment during extended testing cycles.Q: How does the chamber ensure test accuracy and reliability?
A: Digital LED displays provide instant and precise readouts of test parameters. Accuracy is maintained within 1C for temperature and 2% RH for humidity, with an environmental stabilization time of 30 minutes, ensuring consistent conditions across multiple test cycles.Q: What are the key benefits of using the chamber for corrosion testing?
A: Key benefits include reliable simulation of harsh environments, programmable automation for test cycles, flexible specimen capacity, and robust construction for long-term use. This facilitates efficient evaluation of corrosion resistance, improving product quality and longevity.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Environmental Test Chamber Category
High Temperature Melt Furnace Chamber
Price Range 3000.00 - 6000.00 USD ($)
Minimum Order Quantity : 1 Set
Power Supply : AC 220V, 50/60Hz
Usage : Laboratory & industrial repeatable melting tests
Humidity : 95% RH noncondensing
Capacity : Up to 2 Liters
Xenon Weathering Test Chamber(Air Cooled)
Price Range 3000.00 - 6000.00 USD ($)
Minimum Order Quantity : 1 Set
Power Supply : AC 220V 10%, 50/60 Hz, Single Phase
Usage : Accelerated aging/weathering simulation
Humidity : 30% 98% RH, Programmable
Capacity : 420 Liter Internal Volume
Yellowing Resistance Aging Test Instrument
Price Range 3000.00 - 6000.00 USD ($)
Minimum Order Quantity : 1 Set
Power Supply : AC 220V, 50Hz
Usage : Laboratory Material Testing
Humidity : 40~70% RH
Capacity : Depends on tray size

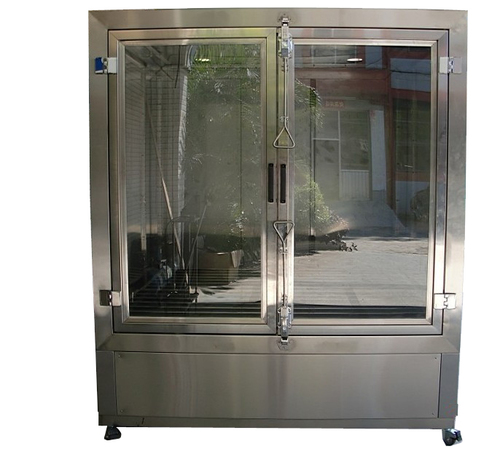

IPX34 Rain spray test room
