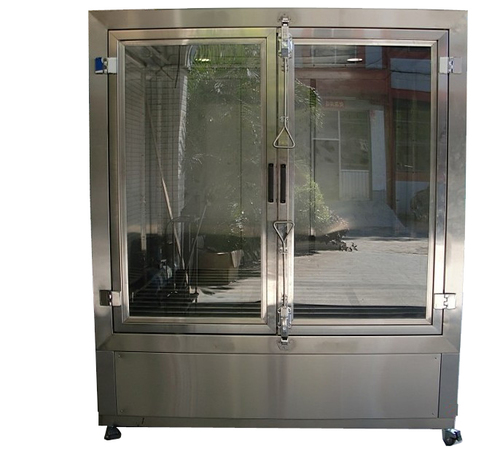

Fully Automatic Floor-standing Rain Spray Test Chamber HD-E710

Send Inquiry

Request To Call Back

Fully Automatic Floor-standing Rain Spray Test Chamber HD-E710

Get a Price/Quote

MOQ : 1 Set

Fully Automatic Floor-standing Rain Spray Test Chamber HD-E710 Specification

Automation Grade
Fully automatic

Equipment Type
Rain spray test chamber

Mounting Type
Floor-standing

Port Size
Standard DN15 water connection

Number of Specimens
12 pcs

Features
Programmable cycle, automatic water supply, emergency stop, real-time monitoring

Interface Type
RS232/USB data interface

Temperature
Room temperature to 60C Celsius (oC)

Humidity
65%~98% RH (adjustable)

Frequency
50Hz Hertz (HZ)

Max Height
Chamber internal height: 600 mm

Resolution
0.1 mm/min rainfall adjustment

Response Time
<1 second Seconds

Test Range
Rainfall intensity 18 mm/min

Accuracy
2% water flow accuracy %

Specimen Size
Max. 500600500 mm (WxDxH) Millimeter (mm)

Operating Voltage
220V / 50Hz Volt (V)

Power Supply
AC 220V10%, 50Hz

Application
Ingress protection (IPX1-IPX4) waterproof testing of electronics, auto parts, enclosures, etc.

Display Type
7-inch LCD touchscreen

Usage
Industrial & laboratory waterproof testing

Capacity
350 liters Ltr

Machine Weight
Approx. 180 kg Kilograms (kg)

Test Speed
Adjustable (0-2 rpm for spray head turntable)

Test Width
600 mm Millimeter (mm)

Test Stroke
500 mm

Control Mode
Programmable touch screen PLC control

Turntable Diameter
400 mm

Ambient Temp Range
+5C to +40C

Spray Hole Diameter
0.4 mm (standard nozzle)

Safety Protection
Overload, short circuit, water shortage, leakage protection

Turntable Load Capacity
Max 50 kg

Noise Level
<65 dB(A)

Drain Mode
Manual or automatic

Water Flow Rate
0.070.9 L/min, adjustable

Water Spray Angles
0180, adjustable

Timer Range
09999 min

Chamber Material
High-grade SUS304 stainless steel

Compliance Standard
IEC 60529, GB4208, IPX test standards

Fully Automatic Floor-standing Rain Spray Test Chamber HD-E710 Trade Information

Minimum Order Quantity
1 Set

FOB Port
Shenzhen

Supply Ability
1 Set Per Month

Delivery Time
30 Days

Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Fully Automatic Floor-standing Rain Spray Test Chamber HD-E710 About

Feature

Studio equipped with lighting equipment
Rain time, interval time, rainfall intensity, regulate and control apart.

The main technical parameters:

Spray ring radius 375 and 500mm
Water pipe diameter 16mm
Spray orifice diameter04mm
Aperture spacing500mm
Swing pipe 456090180theory number
Test stands rotate speed 1rmincan be no quarter speed adjustment
ControllerImport FM type inverter
Times controllerImport programmable computer integrated time controller Jin Zhong Mo le
Water pressure control flow gauge
Observation planeLarge area of toughened glass door visualization
Water supply system booster pump water storage
Safety protection leakage Short circuit Motor overheating
Power supply110V 60HZ

Chamber structure:

The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
Large area of visible glass door, easy to observe the test specimens in the testing chamber
The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
With 270 degree swing pipe & 360 degrees whorl pole water jet device.
Adjustable speed samples stage.

Advanced Waterproof Testing Capabilities

The HD-E710 enables rigorous IPX1IPX4 waterproof testing for electronics, automotive parts, and protective enclosures. Its programmable features and adjustable test parameters allow for thorough assessment under various rainfall intensities and spray angles, ensuring compliance and reliability for diverse industrial applications.

User-Friendly, Fully Automatic Operation

Operating the HD-E710 is simple, thanks to its 7-inch LCD touchscreen and PLC control system. The chamber supports programmable test cycles, automatic water supply, and emergency stop functions, streamlining the testing process and guaranteeing efficient, consistent results for both laboratory and factory settings.

Built-In Safety and Precision Features

Safety is a priority with overload, short circuit, water shortage, and leakage protections integrated into the system. Precision is assured by accurate water flow measurement (2%) and real-time monitoring, delivering dependable performance and reproducible test data for manufacturers, suppliers, and end-users.

FAQs of Rain spray test chamber HD-E710:

Q: How do I perform a rain spray test with the HD-E710 chamber?

A: Begin by placing your specimen on the chambers turntable, select your desired spray angle and water flow rate using the touch screen PLC control, and set the timer. The chamber automatically executes the test cycle according to IPX1IPX4 standards, with adjustable speed, rainfall intensity, and programmable monitoring throughout the process.

Q: What are the main applications of the HD-E710 Rain Spray Test Chamber?

A: This chamber is commonly used in assessing ingress protection of electronics, automotive parts, enclosures, and other industrial components. It verifies waterproof integrity, helping manufacturers comply with IEC 60529 and GB4208 standards for product safety and durability.

Q: When should I use adjustable water flow and spray angles during testing?

A: Adjust water flow and spray angles when simulating different rainfall intensities and coverage scenarios required by specific IPX test conditions. This customization is essential to mimic real-world conditions and to ensure your products meet their claimed protective ratings.

Q: Where is the HD-E710 chamber best installed for operation?

A: This floor-standing machine is suitable for industrial or laboratory environments, ideally placed where water drainage and stable power supply (AC 220V, 50Hz) are accessible. Its moderate noise level (<65 dB(A)) allows for safe use in enclosed testing spaces.

Q: What is the process for data acquisition and monitoring during a test?

A: Test data is continuously monitored and displayed on the integrated 7-inch LCD touchscreen. For detailed analysis, the chamber supports RS232/USB data interface for exporting records of water flow, test cycle progress, and specimen performance metrics.

Q: How does the HD-E710 benefit manufacturers or suppliers?

A: This chamber offers reliable, standardized waterproof assessment, helping reduce product failures and ensuring regulatory compliance. Its automated, precise controls and robust safety features streamline quality assurance and support manufacturers, distributors, and other stakeholders in maintaining high production standards.
