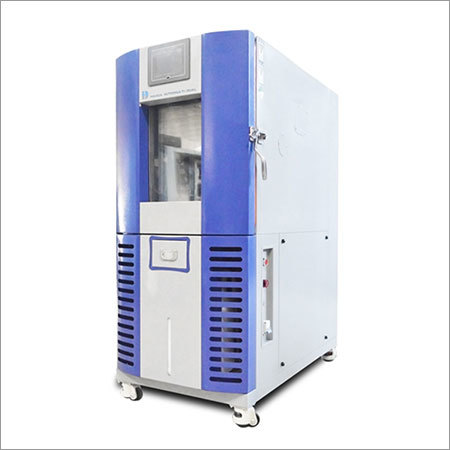

Send InquiryTemperature Humidity Environment Test Chamber
MOQ : 1 Set
Temperature Humidity Environment Test Chamber Specification
- Equipment Type
- Temperature & Humidity Chamber
- Humidity
- 20% ~ 98% RH (Adjustable)
- Resolution
- 0.1°C, 0.1% RH
- Test Range
- Temperature and Humidity
- Automation Grade
- Automatic
- Response Time
- Within 5 minutes
- Measuring Range
- -40°C to 150°C, 20%~98% RH
- Port Size
- 50 mm dia (cable port)
- Temperature
- -40°C ~ +150°C
- Gas Pressure
- Atmospheric
- Number of Specimens
- 1~3 (Depending on size)
- Application
- Environmental Testing, Aging Test, Stability Testing
- Display Type
- Digital LCD Touchscreen
- Frequency
- 50 Hz
- Specimen Size
- Customizable
- Operating Voltage
- 220V
- Features
- Programmable, Overheat Protection, Data Logging
- Accuracy
- ±0.5°C, ±2.5% RH
- Interface Type
- RS232/USB
- Max Height
- 1200 mm
- Power Supply
- 220V AC, 50Hz
- Mounting Type
- Floor Standing
- Usage
- Industrial, Laboratory
- Capacity
- 150 L
- Machine Weight
- 320 kg
- Test Speed
- 0.5~5°C/min (Adjustable)
- Test Width
- 500 mm
- Test Stroke
- 600 mm
- Control Mode
- Programmable Controller (Touch Screen)
- Material (Inner/Outer)
- SUS304 Stainless Steel / Cold Rolled Steel Plate
- Cooling Method
- Air Cooled
- Observation Window
- Tempered Glass
- Lighting Device
- Interior LED Light
- Humidity Control Method
- Steam Generator
- Compressor Type
- Fully Sealed Rotary
- Noise Level
- 68 dB
- Accessories
- Shelves, Cable Ports, Wheels
- Internal Dimensions
- 500(W) x 600(H) x 500(D) mm
- External Dimensions
- 950(W) x 1550(H) x 1100(D) mm
- Safety Device
- Ground Leakage Overload Overheating Protection
- Refrigerant
- R404A/R23
Temperature Humidity Environment Test Chamber Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shenzhen China
- Supply Ability
- 150 Sets Per Month
- Delivery Time
- 15 days after received the order Days
- Packaging Details
- Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Temperature Humidity Environment Test Chamber About
Constant Temperature humidity test chambers
Product Descriptio nConstant Temperature Humidity Chambers can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-70~+150), humidity testing (20~98%R.H.),both of temerature and humidity testing at the same time.chamber power can be customized.
Application industry (not limited to the following):
- Electronic products: mobile phones, computers, television, video recorders and so on
- Textile fabric products: clothes, hats, shoes, ropes
- Wire and cable: data cable, usb,
- Leather products: handbags, wallets, leather shoes, leather chairs
- Instrumentation, vehicles, plastic products, metal,
- Food, chemical, building materials, medical, aerospace
Test Standard:
EN 14511 test chamber,ASTM,ISO,CE,EN,GB/T, IEC, GB / T5170.5-2008, GB / T10586-2006, GB / T2423.1-2008 test A, GB / T2423.2-2008 test B, GB / T2423.3-2006 test, GB / T2423 .4-2008 and others.
Chamber Specification:
| Item | Specification |
| Internal dimension | (W*D*H) 500*600*750mm(Can be customized) |
| External dimension | (W*D*H) 1000*1170*1650mm(Can be customized) |
| Temperature range | -40~+150 |
| Temperature Accuracy | 1 |
| Humidity range | 20~98%R.H. (Refer Image below) |
| Humidity accuracy | 3%R.H |
| Cooling speed | 1/min in average (without loading) |
| Heating speed | 3/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel with paint spray |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 x 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
Selling point:
- Humanized box structure design. Compared with other models of constant temperature and humidity chamber, 600 * 1080 * 1380 (W * D * H), 150KG specifications of the outer chamber structure, ultra-thin controller in the middle, the chamber is narrower, save space, Placed.
- Fully enclosed structure, low noise refrigeration equipment, with anti-shock system. So that constant temperature and humidity chamber in the detection process more quiet and stable
- With high temperature defogging function and transparent window light lighting. You can clearly see the sample to detect the situation inside the test chamber.
- A variety of protection devices, safe and reliable performance.
- Built-in dusty barrels of water tank, not rust, easier to clean and clean.
- The inner compartment of the inner compartment can adjust the height. Meet different sizes of samples
- Four corners of the box with a large arc angle design. Easy to clean.
- 3 layers of vacuum tempered glass window.
- Economic and efficient
Intelligent programming operating system
Precise Environmental Control
This chamber ensures highly accurate temperature (0.5C) and humidity (2.5% RH) control, with fast response and wide ranges, supporting repeatable and reliable results for stability and reliability testing.
Advanced User-Friendly Operation
A digital LCD touchscreen controller offers intuitive programming and data logging. Seamlessly connect via RS232 or USB for data export and remote monitoring. Window and LED features allow easy specimen observation during tests.
Robust Construction and Versatility
Its inner SUS304 stainless steel and outer cold-rolled steel plate provide durability. The chamber accommodates various specimen sizes, supports 1-3 samples per cycle, and is easily movable with integrated wheels, suiting both laboratory and industrial environments.
FAQs of Temperature Humidity Environment Test Chamber:
Q: How does the temperature and humidity control system function in this chamber?
A: The chamber utilizes a programmable touchscreen controller to maintain temperatures between -40C and +150C and humidity from 20% to 98% RH. A steam generator and rotary compressor, combined with precise sensors, ensure rapid, consistent, and accurate environmental conditions throughout the test cycle.Q: What is the process for loading and observing specimens during environmental testing?
A: Users can load 1 to 3 test specimens (size dependent) onto the provided shelves through the front access. The tempered glass observation window and internal LED lighting make it simple to monitor specimens status during testing without disturbing the chambers environment.Q: When is it beneficial to use this environment test chamber?
A: This chamber is ideal for product aging, stability, quality control, and environmental impact testing, especially when precise temperature and humidity simulation is required, such as in R&D labs, industrial quality testing, or compliance assessments.Q: Where can this test chamber be installed and used?
A: As a floor-standing unit with wheels, it is suitable for installation in industrial labs, research institutions, manufacturing quality departments, and testing laboratories. Its manageable size and robust build ensure adaptability to various environments.Q: What safety features are integrated into the chamber for secure testing?
A: The chamber provides multiple safety measures, including protection against ground leakage, overload, and overheating. These features help to safeguard both users and tested specimens, ensuring reliability during continuous operation.Q: How does data management and export work with this equipment?
A: All tests and environmental readings are displayed on the LCD touchscreen and can be logged digitally. The chamber supports RS232 and USB interfaces for effortless data export and integration with external monitoring systems or computers.
