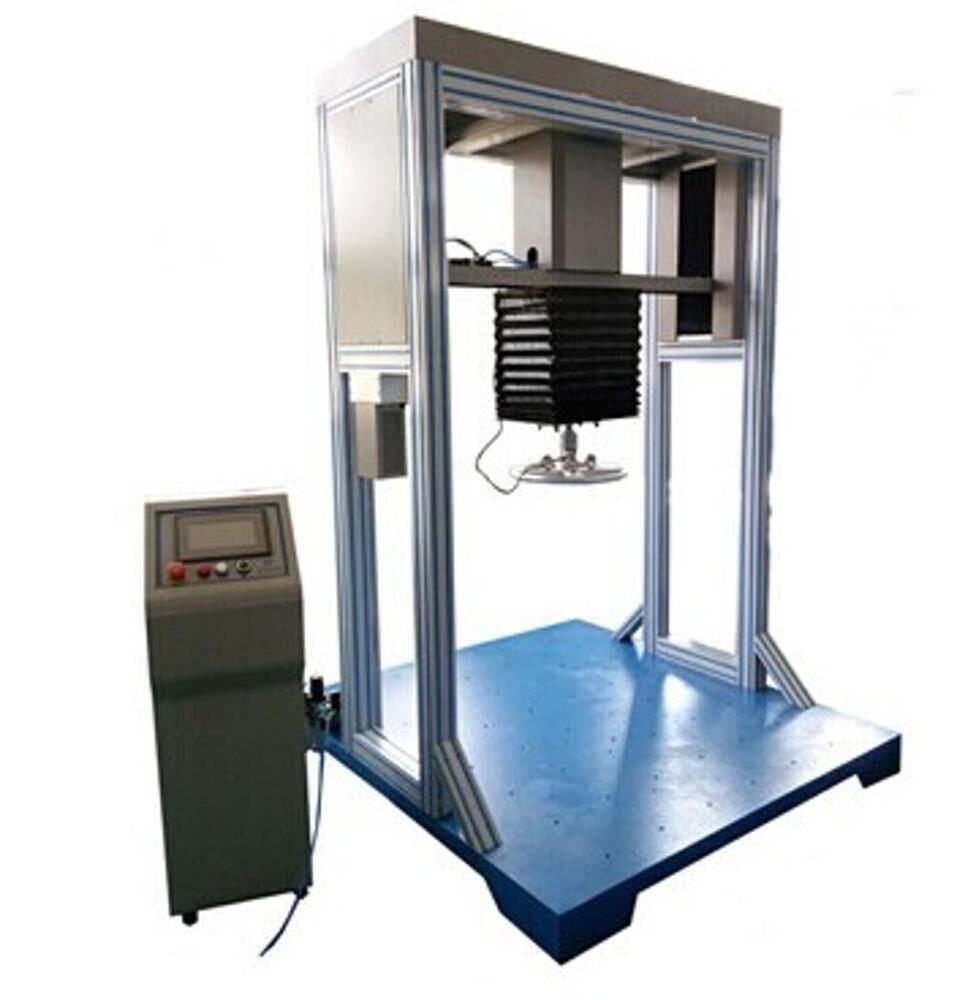

Test Machine for Chair

2000.00 - 6500.00 USD ($)

Get a Price/Quote

Product Details:

Port Size Standard air inlet 1/4
Temperature 1040C (operating range)
Accuracy 1% of reading
Mounting Type Floor standing
Max Height 1200 mm specimen height
Frequency Normal 50Hz operation
Number of Specimens Up to 2 chairs per test
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Test Machine for Chair Price And Quantity

Price Range 2000.00 - 6500.00 USD ($)
Minimum Order Quantity 1 Set

Safety Mechanism Emergency stop, overload alarm, lockout
Maintenance Low maintenance, easy-access service points
Cycle Count Range 0-999,999 programmable cycles
Finish Powder-coated mild steel
Fixture Adjustment Multi-angle, multi-position clamping
Data Logging Built-in memory and export capability
Noise Level <60 dB during operation
Machine Dimensions 1500 x 800 x 1800 mm (L x W x H)

Test Machine for Chair Product Specifications

Temperature 1040C (operating range)
Test Width 500-1000 mm (adjustable platform)
Port Size Standard air inlet 1/4
Accuracy 1% of reading
Control Mode Digital control with touch screen interface
Mounting Type Floor standing
Frequency Normal 50Hz operation
Max Height 1200 mm specimen height
Number of Specimens Up to 2 chairs per test
Features Programmable cycles, automatic stop, overload protection, emergency stop, adjustable fixtures
Machine Weight Approx. 250 kg
Hardness Test elements HRC 45-50
Test Speed 10-30 cycles/min adjustable
Humidity 2090% RH (operating range)
Interface Type USB data output
Usage Mechanical chair testing
Specimen Size Standard chair size (up to 1.2 m height)
Measuring Range 0200 kg
Application Durability and stability testing for office, dining, and school chairs
Gas Pressure 0.50.8 MPa
Response Time <1 s
Automation Grade Fully automatic
Power Supply 220V AC, 50Hz
Resolution 0.1 kg
Capacity 200 kg max
Test Stroke 0-300 mm adjustable
Test Range 0200 kg loading
Operating Voltage 220V AC
Equipment Type Chair Durability Test Machine
Display Type Digital LCD

Safety Mechanism Emergency stop, overload alarm, lockout
Maintenance Low maintenance, easy-access service points
Cycle Count Range 0-999,999 programmable cycles
Finish Powder-coated mild steel
Fixture Adjustment Multi-angle, multi-position clamping
Data Logging Built-in memory and export capability
Noise Level <60 dB during operation
Machine Dimensions 1500 x 800 x 1800 mm (L x W x H)

Test Machine for Chair Trade Information

FOB Port shenzhen
Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Delivery Point (DP), Letter of Credit (L/C), Paypal, Western Union, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque
Supply Ability 150 Set Per Month
Delivery Time 15 Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Main Export Market(s) Australia, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia, North America

Product Description

Specifications

Test Machine for Chair :
It is used to test the durability of the seat of the chair.

Drop Impact Test Machine for Chair

The usage

Chair Seating Cyclic ImpactTesterisa two station testing equipment.

According to test Standard: BIFMA X5.1-2002, Test No. 8,11
Applicability: This test applies to all types of chairs.
Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test.

Specifications

Drop Impact Test Machine for Chair

Mode	HD-F736
Counter	0-999,999,memory,outputcontrol
Impactsandbagsdiameter	16inch125poundsstandardsandbbags
Staticpressuremoulddiameter	8inch,165poundsbriquetting
Impactspeed	10-30times/minuteorspecified
Staticpressurespeed	10-30times/minuteorspecified
Cylinderstroke	0-300mm
Railheight	90-135cm
Machinesize	2708580cm
Power	AC220V,3A
BIFMArequirements	impact100000times+staticpressure20000times(left) +staticpressure20000times(right)

Programmable and Versatile Testing

This machine allows for up to 999,999 programmable test cycles and accommodates up to two chairs per test on an adjustable platform (500-1000 mm wide). Precision fixtures enable multi-angle and multi-position clamping, making it ideal for testing diverse chair designs for both durability and stability. Its user-friendly touchscreen interface and digital controls streamline operations and help achieve repeatable, accurate results.

Data Logging and Export for Traceability

Built-in memory and USB data output let you efficiently log test data and export results for compliance documentation, quality assurance, or further analysis. The digital LCD display offers real-time monitoring with high accuracy (1% of reading) and fast response time (<1 s).

Safety and Maintenance

Operational safety is enhanced with an emergency stop, overload protection, and a lockout system. Easy-access service points and a low-maintenance design minimize downtime, making this machine a reliable addition to busy testing facilities. Equipped with a powder-coated finish, it is robust against wear and environmental factors.

FAQs of Test Machine for Chair:

Q: How does the Chair Durability Test Machine operate and record test data?

A: The machine performs programmable, fully automatic cycles to test chair durability and stability. It uses a digital touchscreen for control and built-in memory for data logging. Test results can be easily exported via USB for record-keeping or analysis.

Q: What types of chairs can this machine test, and what are the size and weight requirements?

A: It can test standard chair specimens up to 1.2 meters in height and 200 kg in weight. The adjustable platform (5001000 mm) and versatile clamping accommodate a variety of office, dining, and school chair designs.

Q: When should I use this tester in my quality assurance process?

A: This machine should be used during product development, certification, or batch testing phases to verify the durability and stability of chairs before they are released to the market or after design modifications.

Q: Where is this machine typically installed, and what are its electrical and environmental requirements?

A: It is floor-mounted and suitable for laboratories, manufacturing quality control areas, or product certification centers. The machine requires a 220V AC, 50Hz supply, standard air inlet (1/4), and operates best at 1040C temperature and 2090% relative humidity.

Q: What is the process for setting up and conducting a chair durability test?

A: Place up to two chairs on the adjustable platform, position the fixtures for the chosen test angles, and input desired test parameters on the touchscreen (e.g., load, cycles, speed). Start the automated test, monitor via LCD, and export data after completion.

Q: Is the machine easy to maintain, and what safety features are included?

A: Yes, it has low-maintenance requirements with easy-access service points. Safety is ensured through emergency stop buttons, overload alarms, and lockout mechanisms to protect both operators and equipment.

Q: What are the main benefits of using this chair testing machine?

A: The machine ensures reliable, standardized testing results, boosts quality assurance, streamlines data management, and provides robust protection for operators due to advanced safety mechanisms. Its automated and programmable features enhance productivity and testing repeatability.
