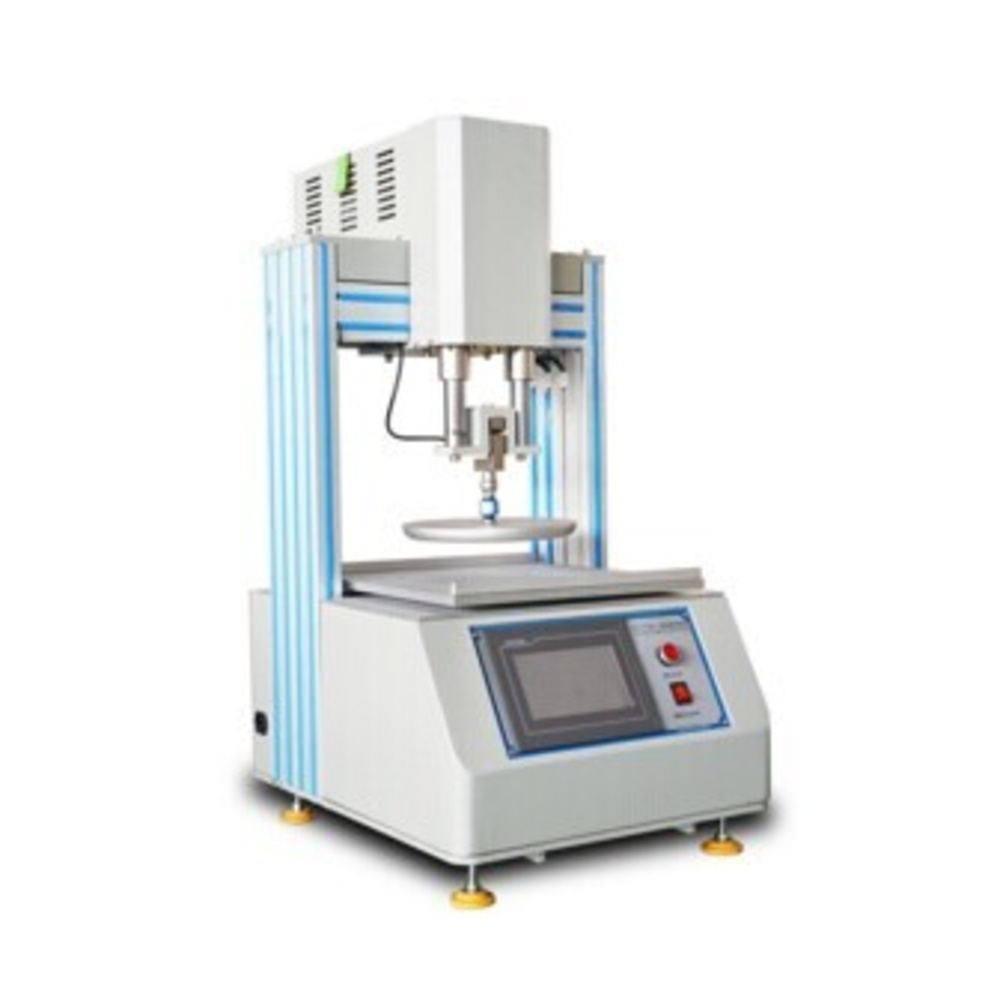

Sponge foam compression testing machine

2500.00 - 5500.00 USD ($)

Get a Price/Quote

Product Details:

Application Sponge and Foam Compression Strength Testing
Display Type Digital Display
Response Time <1 Sec
Port Size Standard Laboratory Port
Measuring Range 0-1000 N
Power Supply 220V AC, 50Hz
Frequency 50 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Sponge foam compression testing machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 2500.00 - 5500.00 USD ($)

Test Method ASTM D3574, ISO 2439
Construction Material Mild Steel, Powder Coated
Data Output Real-time, Printable
Motor Type AC Servo Motor
Load Cell Type High Precision S Type
Software Support Analysis Software Included
Safety Features Emergency Stop, Overload Protection
Packing Type Wooden Box
Calibration Auto Calibration Facility
Compression Plate Size 500 mm 500 mm
Memory Test Data Storage up to 500 Results
Service Support On-site and Remote

Sponge foam compression testing machine Product Specifications

Application Sponge and Foam Compression Strength Testing
Test Width 600 mm
Test Speed 10-300 mm/min (adjustable)
Response Time <1 Sec
Display Type Digital Display
Port Size Standard Laboratory Port
Measuring Range 0-1000 N
Power Supply 220V AC, 50Hz
Gas Pressure Not Required (Electrical Operation)
Frequency 50 Hz
Specimen Size 500 mm 500 mm 50 mm
Operating Voltage 220V AC
Interface Type USB/RS232
Humidity 20%-80% RH
Capacity 1000 N
Usage Foam Quality Control, R&D Laboratory
Hardness Suitable for 5-80 Shore A
Equipment Type Foam Compression Testing Machine
Resolution 0.1 N
Control Mode Digital Microprocessor Based
Test Range 0-300 mm Compression
Mounting Type Floor Standing
Automation Grade Automatic
Features Programmable, User Friendly, Digital Control Panel
Max Height 700 mm
Number of Specimens 1
Accuracy 1% of Reading
Test Stroke up to 300 mm
Temperature 10C to 40C
Machine Weight Approx. 120 kg

Test Method ASTM D3574, ISO 2439
Construction Material Mild Steel, Powder Coated
Data Output Real-time, Printable
Motor Type AC Servo Motor
Load Cell Type High Precision S Type
Software Support Analysis Software Included
Safety Features Emergency Stop, Overload Protection
Packing Type Wooden Box
Calibration Auto Calibration Facility
Compression Plate Size 500 mm 500 mm
Memory Test Data Storage up to 500 Results
Service Support On-site and Remote

Sponge foam compression testing machine Trade Information

FOB Port shenzhen
Supply Ability 150 Set Per Month
Delivery Time 15 Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Product Description

product introductio

Sponge foam compression testing machine is mainly used for fatiguer eciprocating foam polymeric material compression test determination of residualde formation rate Then we can know the dynamic fatigue properties of materials

the main technical parameters

head speed 100MMMIN
indentation hardness measurement range 020000 N
force minimum resolution 025 N
the measurement accuracy 1
indentation deformation precision 025
loading capacity values 02000N adjustable
the table size length 600mm width 600mm high 300mm support plate size is larger than the table size
head size 00314 square meters the effective stroke head from a to 200mm
stop automatically after the test print the test report
host size 750750900mm
the power supply specification 220V 500W
ambient temperature room temperature
environmental humidity 80

sponge indentation hardness and fatigue tester main parts

PLC Huichuan
Touch screen KunLun on state
Electric Taiwan Auban and Japan Panasonic servo motor
Electrical accessories OMRON
The sensor made in China
Reducer Taiwan brand

High Precision and User-Friendly Operation

Equipped with a high-precision S Type load cell and digital microprocessor-based control, this compression testing machine ensures reliability and ease of use. Its digital display provides result accuracy within 1% of reading, while the included analysis software enables convenient data management and real-time, printable outputs. The programmable interface and user-friendly control panel make it suitable for routine quality checks as well as advanced laboratory applications.

Robust Safety and Construction Features

Built from powder-coated mild steel, the machine offers long-lasting durability and stable performance. Integrated safety mechanisms such as emergency stop and overload protection prioritize operator safety. Floor-standing installation and a heavy-duty wooden box for packing guarantee secure transportation and placement in various laboratory environments.

Comprehensive Service and Versatile Applications

Designed to support both on-site and remote service solutions, the testing machine is a reliable choice for dealers, exporters, and R&D laboratories alike. Its broad compatibility with foam specimens (580 Shore A hardness) and programmable settings make it suitable for a range of compression strength assessments, contributing to improved product quality in manufacturing and research sectors.

FAQs of Sponge foam compression testing machine:

Q: How does the Sponge Foam Compression Testing Machine ensure accurate test results?

A: Accuracy is achieved through a high-precision S Type load cell and automatic calibration. The digital microprocessor control guarantees precise force application and measurement within an accuracy of 1% of the reading, with data displayed in real-time.

Q: What materials and standards does this testing machine support?

A: The machine is constructed from powder-coated mild steel for durability and corrosion resistance. It is designed to test the compression strength of sponges and foams according to ASTM D3574 and ISO 2439 standards, accommodating specimens up to 500 mm 500 mm 50 mm.

Q: When should maintenance and calibration be performed on the machine?

A: The system features an auto calibration facility, streamlining routine calibration needs. Maintenance should follow the manufacturers schedule, or before critical testing cycles, to ensure consistent performance and safety compliance.

Q: Where can this machine be installed and used?

A: Installation is typically in R&D laboratories, foam manufacturers quality control centers, or academic research facilities. Its floor-standing design and standard laboratory port fit most technical settings, with packing in a wooden box facilitating easy shipment and setup.

Q: What is the process for testing foam specimens?

A: Specimens are placed on the 500 mm 500 mm compression plate. The digital controls allow the operator to set testing parameters such as speed (10300 mm/min) and stroke (up to 300 mm). Test results are digitally displayed and can be analyzed or printed using the included software.

Q: How can saved test data be accessed and analyzed?

A: Up to 500 test results can be stored within the machine. Data can be retrieved, printed, or exported via USB/RS232 interfaces, and analyzed using the onboard software for comprehensive quality assessments.

Q: What benefits does the machine offer for dispensers and exporters in Zimbabwe?

A: Dealers, distributors, manufacturers, and exporters benefit from a reliable, automated solution with on-site and remote service support. The machines programmable features, user-friendly digital panel, and robust safety protocols minimize downtime and optimize test consistency, serving diverse industry and research needs.
