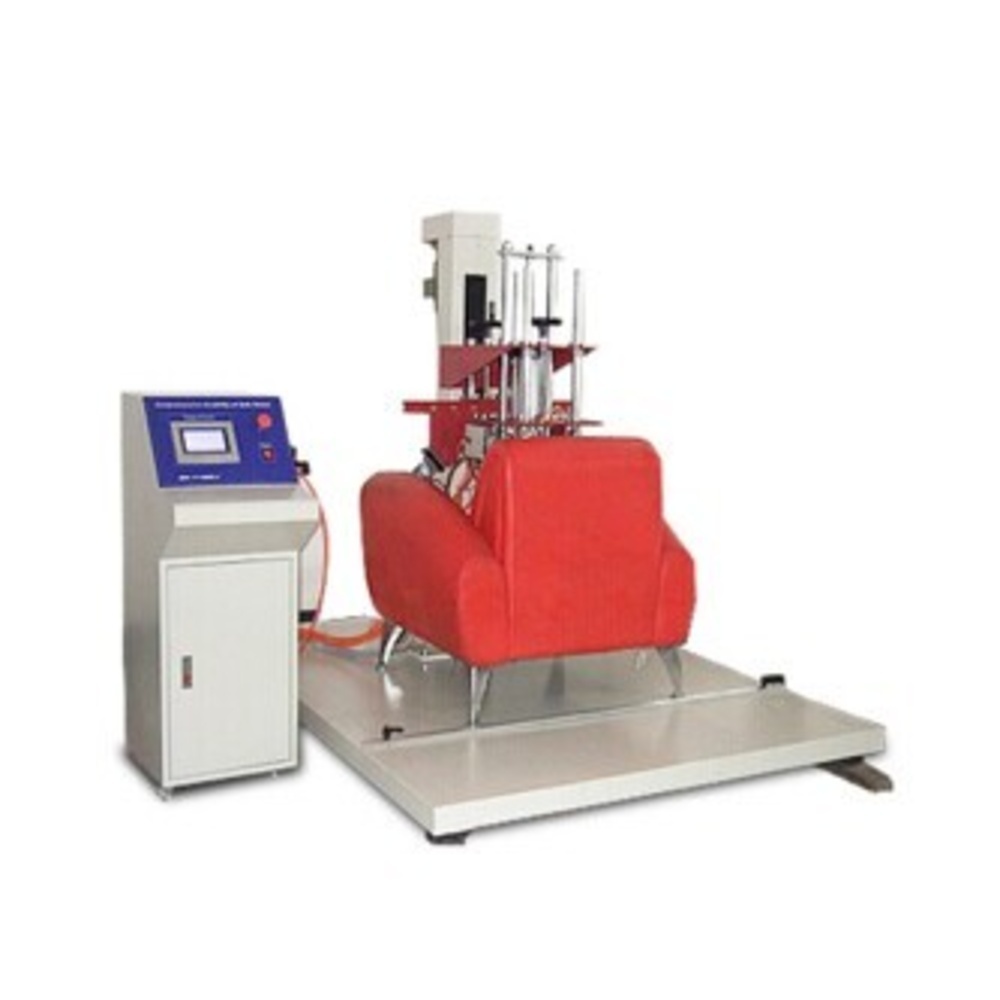

Single Seat Sofa Durability Tester

2500.00 - 6500.00 USD ($)

Get a Price/Quote

Product Details:

Frequency 50Hz
Test Range 0-200,000 cycles
Gas Pressure 6 bar
Mounting Type Floor Standing
Application Sofa seat durability and fatigue test
Display Type Digital touch panel
Measuring Range 0-250 kg
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Single Seat Sofa Durability Tester Price And Quantity

Price Range 2500.00 - 6500.00 USD ($)
Minimum Order Quantity 1 Set

Actuator Type Pneumatic cylinders
Service Life Designed for continuous operation
Transport Wheels with locking facility
Safety Protection Emergency stop and overload protection
Testing Standard ANSI/BIFMA X5.4
Noise Level <60 dB
Cycle Counter Digital
Calibration Included
Remote Operation Available via software
Dimensions 1900mm x 950mm x 1450mm
Fixture Material Powder coated steel
Surface Finish Anti-rust insulation
Colour Industrial grey
Operation Mode Manual & Automatic

Single Seat Sofa Durability Tester Product Specifications

Port Size 8 mm
Usage Furniture Durability Testing
Operating Voltage 220V
Test Stroke 30-250 mm
Specimen Size Single seat sofa standard size
Power Supply AC 220V, 50Hz
Max Height 1500 mm
Machine Weight 285 kg
Automation Grade Automatic
Control Mode PLC touch screen
Hardness Configurable load cell
Features Programmable test cycles
Frequency 50Hz
Test Range 0-200,000 cycles
Gas Pressure 6 bar
Mounting Type Floor Standing
Test Speed 10-30 cycles/min
Application Sofa seat durability and fatigue test
Display Type Digital touch panel
Measuring Range 0-250 kg
Temperature 10C - 40C
Capacity Up to 250 kg
Interface Type RS232/USB
Accuracy 0.5% F.S.
Humidity 20% - 80% RH
Response Time <100 ms
Number of Specimens Single
Test Width 400-900 mm
Equipment Type Durability Testing Machine
Resolution 0.1 kg

Actuator Type Pneumatic cylinders
Service Life Designed for continuous operation
Transport Wheels with locking facility
Safety Protection Emergency stop and overload protection
Testing Standard ANSI/BIFMA X5.4
Noise Level <60 dB
Cycle Counter Digital
Calibration Included
Remote Operation Available via software
Dimensions 1900mm x 950mm x 1450mm
Fixture Material Powder coated steel
Surface Finish Anti-rust insulation
Colour Industrial grey
Operation Mode Manual & Automatic

Single Seat Sofa Durability Tester Trade Information

FOB Port shenzhen
Supply Ability 150 Set Per Month
Delivery Time 15 Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Product Description

Introduction :

Single-seat sofa Durability Tester Overview : for a sofa seat surface , backrest and armrests for alternating endurance test , each equipped with a pressure force point sensor reads pressure .

Single-seat sofa Durability Tester design standards : EN4875

Main function:

This test method is to simulatethe dailyuse conditions ,the test sofa ability to bear thelong-term repeatability of the load.Durability test ofthe sofa seat,back andarm,testwillshape,massloading module,to load theform,frequencyregulation,respectively ,the seat,back andarm suface loading.

The seat surfaceloadingcapacityis750 Newtonbackloadingforceis400 Newtontestcycle : 25000to 200000 times,in addition tothe armresttestcan

SinglepowerEN4875
Pressure sensoraccuracy : 0 . 3%
Fullrange controlpanel:touch screen programmablecontroller +color display
The maximumsize: (L* W *H)1000x 1000 x 1200mm
Total weight:400kg
Power source:1,AC220V,50Hz,compressed air:7kg/cm2

Advanced Durability Testing Technology

Designed for rigorous furniture testing, this machine uses pneumatic actuators and configurable load cells to simulate real-world use with exceptional accuracy. Its digital cycle counter and programmable test parameters allow for customizable assessments, ensuring your products meet industry-leading standards.

Reliable and Intuitive Operation

Equipped with both manual and automatic operation modes, the tester features a smart PLC touch screen that streamlines setting test parameters and monitoring performance. Emergency stop, overload protection, and anti-rust surface treatment provide a safe, reliable, and user-friendly experience.

Versatile Application and Easy Integration

Ideal for manufacturers, suppliers, and quality control labs, this tester supports a broad testing range (0-250 kg, up to 200,000 cycles), industrial-grade mobility with lockable wheels, and simple connectivity via RS232/USB. Durable enough for continuous operation, it adapts easily to various furniture testing requirements.

FAQs of Single Seat Sofa Durability Tester:

Q: How does the pneumatic actuator system contribute to accurate sofa durability testing?

A: The pneumatic actuator system delivers consistent and precise force application across all test cycles, closely replicating real-life seating usage. This accuracy is vital in reliably assessing a sofas structural performance and meeting ANSI/BIFMA X5.4 standards.

Q: What safety protections are included in the Single Seat Sofa Durability Tester?

A: The tester is equipped with an emergency stop function and overload protection mechanisms. These features ensure user and equipment safety by preventing accidental operation and protecting the system from excessive loads or malfunctions.

Q: When should the calibration of this testing machine be performed?

A: Calibration is included upon delivery to ensure measurement accuracy. Regular recalibration is advised, especially before starting critical test batches or when transitioning between significantly different test loads, to maintain 0.5% full-scale accuracy.

Q: Where is this durability tester best utilized?

A: The machine is ideal for use in furniture manufacturing facilities, quality control laboratories, and research and development departments where consistent and standardized sofa durability testing is required.

Q: What is the process for conducting a sofa durability test with this equipment?

A: Begin by securely mounting a standard-size single seat sofa specimen. Set the test parameterscycle count, force, and speedusing the PLC touch panel. The machine, controlled either manually or automatically, will then simulate repeated usage, with results tracked digitally and accessible via remote software.

Q: How can users benefit from the digital cycle counter and programmable test cycles?

A: The digital cycle counter provides accurate cycle tracking up to 200,000 repetitions, supporting detailed durability analysis. Programmable test cycles enable users to customize tests for specific product requirements, optimizing both testing efficiency and outcome relevance.
