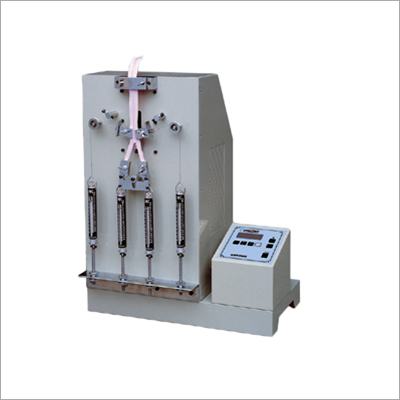

Zipper Pull Test Machine

3200 USD ($)/Unit

Get a Price/Quote

Product Details:

Features Digital display, programmable cycles, easy operation
Capacity Customizable
Accuracy 1% of indicated load
Machine Speed Adjustable
Power Source Electric
Speed Range 30-300 mm/min
Dimension (L*W*H) 600 x 320 x 820 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Zipper Pull Test Machine Price And Quantity

Test Force 20-500N
Minimum Order Quantity 1 Unit
Maximum Test Force 500N
Price 3200 USD ($)/Unit

Test Standard Compliance ASTM D2061, ISO 9001
Data Output USB interface for data export
Packing Details Wooden crate packaging
Clamp Type Adjustable grips for various zipper sizes
Noise Level Less than 65 dB
Display Type LCD Digital
Maintenance Low, easily accessible components
Emergency Stop Available
Cabinet Construction Powder-coated steel enclosure
Operation Mode Manual & Programmable Automatic Modes
Cycle Counter Yes, up to 999999 cycles

Zipper Pull Test Machine Product Specifications

Machine Speed Adjustable
Speed Range 30-300 mm/min
Power Source Electric
Dimension (L*W*H) 600 x 320 x 820 mm
Application For testing zipper pull strength and durability
Sensor High-precision Load Cell
Operating Temperature 10C - 40C
Features Digital display, programmable cycles, easy operation
Material Mild Steel & Aluminum Alloy
Capacity Customizable
Accuracy 1% of indicated load
Frequency 50 Hz
Weight 65 kg
Screw Size M10
Stroke Length Max 300 mm
Power Consumption 200 W
Voltage 220V, 50Hz
Automatic Grade Semi-automatic
Control System Microprocessor-Based
Color Blue & Silver
Resolution 0.01N
Power 220V AC
Product Type Zipper Pull Test Machine
Load Capacity 50 kg
Phase Single Phase

Test Standard Compliance ASTM D2061, ISO 9001
Data Output USB interface for data export
Packing Details Wooden crate packaging
Clamp Type Adjustable grips for various zipper sizes
Noise Level Less than 65 dB
Display Type LCD Digital
Maintenance Low, easily accessible components
Emergency Stop Available
Cabinet Construction Powder-coated steel enclosure
Operation Mode Manual & Programmable Automatic Modes
Cycle Counter Yes, up to 999999 cycles

Zipper Pull Test Machine Trade Information

FOB Port Shenzhen China
Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Letter of Credit (L/C), Paypal, Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 150 Unit Per Month
Delivery Time 15 Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Product Description

Zipper Pull Tester applies to test the zipper under the transverse-oriented and long direction stress with given times.

Zipper Pull Tester applies to test the zipper under the transverse-oriented and long direction stress, test whether the zipper can bear the pulling with given times .During the test, the zipper head will be brought along with the same speed, with 30 times per minute until it pulled with given times..

Specification:

Stroke	75mm
Motor	1/4HP
Counter	LCD, 0-999,999
Machine Size	280550660mm
Weight	35KG
Power	1, AC220V, 3A
Transverse clamping device width	25mm
Total weight of clamping device	0.28-0.34kg
Distance between two device	6.35mm
Opening Angle of sample	60°
Interdigitation angle of sample	30°

Versatile Testing for Various Zippers

With adjustable grips and stroke length of up to 300 mm, this machine is adaptable for different zipper sizes and materials. The programmable cycle counter allows up to 999,999 cycles, enabling detailed evaluation of zipper resilience, essential for manufacturers, suppliers, and retailers seeking consistent product quality.

Enhanced Display and Simple Operation

The integrated LCD digital display ensures clear, real-time data visualization. Users can easily switch between manual and automatic programmable modes via the microprocessor-based control system. An intuitive interface, adjustable speed (30300 mm/min), and emergency stop make operation both safe and straightforward.

Robust Construction and Low Maintenance

Housed in a durable powder-coated steel cabinet, the machine is built to withstand rigorous daily usage. Key components are easily accessible for swift maintenance. It comes packed in a wooden crate for secure transportation, making it a reliable investment for continuous, high-volume testing environments.

FAQs of Zipper Pull Test Machine:

Q: How does the Zipper Pull Test Machine ensure precise measurement during tests?

A: The machine utilizes a high-precision load cell sensor with an accuracy of 1% of the indicated load, providing dependable measurement of zipper pull strength. Its microprocessor-based control system further guarantees consistent test results.

Q: What applications is this test machine best suited for?

A: This tester is designed for manufacturers, exporters, or suppliers who need to assess zipper durability and pull strength, ensuring compliance with ASTM D2061, ISO 9001, and various quality standards in garment and bag production.

Q: When should the programmable automatic mode be used instead of manual operation?

A: The programmable automatic mode is ideal for repetitive batch testing and longer durability assessments, as it allows users to set specific cycles (up to 999,999) and export test data via USB, ensuring efficiency and accuracy.

Q: Where can the data from test cycles be accessed or exported?

A: All test data can be conveniently exported through the built-in USB interface for further analysis and reporting, facilitating easy integration with quality control systems.

Q: What is involved in maintaining this machine, and how often is servicing required?

A: Thanks to its low-maintenance design and easily accessible parts, routine cleaning and periodic checks are generally sufficient. The robust materials and construction minimize the need for frequent servicing, facilitating long-term dependable operation.

Q: What are the benefits of adjustable grips and customizable capacity?

A: Adjustable grips allow secure clamping of various zipper types and sizes, while customizable load capacity (up to 50 kg) ensures versatility for different product specifications, supporting a wide range of industry needs.
