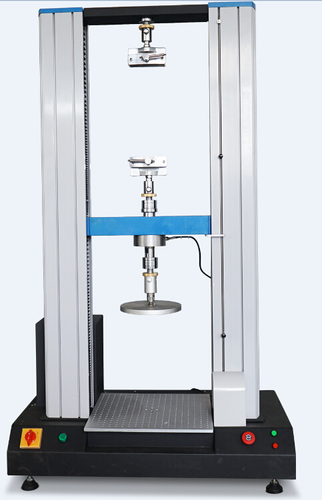

User-friendly Sponge Pressure Filling Testing Machine

Name: User-friendly Sponge Pressure Filling Testing Machine
Brand: HAIDA INTERNATIONAL EQUIPMENT CO., LTD.
Price: 4000 USD
Availability: InStock

4000 USD ($)/Set

Get a Price/Quote

Product Details:

Equipment Type Sponge Pressure Filling Testing Machine
Max Height 600 mm
Operating Voltage 220V AC Volt (V)
Specimen Size 300 x 300 mm (typical) Millimeter (mm)
Automation Grade Semi-Automatic
Number of Specimens 1
Measuring Range 10 N to 1000 N Newton
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

User-friendly Sponge Pressure Filling Testing Machine Price And Quantity

Price 4000 USD ($)/Set
Minimum Order Quantity 1 Set

Operation Panel Touchscreen/web interface
Safety Features Overload protection, emergency stop
Data Storage Internal memory & export to USB
Calibration In-built auto-calibration function
Software Compatible PC software for data analysis
Noise Level <55 dB(A)
Compression Plate Diameter 200 mm
Force Sensor Type High-precision load cell
Frame Material High-strength coated steel
Test Method Standard Complies with ISO 2439, ASTM D3574

User-friendly Sponge Pressure Filling Testing Machine Product Specifications

Resolution 0.01 N
Usage Industrial/Laboratory
Test Width 400 mm Millimeter (mm)
Accuracy 1% of reading %
Frequency 50 Hz Hertz (HZ)
Humidity 20% - 90% RH
Port Size 1/4 inch
Response Time <1 s Seconds
Gas Pressure 0.6 MPa mpa
Features Programmable settings, peak hold, auto return
Mounting Type Floor standing
Interface Type RS232/USB
Power Supply AC 220V, 50Hz
Test Speed 50 - 500 mm/min (adjustable)
Temperature 10C - 40C Celsius (oC)
Hardness Supports hardness assessment
Application Testing resilience & hardness of sponge, foam, filling materials
Test Stroke 0 - 200 mm
Display Type Digital LCD display
Test Range 10 - 1000 N
Measuring Range 10 N to 1000 N Newton
Number of Specimens 1
Control Mode Digital & PLC based control
Specimen Size 300 x 300 mm (typical) Millimeter (mm)
Automation Grade Semi-Automatic
Operating Voltage 220V AC Volt (V)
Equipment Type Sponge Pressure Filling Testing Machine
Machine Weight Approx. 110 kg Kilograms (kg)
Max Height 600 mm

Operation Panel Touchscreen/web interface
Safety Features Overload protection, emergency stop
Data Storage Internal memory & export to USB
Calibration In-built auto-calibration function
Software Compatible PC software for data analysis
Noise Level <55 dB(A)
Compression Plate Diameter 200 mm
Force Sensor Type High-precision load cell
Frame Material High-strength coated steel
Test Method Standard Complies with ISO 2439, ASTM D3574

User-friendly Sponge Pressure Filling Testing Machine Trade Information

FOB Port Shenzhen
Supply Ability 10-30 Set Per Month
Delivery Time 1 Week
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Certifications CE,ISO

Product Description

The usage:

Sponge pressure filling testing machine can be used for the testing of metal and non-metal materials,such as stretching,compression,bending,fatigue,etc. According to the requirements f ASTM,ISO,etc.

STANDARD FEATURES

Item	Description
Max. Force	2000 kg (20KN)
Load cell	Germany brand load cell for high accuracy
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Stoke	1100mm including fixture
Load cell Resolution	1/250,000
Load Precision	within 0.5%
Test speed	0.01~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Robust Construction and Accurate Performance

This testing machines frame is crafted from high-strength coated steel, offering exceptional durability for frequent industrial or laboratory use. Equipped with a high-precision load cell, its compression plate (200 mm diameter) delivers test results with 1% accuracy. The auto-calibration function ensures consistent performance over time, making it ideal for regular sponge and foam resilience testing.

Advanced User Interface and Data Management

Users benefit from a digital LCD display, touchscreen/web interface, and programmable test settings. Internal memory stores critical results, easily exportable via USB or RS232. The systems compatible PC software provides thorough data analysis, enhancing operational efficiency and supporting detailed reporting for quality assurance requirements.

Safety and Versatility in Testing

Designed with robust overload protection and an emergency stop feature, the machine ensures operator safety even during high-force testing scenarios. Adjustable speed (50500 mm/min), digital and PLC control, and adherence to international test standards (ISO 2439, ASTM D3574) ensure versatility for a range of sample sizes (up to 300 x 300 mm) and sponge types.

FAQs of sponge pressure filling testing machine:

Q: How does the sponge pressure filling testing machine ensure test accuracy and reliability?

A: The machine utilizes a high-precision load cell with 1% accuracy and an in-built auto-calibration function, guaranteeing reliable readings across its measuring range of 10 N to 1000 N. Consistent calibration and advanced digital controls contribute to precise and repeatable results.

Q: What types of materials can be tested with this equipment?

A: This machine is designed for testing the resilience and hardness of various sponge, foam, and filling materials, accommodating typical specimen sizes of 300 x 300 mm and supporting assessments according to ISO 2439 and ASTM D3574 standards.

Q: When and where should this machine be used?

A: Ideal for deployment in industrial and laboratory settings, the machine is suitable whenever accurate evaluation of sponge or foam properties is requiredsuch as in quality control, research and development, or routine inspection processes.

Q: What is the process for conducting a test with this machine?

A: Operators mount the specimen, set programmable parameters via the touchscreen or web panel, and initiate testing. The compression plate applies force at adjustable speeds, while data is captured by the load cell for immediate display and storage. Safety features and auto-return ensure efficient operation throughout the cycle.

Q: How and where can test data be managed and exported?

A: Test data is stored internally and can be exported via USB or RS232 to a compatible PC using dedicated software. This allows comprehensive data analysis, record-keeping, and reporting aligned with laboratory requirements.

Q: What are the benefits of the machines safety features?

A: Integrated overload protection and emergency stop safeguards both the equipment and operators, minimizing risks during high-pressure tests and enhancing operational safety in busy industrial or research environments.
