Foam universal testing machine

4000 USD ($)/Unit

Get a Price/Quote

Product Details:

Interface Type USB/RS232
Resolution 0.01 N
Test Range 0-5000 N
Humidity 20-80% RH
Hardness Test Block Hardness measurement support
Max Height 1000 mm
Accuracy 1% of reading
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Foam universal testing machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 4000 USD ($)/Unit

Test Modes Compression, Tensile, Bending, Shearing, Peeling
Software Compatibility Windows-based analysis software
Frame Construction Heavy-duty powder coated steel
Safety Protection Software and hardware overload protection
Language Support Multi-language display
Calibration Automatic and Manual
Sensor Type High-precision load cell
Data Output PC software, USB export
Pre-load Function Yes
Standards Compliance ASTM D3574, ISO 2439, ISO 3386

Foam universal testing machine Product Specifications

Capacity 500~5000 N (different models available)
Power Supply 220 V AC, 50 Hz
Usage Quality Control / Laboratory Research
Test Speed 50-500 mm/min (adjustable)
Response Time <50 ms
Equipment Type Foam Universal Testing Machine
Number of Specimens Single or Multiple
Automation Grade Semi-automatic
Features Microprocessor based, Overload protection, Emergency Stop, Data Printing, Software Controlled
Specimen Size 380 x 380 x 50 mm (standard, customizable)
Gas Pressure 0.5~0.7 MPa (if pneumatic clamps required)
Measuring Range Full scale
Test Width 500 mm
Control Mode Microcomputer control / Manual
Port Size Standard
Frequency 50 Hz
Humidity 20-80% RH
Machine Weight Approx. 120 kg
Hardness Test Block Hardness measurement support
Test Stroke 1000 mm (max)
Interface Type USB/RS232
Resolution 0.01 N
Test Range 0-5000 N
Temperature 10C35C
Application Compression/tension testing of foam and sponge materials
Display Type Digital LCD display
Mounting Type Floor Standing
Operating Voltage 220V 10%
Accuracy 1% of reading
Max Height 1000 mm

Test Modes Compression, Tensile, Bending, Shearing, Peeling
Software Compatibility Windows-based analysis software
Frame Construction Heavy-duty powder coated steel
Safety Protection Software and hardware overload protection
Language Support Multi-language display
Calibration Automatic and Manual
Sensor Type High-precision load cell
Data Output PC software, USB export
Pre-load Function Yes
Standards Compliance ASTM D3574, ISO 2439, ISO 3386

Foam universal testing machine Trade Information

FOB Port Shenzhen
Supply Ability 10-30 Unit Per Month
Delivery Time 1 Week
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Certifications CE,ISO

Product Description

The usage:

Foam universal testing machine widely used in types of materials,testing the tensile,tearing and peeling,compressive strength,bending shear and three point bending,elogation,sponge,foam and other porous elastic material of the indentatin hardness and compression calculation of pressure ratio......and other physical testing performance.

STANDARD FEATURES

Item	Description
Max. Force	2000 kg (20KN)
Load cell	Germany brand load cell for high accuracy
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Stoke	1100mm including fixture
Load cell Resolution	1/250,000
Load Precision	within 0.5%
Test speed	0.01~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Versatile Test Modes and Adjustable Parameters

This machine supports multiple testing modes, including compression, tensile, bending, shearing, and peeling. Users can customize test speed between 50500 mm/min and adjust specimen size to accommodate various foam products. The microcomputer control system offers precise operation and process flexibility for single or multiple specimens.

Advanced Safety and Precision Features

Equipped with both software and hardware overload protection, emergency stop functionality, and a high-precision load cell, the machine guarantees safe and accurate measurement. The microprocessor-based control enhances response time, while automatic/manual calibration ensures consistent results across repeated tests.

Comprehensive Data Management and Analysis

The PC software facilitates real-time analysis and results export via USB or RS232. Users benefit from multi-language support and digital LCD display, enabling straightforward operation and detailed data output for quality assurance or research applications. Data printing and storage are fully integrated.

FAQs of Foam universal testing machine:

Q: How does the pre-load function improve foam testing accuracy?

A: The pre-load function ensures the specimen is uniformly stressed before starting the main test, reducing measurement discrepancies and enhancing repeatability for compression or tensile tests.

Q: What safety measures are included to protect the machine and user during operation?

A: Safety is ensured with software and hardware overload protections, an emergency stop button, and robust frame construction, effectively minimizing risks during operation and specimen changes.

Q: When should I use automatic versus manual calibration on the testing machine?

A: Automatic calibration streamlines setup for routine testing, while manual calibration is recommended when working with non-standard specimens or whenever high-precision adjustments are required for research protocols.

Q: Where can test data be exported and analyzed from the machine?

A: Test results can be exported via USB or RS232 for analysis, utilizing Windows-based software provided with the machine. The system supports multi-language display and data printing for report generation.

Q: What is the process for adjusting test speed and control mode?

A: Test speed can be conveniently adjusted from 50 to 500 mm/min using the machines digital controls. Operators may choose between microcomputer control for automated testing or manual control for custom protocols.

Q: How does the universal testing machine benefit laboratory research and quality control?

A: The machine provides precise, repeatable testing for foam and sponge materials, complies with international standards, and ensures reliable data output for process optimization, product development, and compliance verification.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Furniture Test Equipment' category

Foam Ball Rebound Test Machine Price : 699 USD ($)/Unit Minimum Order Quantity : 1 Power Supply : AC 220V, 50/60Hz Usage : Lab & Quality Control Testing Application : Testing rebound elasticity of flexible polyurethane foam Automation Grade : Semiautomatic Capacity : Ball weight 16g 0.2g Equipment Type : Foam Resilience Tester Test Speed : Adjustable, 60200 mm/min Response Time : Instantaneous Number of Specimens : 1 Specimen Size : 100 x 100 x 50 mm Gas Pressure : 0.50.7 MPa Measuring Range : 0100% Features : Data storage, automatic calculation Test Width : 100 mm Control Mode : Digital microcomputer control Frequency : 50/60 Hz Port Size : Standard 6mm quick connector Test Stroke : 150 mm Interface Type : RS232 Resolution : 0.1% Test Range : 0100% rebound Machine Weight : 65 kg Humidity : 2080% RH Max Height : 500 mm Accuracy : 0.1% Display Type : Digital LED Display Mounting Type : Benchtop Temperature : 1040C Operating Voltage : 220 V Hardness : Standard foam, 2060 Shore

Send Inquiry

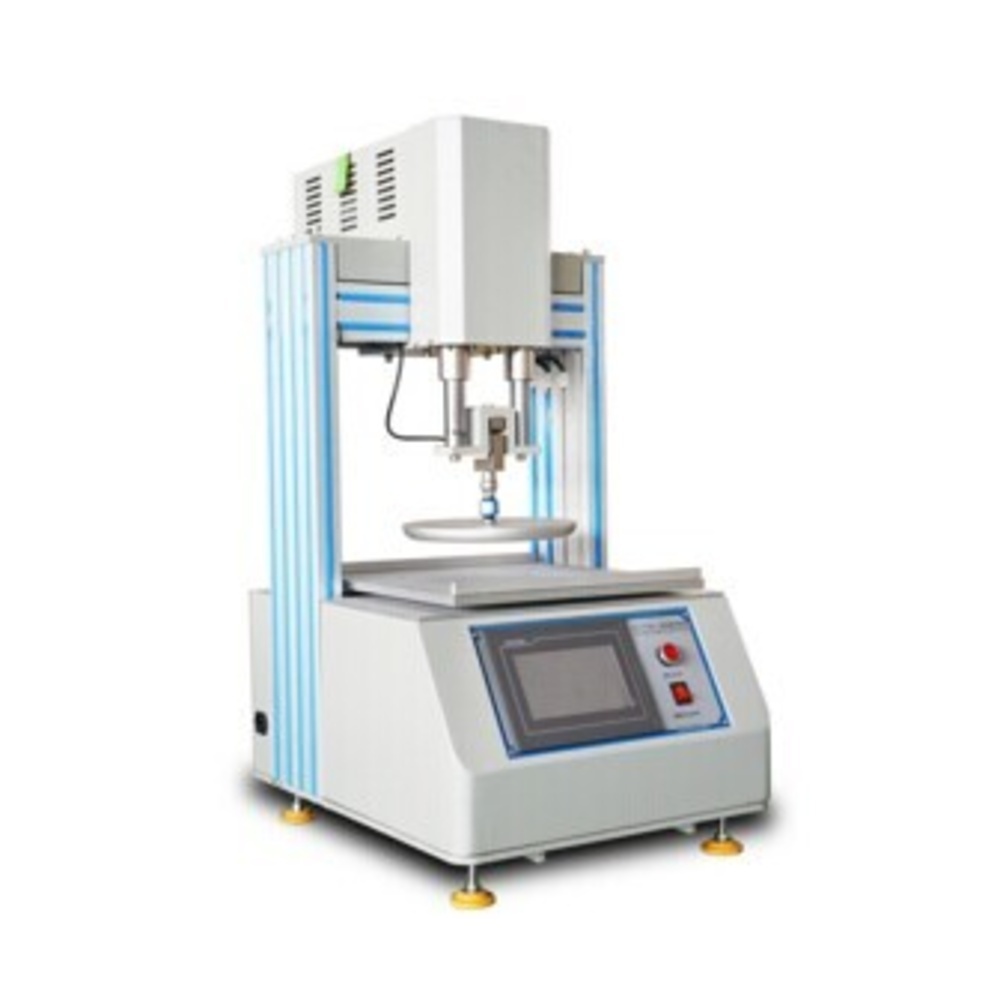

Automatic Computerized IFD Foam Compression Hardness Testing Machine Price : 1800 USD ($)/Unit Minimum Order Quantity : 1 Power Supply : 220V AC, 50Hz Usage : Foam Compression Hardness Testing Application : Foam Indentation Force Deflection Hardness Testing Automation Grade : Fully Automatic Capacity : 2000 N Equipment Type : IFD Foam Compression Hardness Testing Machine Test Speed : 100 mm/min (Adjustable) Response Time : <1 second Number of Specimens : 1 per test cycle Specimen Size : 380 x 380 mm or customized Gas Pressure : 0.6 MPa (Air source required) Measuring Range : 0 2000 N Features : Automatic measurement, graphical report, test data storage Test Width : 500 mm Control Mode : Automatic Computerized Control Frequency : 50Hz Port Size : Standard Test Stroke : Up to 300 mm Interface Type : USB/RS232 (PC Connection) Resolution : 0.1 N Test Range : 0 2000 N Machine Weight : Approx. 250 kg Humidity : Up to 85% RH (noncondensing) Max Height : Up to 300 mm (platen movement) Accuracy : 0.5% F.S. Display Type : Digital (Computer Interface) Mounting Type : Floor mounted Temperature : 10C 40C operating range Operating Voltage : 220V AC Hardness : IFD based, 25%, 40%, 65% compressions
