Foam Strength Testing Equipment

2999 USD ($)/Unit

Get a Price/Quote

Product Details:

Response Time 1 second
Operating Voltage 220V AC
Gas Pressure 0.6 MPa
Power Supply 220V / 50Hz AC
Frequency 50 Hz
Max Height 600 mm
Equipment Type Foam Strength Testing Equipment
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Foam Strength Testing Equipment Price And Quantity

Minimum Order Quantity 1 Unit
Price 2999 USD ($)/Unit

Compression Plate Diameter 200 mm
Calibration In-built Automatic Calibration
Frame Material Powder-Coated Steel
Data Output USB/RS232
Stroke Adjustment Manual/Automatic
Noise Level < 65 dB
Test Method ASTM D3574, ISO 2439 Compliant
Load Cell Type High Precision S-Type
Safety Features Overload & Emergency Stop

Foam Strength Testing Equipment Product Specifications

Test Width 400 mm
Frequency 50 Hz
Response Time 1 second
Power Supply 220V / 50Hz AC
Gas Pressure 0.6 MPa
Operating Voltage 220V AC
Features Microprocessor based control, Overload protection, Data export capability
Equipment Type Foam Strength Testing Equipment
Max Height 600 mm
Humidity 40-85% RH
Automation Grade Semi-Automatic
Test Stroke 0-300 mm
Accuracy 1% FS
Control Mode Digital/Manual
Hardness Appropriate for flexible polyurethane foam
Measuring Range 0-2000 N
Interface Type RS232
Display Type LCD Digital display
Temperature 10-35C
Specimen Size 380 mm x 380 mm x 50 mm
Number of Specimens 1
Port Size 1/4 inch
Machine Weight 65 kg
Test Speed 100 mm/min (adjustable)
Usage Cushion, mattress, foam products, research labs
Capacity 2000 N
Application Testing the compression and strength of foam materials
Resolution 0.1 N
Test Range 0-2000 N
Mounting Type Floor standing

Compression Plate Diameter 200 mm
Calibration In-built Automatic Calibration
Frame Material Powder-Coated Steel
Data Output USB/RS232
Stroke Adjustment Manual/Automatic
Noise Level < 65 dB
Test Method ASTM D3574, ISO 2439 Compliant
Load Cell Type High Precision S-Type
Safety Features Overload & Emergency Stop

Foam Strength Testing Equipment Trade Information

FOB Port Shenzhen
Supply Ability 10-30 Unit Per Month
Delivery Time 1 Week
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Certifications CE,ISO

Product Description

The usage:

This foam strength test equipment is used in various types of metal,rubber,plastics,leather shoes,clothing,textile,insulators and other types of materials. The design of the machine meets the standard requirements of ASTM-3574.

STANDARD FEATURES

	Item	Description
	Max. Force	2000 kg (20KN)
	Load cell	Germany brand load cell for high accuracy
	Control system	PC with windows 7 system
	Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
	Force reading	kgf, Ibf, N, KN, T etc
	Stoke	1100mm including fixture
	Load cell Resolution	1/250,000
	Load Precision	within 0.5%
	Test speed	0.01~500mm/min (adjustable)
	Software	TM 2101
	Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
	Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc
	Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Advanced Load Cell Technology

Utilizing a high-precision S-Type load cell, this testing equipment delivers accurate force measurements up to 2000 N. The built-in microprocessor ensures data reliability and quick response times, meeting the stringent requirements for foam testing applications.

User-Friendly Digital Interface

The LCD digital display provides clear, real-time data, while USB and RS232 outputs enable effortless data export. Operators can choose between semi-automatic or manual control modes, supported by intuitive controls and adjustable test speed and stroke.

Robust Design for Consistent Performance

Constructed from powder-coated steel, the equipment withstands demanding industrial environments. Overload protection, emergency stop features, and low operational noise (<65 dB) ensure safe and efficient operation for manufacturers, suppliers, and researchers.

FAQs of Foam Strength Testing Equipment:

Q: How does the foam strength testing equipment ensure measurement accuracy?

A: This equipment utilizes a high-precision S-Type load cell and automatic in-built calibration, providing accuracy within 1% of the full-scale measurement. The microprocessor-based system and digital LCD display further ensure test results are reliable and consistent for every assessment.

Q: What types of foam materials can be tested with this equipment?

A: The machine is ideally suited for assessing the compression and strength of flexible polyurethane foam materials commonly used in cushions, mattresses, and various foam products, complying with ASTM D3574 and ISO 2439 methodologies.

Q: When should I use the manual versus automatic stroke adjustment modes?

A: Manual mode is ideal for custom or unique test scenarios requiring operator control, whereas automatic stroke adjustment is recommended for standard, repetitive tests where precision and reproducibility are paramountenhancing efficiency and reducing operator intervention.

Q: Where can the testing data be exported, and in what format?

A: Test data can be exported via USB or RS232 interfaces, allowing seamless integration with computers or laboratory information systems. The exported data supports further analysis, reporting, and quality documentation requirements.

Q: What is the process for calibrating this testing equipment?

A: Calibration is managed automatically by the systems in-built function. No manual intervention is required; regular calibration cycles are prompted to maintain measurement accuracy throughout the equipments lifespan.

Q: How does the emergency stop feature enhance safety?

A: The emergency stop provides immediate cessation of all machine operations in critical situations or if overload conditions are detected, protecting both the operator and the equipment from damage or injury.

Q: What are the benefits of using powder-coated steel for the equipments frame?

A: Powder-coated steel enhances the machines durability, resists corrosion, and ensures long-term operational stability, making it suitable for industrial environments, frequent use by manufacturers, and research labs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Furniture Test Equipment' category

Sponge pressure filling testing machine Price : 4000 USD ($)/Unit Minimum Order Quantity : 1 Max Height : 200 mm Features : Automatic reset, Overload protection, Realtime data recording Equipment Type : Sponge pressure filling testing machine Response Time : 1s Gas Pressure : 0.40.8 MPa Power Supply : AC 220V, 50Hz Operating Voltage : 220V AC Test Width : 500 mm Frequency : 50Hz Interface Type : USB/RS232 Display Type : Digital LCD display Measuring Range : 02000 N Humidity : 20% 80% RH Automation Grade : SemiAutomatic Test Stroke : 0200 mm Accuracy : 1% Control Mode : Microcomputer control Machine Weight : 120 kg Test Speed : 20300 mm/min adjustable Usage : Laboratory/Industrial Specimen Size : 380 x 380 mm Port Size : 1/4 inch Number of Specimens : 1 Temperature : 5C 40C Test Range : 02000 N Mounting Type : Floor standing Application : Compression and recovery test for sponge and polyurethane foams Resolution : 0.01 N Capacity : 500/1000/2000N optional Hardness : Applicable for foam hardness test

Send Inquiry

Foam Pounding Fatigue Test Machine Price : 499 USD ($)/Set Minimum Order Quantity : 1 Max Height : Approx. 1200 mm Features : PLC control, Emergency stop, Programmable counter, Autostop Equipment Type : Testing Machine Response Time : <1 s Gas Pressure : 0.50.7 MPa Power Supply : 220V AC, 50 Hz Operating Voltage : 220V Test Width : 300 mm Frequency : 50 Hz Interface Type : RS232/USB Display Type : Digital LCD Measuring Range : 1% F.S. Humidity : 20%~80% RH Automation Grade : Semiautomatic Test Stroke : 50100 mm (adjustable) Accuracy : 0.5% Control Mode : Digital/Programmable Control Machine Weight : Approx. 120 kg Test Speed : 60150 cycles/min (adjustable) Usage : Foam material fatigue life analysis Specimen Size : 380 mm x 380 mm x 50 mm (L x W x H) Port Size : Standard Number of Specimens : 1 Temperature : 5C~35C Test Range : 10,000100,000 cycles Mounting Type : Floor standing Application : Foam fatigue resistance and durability test Resolution : 0.01 mm Capacity : max. 200 kg Hardness : Up to 100 Shore A

Send Inquiry

Foam compression strength tester Price : 4999 USD ($)/Unit Minimum Order Quantity : 1 Max Height : Up to 500 mm Features : Automatic, high precision, data export Equipment Type : Foam Compression Strength Tester Response Time : <10 ms Gas Pressure : 0.5~0.7 MPa Power Supply : AC 220V, 50Hz Operating Voltage : AC 220V Test Width : 400 mm Frequency : 50 Hz Interface Type : USB, RS232 Display Type : LCD Digital Display Measuring Range : 0~2000 N Humidity : 20%~70% RH Automation Grade : Automatic Test Stroke : 0300 mm Accuracy : 1% Control Mode : Microcomputer Controlled Machine Weight : 85 kg Test Speed : 10~200 mm/min (Adjustable) Usage : Laboratory/Test Room Specimen Size : 380 x 380 mm Port Size : Air inlet 8 mm Number of Specimens : 1 Temperature : 10C~40C Test Range : 0~2000 N Mounting Type : Floor Standing Application : Foam, sponge compression and strength testing Resolution : 0.01 N Capacity : 2 KN Hardness : Suitable for soft and semirigid foam

Send Inquiry

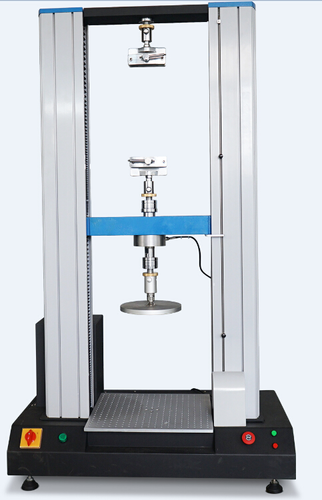

User-friendly Sponge Pressure Filling Testing Machine Price : 4000 USD ($)/Set Minimum Order Quantity : 1 Max Height : 600 mm Features : Programmable settings, peak hold, auto return Equipment Type : Sponge Pressure Filling Testing Machine Response Time : <1 s Seconds Gas Pressure : 0.6 MPa mpa Power Supply : AC 220V, 50Hz Operating Voltage : 220V AC Volt (V) Test Width : 400 mm Millimeter (mm) Frequency : 50 Hz Hertz (HZ) Interface Type : RS232/USB Display Type : Digital LCD display Measuring Range : 10 N to 1000 N Newton Humidity : 20% 90% RH Automation Grade : SemiAutomatic Test Stroke : 0 200 mm Accuracy : 1% of reading % Control Mode : Digital & PLC based control Machine Weight : Approx. 110 kg Kilograms (kg) Test Speed : 50 500 mm/min (adjustable) Usage : Industrial/Laboratory Specimen Size : 300 x 300 mm (typical) Millimeter (mm) Port Size : 1/4 inch Number of Specimens : 1 Temperature : 10C 40C Celsius (oC) Test Range : 10 1000 N Mounting Type : Floor standing Application : Testing resilience & hardness of sponge, foam, filling materials Resolution : 0.01 N Hardness : Supports hardness assessment
