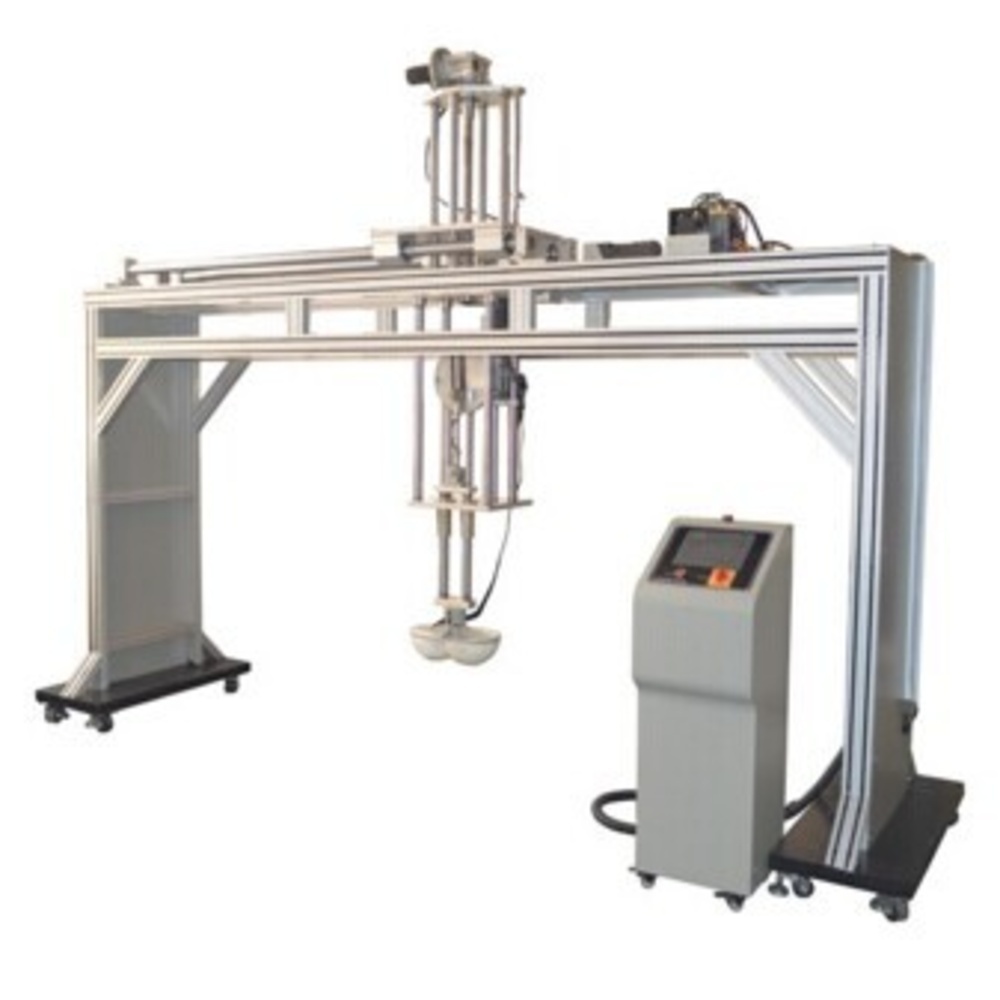

Cornell Mattress Testing Machine

2500.00 - 6500.00 USD ($)

Get a Price/Quote

Product Details:

Automation Grade Automatic
Specimen Size Typical 1.9 m 2 m
Hardness Supports testing up to 90 Shore A
Interface Type Touch screen panel
Response Time Instant (<1s)
Operating Voltage 220V
Frequency 50/60 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Cornell Mattress Testing Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 2500.00 - 6500.00 USD ($)

Cycle Counter Digital preset and recall
Safety Features Overload protection, emergency stop button
Software Windows compatible analysis suite
Load Cell Type High-precision strain gauge
Frame Material Heavy-duty powder-coated steel
Noise Level <65 dB operation
Calibration Automatic with inbuilt reference
Operator Interface 8-inch touchscreen, multilingual support
Data Logging USB & SD card export
Actuator Type Servo-motor driven

Cornell Mattress Testing Machine Product Specifications

Operating Voltage 220V
Frequency 50/60 Hz
Response Time Instant (<1s)
Test Width up to 2 m
Interface Type Touch screen panel
Power Supply AC 220V 10%, 50/60Hz
Accuracy 0.5%
Humidity 20% - 80% RH
Measuring Range 0 - 150 kg
Test Stroke up to 330 mm
Automation Grade Automatic
Usage Lab/Industrial durability testing
Hardness Supports testing up to 90 Shore A
Specimen Size Typical 1.9 m 2 m
Capacity Max 150 kg load
Port Size Standard 1/2 inch
Features Cyclic load test, programmable cycles, real-time monitoring
Display Type Digital LED
Max Height up to 500 mm adjustable
Application Mattress fatigue, structural integrity, compressive stress
Gas Pressure 0.4 0.8 MPa
Machine Weight Approx. 380 kg
Equipment Type Mattress Durability Tester
Test Range 0 - 100,000 cycles
Resolution 0.1 kg
Number of Specimens Single specimen
Temperature 10C - 40C
Test Speed 20 - 300 cycles/min adjustable
Mounting Type Floor-standing
Control Mode Microprocessor based automatic control

Cycle Counter Digital preset and recall
Safety Features Overload protection, emergency stop button
Software Windows compatible analysis suite
Load Cell Type High-precision strain gauge
Frame Material Heavy-duty powder-coated steel
Noise Level <65 dB operation
Calibration Automatic with inbuilt reference
Operator Interface 8-inch touchscreen, multilingual support
Data Logging USB & SD card export
Actuator Type Servo-motor driven

Cornell Mattress Testing Machine Trade Information

FOB Port shenzhen
Supply Ability 150 Set Per Month
Delivery Time 15 Days
Packaging Details Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Product Description

Specifications

Cornell Mattress Testing Machine
Professional design
High qualiy with reasonable price
One year warranty free

The usage

Cornell Mattress Testing Machine apply to Innerspring Box spring mattresses and Foam mattress Cornell Mattress Testing Machine is used to test the long term capacity of bedding to resist cyclic loading Cornell Mattress Testing Machine consists of a double hemispherical ram head on a manually adjustable shaft A load cell is located on the ram head to measure the force being applied to the mattress The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 160 cycles per minute variable

Specification

Cornell Mattress Testing Machine
Design criteria ASTM F 1566
Test objectives Use specific block impact on the mattress over and over again to assess their durability and the fastness of mattress spring
Imposed the pressure on mattress by a transducer pressure range to 300KG
Adjust the pushrod stroke on mattress maximum force 1025N minimum force 22N
Pusher travel speed adjustable about 160 weeks times per minute
Suitable maximum specimen 22M X 22M
Display Accuracy 0001kgf
Deformation precision 0001mm
Impact height 0300mm adjustable
Counter range 099999 times
Power 380V 2KW DC

Advanced Control & Precise Testing

Equipped with a microprocessor-based automatic control system and instantaneous digital response, the Cornell Mattress Testing Machine supports precise load application and real-time cycle monitoring. The inbuilt automatic calibration ensures lasting measurement accuracy, making it a dependable solution for manufacturers, researchers, and quality assurance professionals testing mattresses up to 2 meters wide and weighing up to 150 kg.

Intuitive Operator Interface & Data Management

The 8-inch touchscreen panel with multilingual support streamlines operation, allowing users to program testing cycles, monitor tests live, and recall test data effortlessly. Test results are easily exported for further analysis using the built-in USB and SD card ports, ideal for both local laboratories and large-scale manufacturing plants.

Safety, Reliability, and Versatility

Comprehensive safety features such as overload protection and an emergency stop button provide peace of mind during high-cycle testing sessions. Its robust construction, adaptable test parameters, and adjustable mounting accommodate various mattress types, making it truly versatile for diverse usage needs in the bedding and furniture industries across different climatic conditions.

FAQs of Cornell Mattress Testing Machine:

Q: How does the Cornell Mattress Testing Machine simulate mattress usage during testing?

A: The machine uses a servo-motor driven actuator to repeatedly apply controlled compressive loads onto a mattress, mimicking long-term usage. Adjustable test stroke and speed settings allow it to replicate various real-life sleeping and sitting scenarios over up to 100,000 cycles.

Q: What safety features are incorporated in the testing process?

A: Safety is ensured through built-in overload protection and an emergency stop button. These features safeguard both the operator and equipment during testing by immediately halting operations in case of abnormal loads or emergencies.

Q: When should I perform calibration on this machine?

A: The Cornell Mattress Testing Machine is equipped with an automatic calibration function using an inbuilt reference. Calibration can be conducted before each test or as part of routine maintenance to sustain measurement accuracy.

Q: Where can the machine be used, and does it support different languages?

A: Designed for both laboratory and industrial environments, the machine operates reliably within 10C to 40C and 20%80% humidity. Its operator interface offers multilingual support via the 8-inch touchscreen, making it accessible for global users.

Q: What is the process for exporting test data from the machine?

A: Users can conveniently export test data in real time through the integrated USB and SD card slots. The collected data is compatible with the included Windows analysis suite, simplifying reporting and further examination.

Q: How does real-time monitoring enhance the usability of the mattress tester?

A: The digital LED display and touchscreen interface provide instant feedback on cycle count, load status, and other parameters. This real-time monitoring allows operators to promptly identify and address any issues during testing, improving efficiency and reliability.

Q: What benefits does this machine offer to manufacturers and quality assurance teams?

A: Manufacturers, suppliers, and QA professionals benefit from high accuracy (0.5%), programmed cyclic testing, and consistent performance. The combination of safety, automation, and data management streamlines mattress durability validation, helping companies ensure product quality while meeting industry standards.
