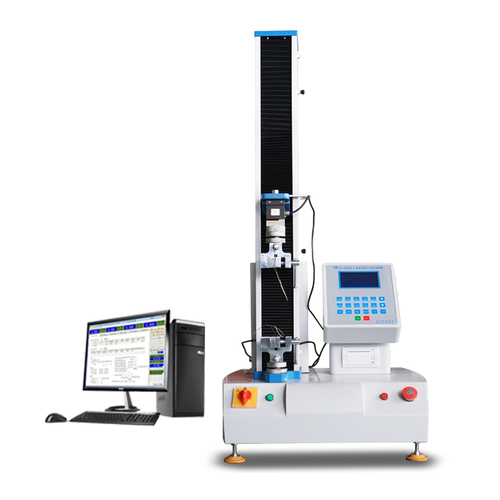

Wire and Cable Tension Testing Machine

Wire and Cable Tension Testing Machine
Wire and Cable Tension Testing Machine
Product Code : HD-B609A
Brand Name : HAIIDA
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 3500 - 7500
  • FOB Port
  • Shenzhen China
  • Payment Terms
  • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal, Others
  • Supply Ability
  • 150 Per Month
  • Delivery Time
  • 15 days after received the order Days
  • Packaging Details
  • Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Product Description

We are the prominent manufacturer and supplier of Wire and Cable Tension Testing Machine that is highly demanded and appreciated by our customers. These arrangement of Universal Tensile Testing Machine is utilized to test pressure, pressure, shearing power, grip, peeling power, tear strength etc. of example, semi-item and completed item in the field of elastic, plastic, metal, nylon,fabric,paper, avionics, pressing, engineering, petrochemistry, electric apparatus, automobile etc which are the essential offices for info quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection. Wire and Cable Tension Testing Machine can be acquirable at market leading rates.

Features :

  • Embracing windows stage, and all the parameter settings can be handled in the discourse box, and it works effortlessly;
  • Utilizing a solitary screen operation; don't have to switch the screen;
  • With three dialects in Simplified Chinese, Traditional Chinese and English, the product interface can be exchanged effectively;
  • The example of Test reports can be self-designated; test information can be shown straightforwardly in the primary screen;
  • Picking translational, near mode in the meantime to make various bend information examination
  • With an assortment of estimation units, Measure In Imperial and Metric are switchable;
  • With self-return and auto-revision work;
  • With programmed amplification work, to accomplish the most fitting size of the representation;
  • With the client characterized Test strategies; with test information investigation work;
  • High caliber, exact and solid models with sensible cost.

Standard :

  • ASTMD903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7.

Technical Parameters :

Capacity (optional)

5,10,50,100,200kg

Unit (Switchable)

G, KG, N, LB

Load Resolution

1/250,000

Load Accuracy

< + 0.5%

Stroke (include the grips)

800mm

Test speed

0.1~500mm/min selectable

Weight (exclude the grips)

85Kg

Operation Mode

PC or LCD

Display

PC or LCD

Motor

Servo Motor

Dimension(WxDxH)-Main Unit

570x510x1240mm

Driver

High precise ball screw

Power

single phase, 220V/ 10A or designated

Accessories

Tensile grips 1 set, one computer

Specification of principle motor

  • Motor framework: Panasonic servo engine +Panasonic servo driver +ball screw (Taiwan)+Leeming diminishment gears +synchronous belt drive
  • Control framework: a, TM2101 PC servo system,b, Back to cause naturally after the test;c, store information consequently or by manual operation
  • Data transmission:RS232
  • Computer servo framework :Desktop PC servo control pliable analyzer committed framework
  • Display modes: Windows Interface show
  • Using windows interface to test programming it can accomplish to set speed, stack, control time, Break-point extent ,much request control mode and meet distinctive test prerequisite.

Other Details :

Minimum

1 SET

Delivery

15 days after order.

Country

China

Brand Name

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF
