Programmable Universal Test Machine

Programmable Universal Test Machine

Product Details:

X

Programmable Universal Test Machine Price And Quantity

  • 1 set Unit

Programmable Universal Test Machine Trade Information

  • shenzhen
  • Cash on Delivery (COD) Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T) Western Union Paypal Delivery Point (DP) Cash Against Delivery (CAD) Days after Acceptance (DA) Cash in Advance (CID) Cheque Cash Advance (CA)
  • 20 Unit Per Month
  • 15 Week
  • Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
  • All India
  • ISO, SGS, CE

Product Description

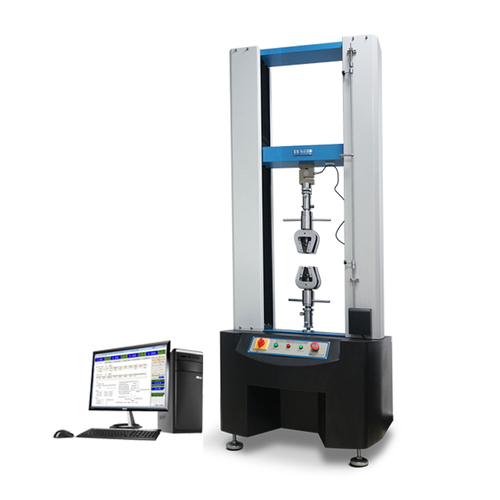

Programmable Universal Test Machine

Description:

computer universal test machine can do tensile test, tear test, peel test, bond test with different clamps for fabric,wire,rubber,steel,plastic and other kind of materials.

This universal test machine uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.

Applications:

  • Deformation under defined load: Test deformation under defined load of tested sample
  • Load under defined deformation: Test load under defined deformation of tested sample
  • Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
  • This universal test machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

Design Standard:

  • Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2
  • Bend Test ISO-178 / ASTM D 790
  • Tear Test ASTM D 624
  • Peel Test : ASTM D 3330
  • Compression Test : ASTM D 659

Specification:


Item

Description

Max. Force

5000 kg (50KN)

Load cell

Germany brand load cell for high accuracy

Control system

PC with windows 7 system

Motor

Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Stoke

1100mm including fixture

Load cell  Resolution

1/250,000

Load Precision

within -/+0.5%

Test speed

0.01 to 300mm/min (adjustable)

Software

TM 2101

Curves display

Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
